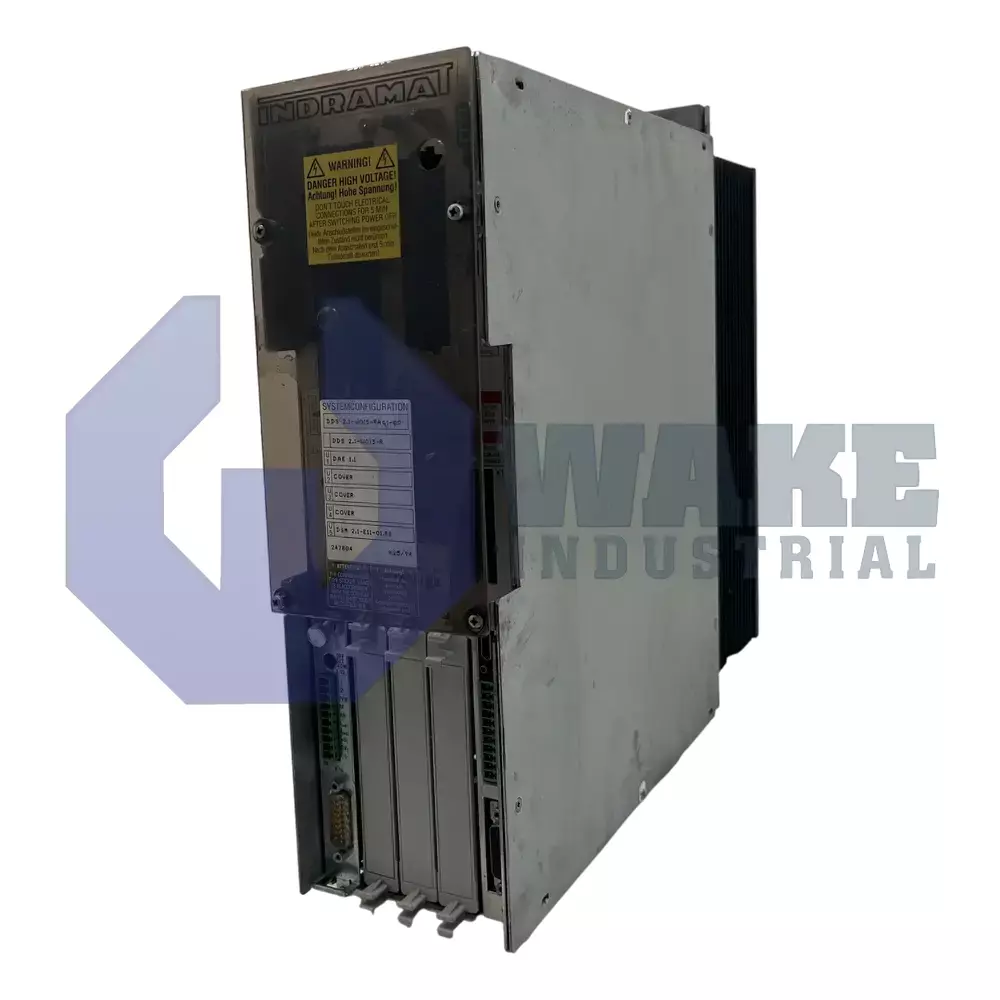

The Bosch Rexroth Indramat DDS02.1-W150-RA02-02-FW is a digital AC servo drive controller from the DDS Drive Controllers series. It features an analog communication interface and resolver feedback for motors. The unit has a rated current of 150 Amps, IP20 protection, and operates within a temperature range of 0 to 45 degrees Celsius.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DDS02.1-W150-RA02-02-FW drive controller is manufactured by Bosch Rexroth Indramat and belongs to the DDS Drive Controllers series. As a digital AC servo drive controller, it supplies regulated three-phase power to synchronous or induction servo motors used in industrial handling, packaging, and machining equipment. The unit works with higher-level motion systems so the drive can regulate speed and torque while an axis follows commanded movement under changing load conditions. It serves as the power conversion stage between incoming control commands and the motor windings, supporting repeatable motion during normal machine operation.
Its communication path uses an analog interface, so velocity or current commands can enter as ±10 V signals that the controller converts into timed gate pulses for the power stage. Thermal management relies on internal air cooling, so cabinet air moves across the heat sink instead of pulling outside air into the enclosure. The power stage is rated for a continuous output of 150 A, which requires motor cables and protective devices with suitable current capacity. The housing is rated IP20, which limits direct contact with live parts but still requires installation inside a switchgear cabinet. Operation is permitted at ambient temperatures of 0 to 45 °C and at elevations up to 1000 m above sea level. Because the cooling path remains inside the cabinet, the enclosure can be arranged without drawing shop air directly through the drive.
The feedback channel is configured for Resolver feedback, so the controller can monitor rotor position with a sensing method that remains reliable in the presence of vibration and electrical noise. For storage or shipping, the unit withstands a temperature span of -30 to 85 °C, which supports transport and warehouse storage while the drive is not energized. The controller is built as Version 1. This version marking identifies the product revision used for this model and keeps the description clear without adding duplicate specifications.
Frequently Asked Questions about DDS02.1-W150-RA02-02-FW:
Q: What type of communication interface does the DDS02.1-W150-RA02-02-FW utilize?
A: The DDS02.1-W150-RA02-02-FW drive controller uses an analog communication interface for control signal inputs.
Q: How is the DDS02.1-W150-RA02-02-FW drive controller cooled?
A: Air cooling is implemented from inside the control cabinet for thermal management in this model.
Q: What is the rated current capacity of the DDS02.1-W150-RA02-02-FW?
A: This drive controller supports a maximum rated current of 150A during operation.
Q: What is the maximum installation elevation for the DDS02.1-W150-RA02-02-FW controller?
A: The device can be installed at elevations up to 1000 meters above sea level.
Q: What type of motor feedback does the DDS02.1-W150-RA02-02-FW support?
A: Resolver feedback is used on this version for motor position and speed sensing.
