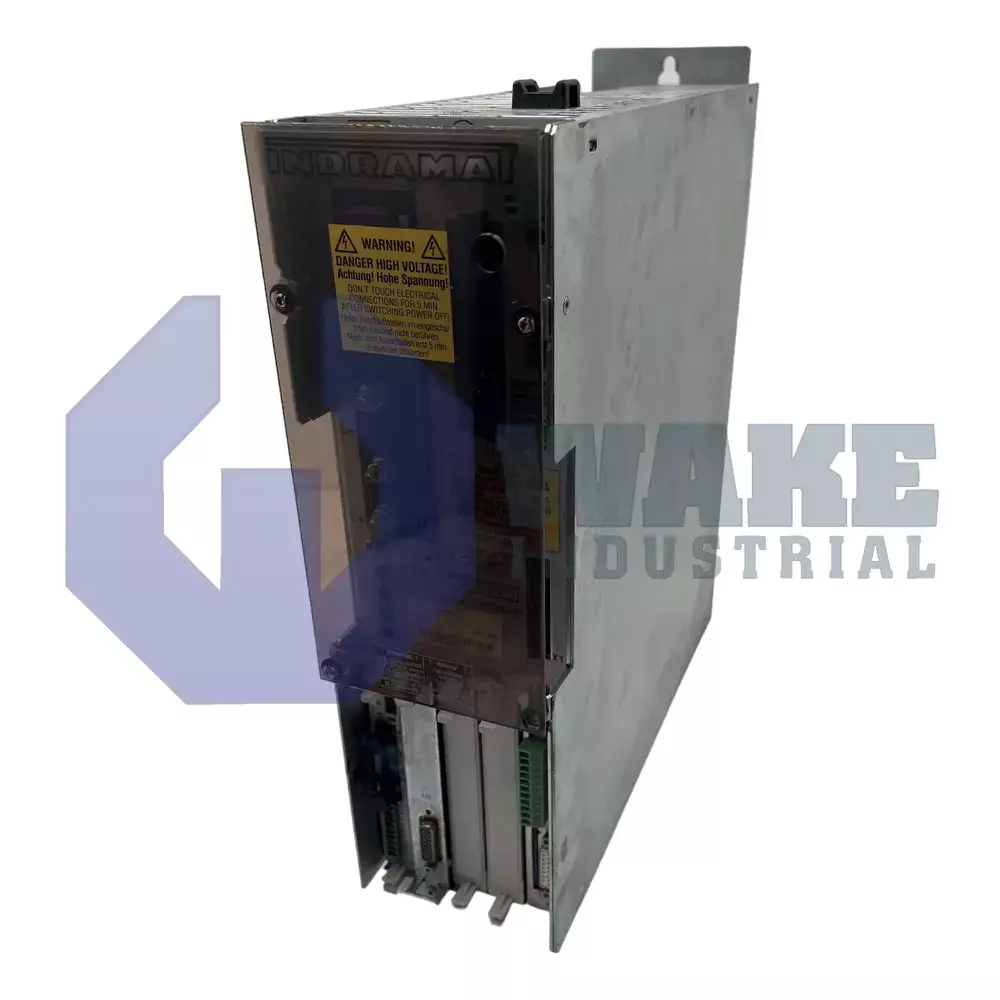

DDS02.1-W150-DS13-00 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911260035
The Bosch Rexroth Indramat DDS02.1-W150-DS13-00 is a digital AC servo drive controller from the DDS Drive Controllers series. It features a rated current of 150 Amps and uses a SERCOS communication interface with digital servo feedback. The unit operates with air cooling inside the control cabinet and has IP20 protection.
Internal Product Review
The DDS02.1-W150-DS13-00 is a digital AC servo drive controller rated for 150 A. SERCOS interface communication and digital servo feedback give the controller precise integration and consistent motion response. Internal cabinet air cooling supports stable performance, making this model a strong choice for demanding servo applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DDS02.1-W150-DS13-00 is a digital AC servo drive controller produced by Bosch Rexroth Indramat within the DDS Drive Controllers series. It controls current, velocity, and position for connected servo motors, forming the link between higher-level motion processors and electromechanical axes on automated machinery in production environments. By converting command data into regulated three-phase output, it supports coordinated handling, packaging, and metalworking applications that require deterministic response and programmable motion profiles. Its control architecture is suited to servo systems that need stable axis synchronization during indexing, transfer, contouring, and repeated start-stop motion tasks.
Motion commands reach the unit over the SERCOS interface, a fiber-optic fieldbus that supplies synchronized setpoint and diagnostic data during each servo cycle. The drive also exchanges status information with the control system, helping coordinated axes react consistently to changing load conditions and commanded speed changes. Thermal management relies on internal air cooling, so cabinet air passes across the heat sink to remove waste heat. Cabinet airflow should remain unobstructed around the heat sink and adjacent modules. The enclosure has an IP20 rating, which protects against accidental finger contact but requires installation in a closed panel where dust or fluids may be present. A continuous output capability of 150 A allows the controller to drive large torque motors, and the rated ambient range of 0–45 °C allows full current output without derating.
Feedback from the motor arrives as digital servo feedback, giving position and speed information for closed-loop regulation. That feedback arrangement supports responsive speed regulation and accurate position tracking during acceleration, steady travel, and stopping. The controller can be mounted at elevations up to 1000 m above sea level before reduced air density begins to affect cooling performance. During non-operational periods, the electronics tolerate storage temperatures from -30 to 85 °C, helping protect internal components during transport and warehousing. The controller is Version 1 and uses the corresponding design revision for this model.
