Product Description:

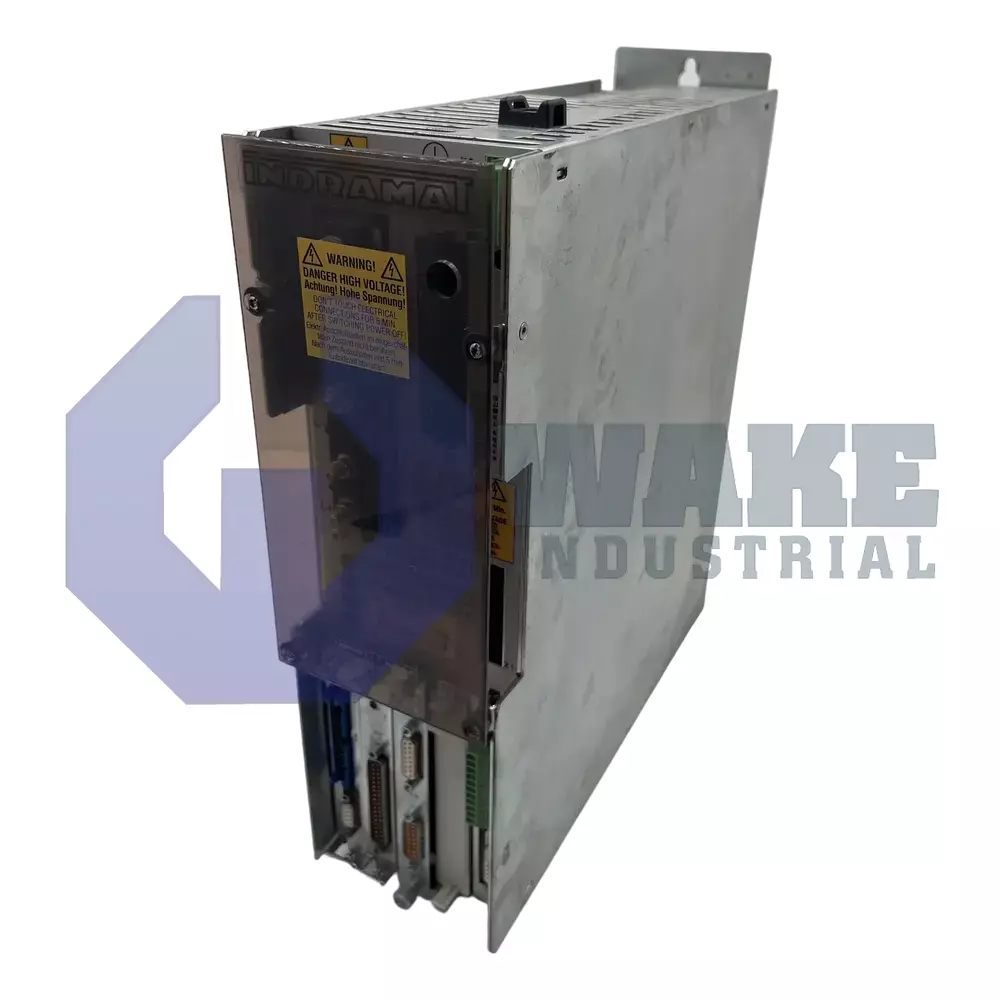

The DDS02.1-W150-DL08-01-FW is a drive controller from Bosch Rexroth Indramat in the DDS Drive Controllers series. The unit mounts in a multi-axis drive rack and works with a supply module to energize a single servo motor, serving as the power stage that carries out motion commands from the central controller in automated cells where accurate axis response is required. The product classification is Digital AC Servo Drive Controller, which means the inverter produces three-phase motor output from a DC bus and executes torque, speed, and position control digitally.

This drive is rated for a continuous output of 150 A, so the matching supply module, conductors, and cabinet distribution path must support that current without excessive voltage drop during sustained servo demand. Heat is removed by internal air cooling, so cabinet airflow must move across the heat sink fins to prevent thermal shutdown during extended operation. Feedback from the attached motor is processed through digital servo feedback, allowing high-resolution velocity and position control without analog drift and giving the drive direct encoder data for closed-loop operation. Command handling is limited to single-axis position control, so one closed loop is handled per power section while any synchronized motion remains under the host controller. The required control software is supplied as a separately ordered software subitem, allowing the application to be matched to a particular motor type, acceleration profile, or fieldbus option.

The drive reports Function ID version 01. It belongs to Line 02 within the DDS family, which places it in the second design line used for this series and aligns its mechanical format and connector arrangement with that generation of rack-mounted modules. The unit is version 1, indicating the product revision used for this model.
