Product Description:

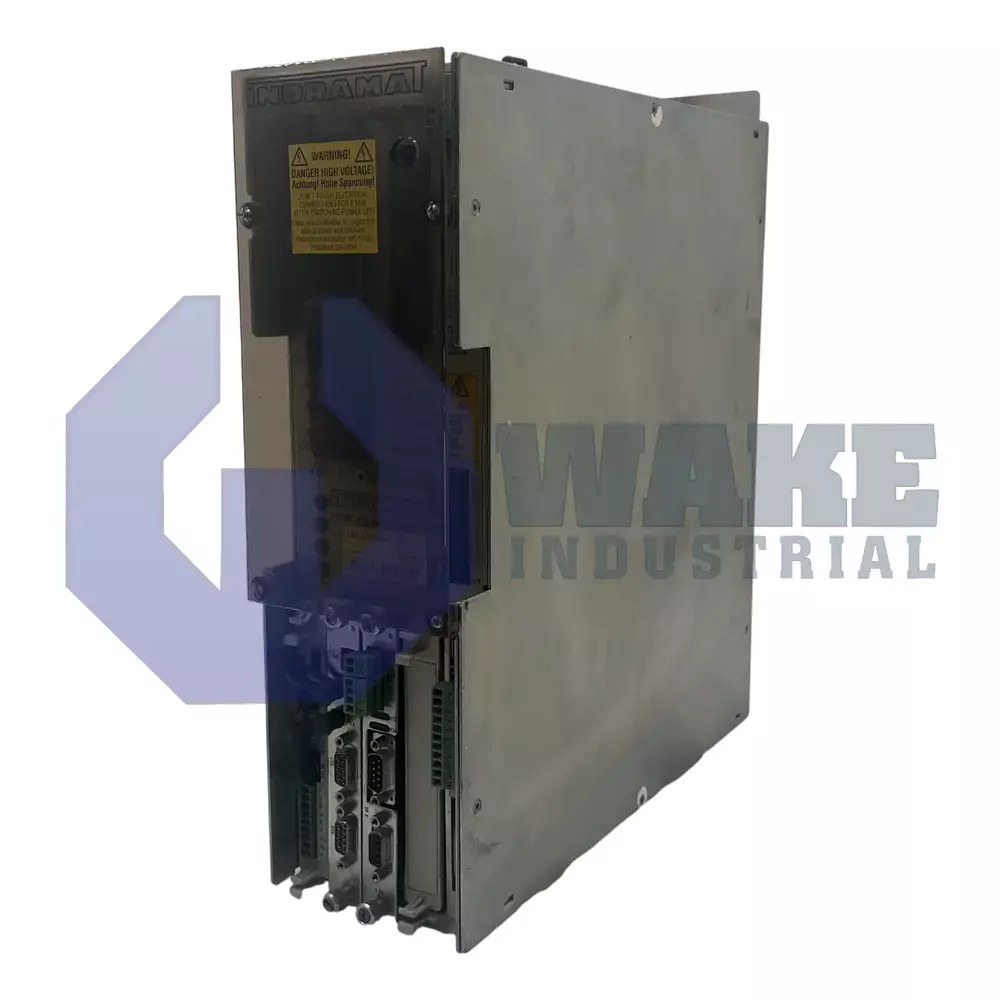

The DDS02.1-W100-DS46-02-FW is a digital AC servo drive controller built by Bosch Rexroth Indramat for the DDS Drive Controllers series. The unit conditions DC bus energy from a supply module and delivers regulated three-phase output to matched servomotors, allowing precise position, speed, and torque control in automated handling cells, printing lines, and packaging equipment housed within a control cabinet. Its modular design lets multiple axes share a common power supply and simplifies cabinet wiring in distributed factory systems. Because it is intended for cabinet installation, the controller fits multi-axis assemblies where several drives operate from the same electrical platform.

Communication with higher-level motion processors is managed over the SERCOS interface, which transports real-time setpoints and feedback over a fiber-optic ring. This arrangement supports synchronized command exchange for coordinated axis movement in automated machinery. Inside the enclosure, the drive is cooled by air drawn from the cabinet interior, eliminating external fan assemblies and keeping contaminant ingress low. The power stage is rated for a continuous output of 100 A, which is the maximum motor current the controller can supply without derating. To track motor position, the unit interprets digital servo feedback signals transmitted from the encoder, enabling tight regulation even during rapid accelerations. Protection against accidental contact is rated IP20, so the drive must be installed in a closed panel that meets industrial safety requirements.

The drive belongs to Line 02 and uses hardware version 1. Installation is supported at elevations up to 1000 m above sea level without performance correction, and sustained operation is permitted in ambient temperatures from 0 to 45 °C. When machinery is powered down for long periods or shipped, the electronics can be stored between -30 and 85 °C without loss of function. The stated altitude and temperature limits apply to normal service and storage conditions for the installed electronics.
