DDS02.1-W100-DS24-03-FW
MPN: R911268421
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days

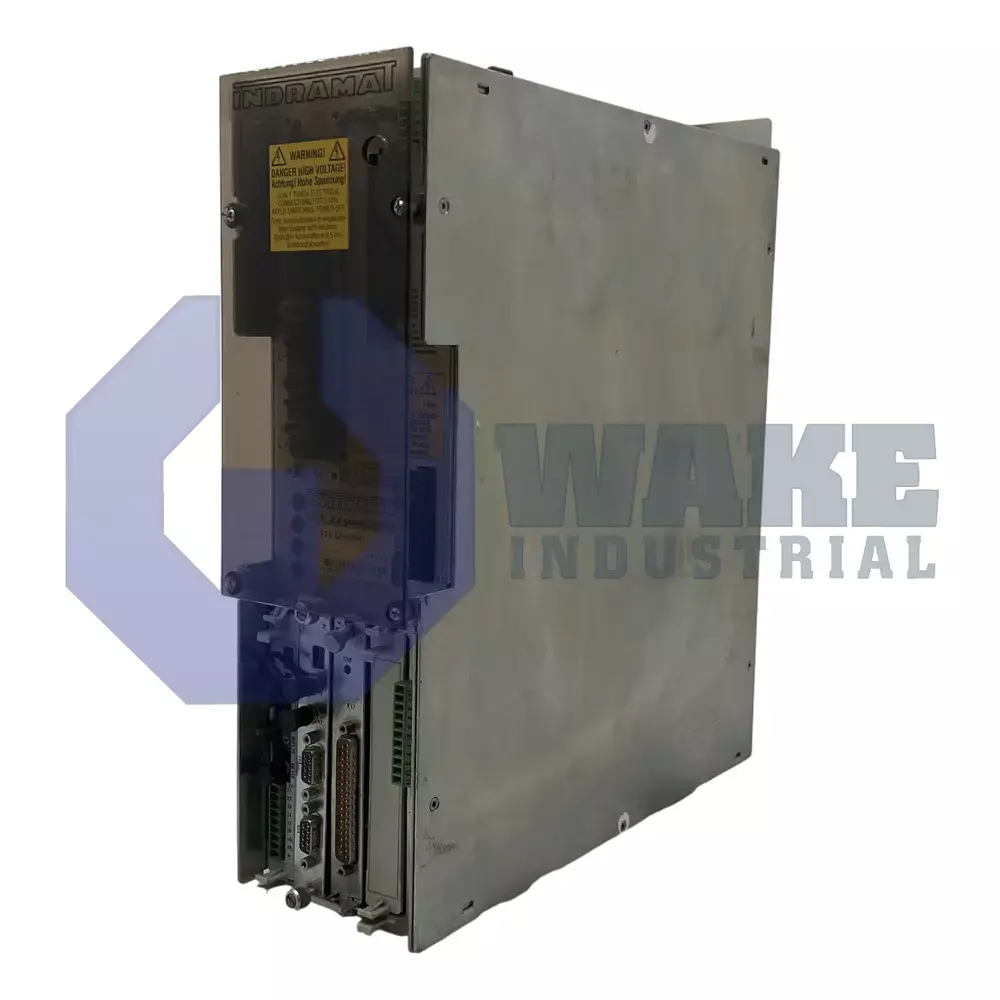

The DDS02.1-W100-DS24-03-FW drive controller boasts a rated current of 100 amps, IP20 protection, internal air cooling, and support for resolver and encoder feedback. Part of the DDS Drive Controllers series by Bosch Rexroth Indramat, it features SERCOS or Analog communication and is compatible with Indramat AC Servo Motors like the MDD and MKD series.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DDS02.1-W100-DS24-03-FW is a Drive Controller unit. It is manufactured by Bosch Rexroth Indramat to serve industrial automation. This unit belongs to the Digital Drive System or DDS product series. The controller is part of the DDS02 line, version 1 hardware generation. The rated current capacity of the unit is 100 amperes maximum.
The DDS02.1-W100-DS24-03-FW drive controller delivers a continuous current of 40 amperes during normal operation. The device can handle peak currents up to 100 amperes for a short time. It is cooled using internal cabinet air circulation with heat dissipation. Cooling air is managed so that 80 percent stays inside the cabinet. The DDS02.1-W100-DS24-03-FW drive controller supports SERCOS communication interface. This interface operates via a fiber optic connection provided at the X1 port. The DC bus voltage is 300 volts with a tolerance of ±15 percent. The product supports only the Digital Servo Feedback motor feedback type. It includes a software module with type DSM02.1-FW in the U5 slot. The slots U1 to U4 allow plugin modules for control and encoder options. The function ID is 24, and the version is 03 as defined internally. The firmware for this unit must be ordered separately from the main device.
The DDS02.1-W100-DS24-03-FW drive controller consumes approximately 13 watts for signal processing operations. The permitted operating temperature is from +5 to +45 degrees Celsius. This device can be used up to 1000 meters without performance loss. The humidity level must stay below 95 percent without condensation forming inside. Its protection rating is IP10 when installed according to guidelines. The controller offers vibration tolerance of 0.15 mm in the 10–57 Hz range. The unit requires permanent grounding due to discharge current over 3.5 mA. The weight of the controller lies between 6.5 and 7.5 kilograms.
Frequently Asked Questions about DDS02.1-W100-DS24-03-FW:
Q: How do U1 to U4 slots in DDS02.1-W100-DS24-03-FW improve flexibility?
A: These slots allow users to add encoder and control modules, supporting application-specific configurations and hardware adaptability.
Q: Why is permanent grounding required for DDS02.1-W100-DS24-03-FW?
A: Grounding is essential due to leakage currents over 3.5 mA, preventing electrical hazards and ensuring operational safety in industrial setups.
Q: Why does DDS02.1-W100-DS24-03-FW use fiber optic SERCOS?
A: Fiber optic SERCOS ensures noise immunity and high-speed real-time data transmission, essential for synchronized motion control in industrial setups.
Q: What benefits does the IP10 rating offer in DDS02.1-W100-DS24-03-FW?
A: The IP10 rating protects against solid objects above 50 mm, making it suitable for controlled environments with minimal ingress risk.
Q: How does the DSM02.1-FW module enhance control in DDS02.1-W100-DS24-03-FW?
A: The DSM02.1-FW software module allows parameter management and diagnostics, increasing flexibility in configuring control functions for diverse applications.
