Product Description:

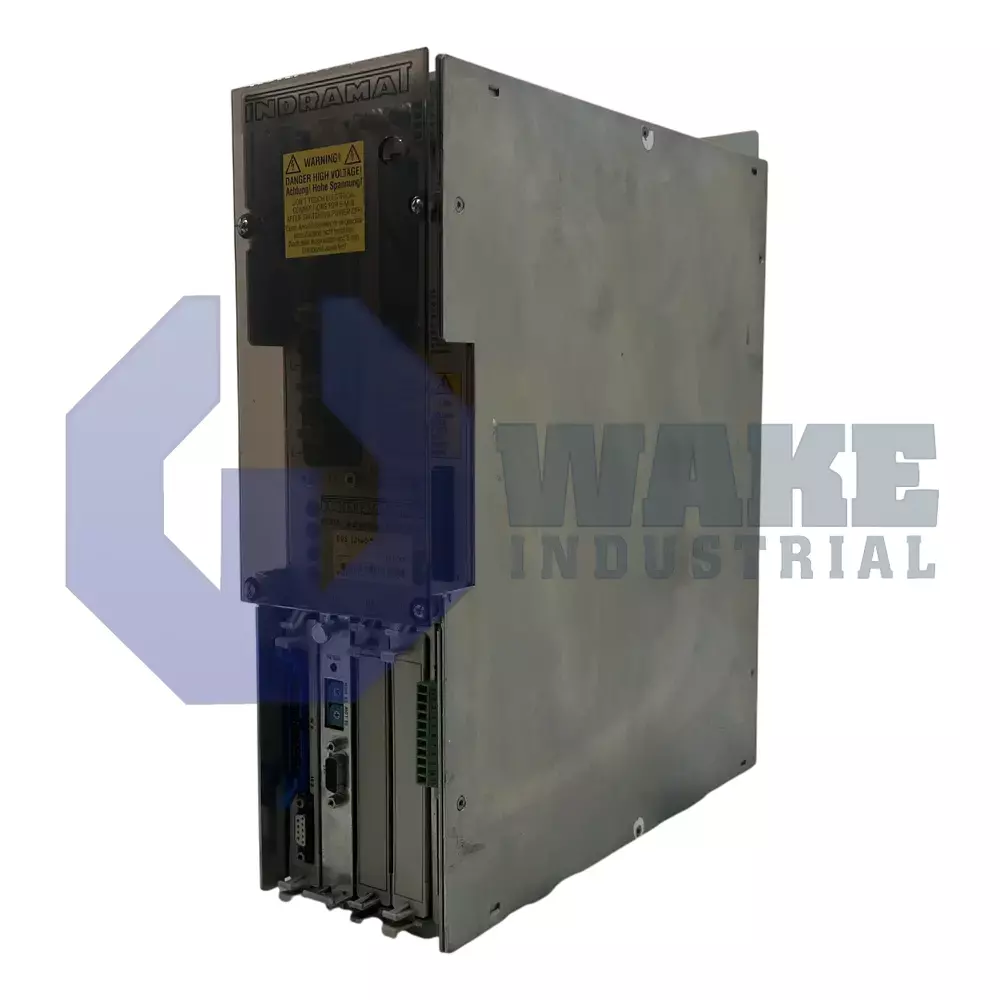

The DDS02.1-W100-DL40-01-FW is a digital AC servo drive controller built by Bosch Rexroth Indramat for the DDS Drive Controllers series. It converts command data from a higher-level control into regulated current for a compatible servo motor. This allows packaging lines, pick-and-place systems, and other automated stations to control torque, speed, and position on a single axis. Its role is to supply modulated power while maintaining the closed-loop response needed for repeatable motion during continuous machine cycles.

The drive is rated for continuous output of 100 A, so wiring and protective devices must match that load. Its enclosure has an IP20 rating, which protects against accidental finger contact with live parts but still requires installation inside a cabinet. Heat is removed by internal air cooling, so thermal management depends on airflow inside the control cabinet rather than outside air movement. The permitted ambient operating range is 0 to 45 °C, which allows use beside other power electronics when cabinet ventilation is adequate. Command and diagnostic data are exchanged over SERCOS for single-axis position control, allowing the controller to coordinate one motion axis with the higher-level system.

Position control is closed through digital servo feedback, so the motor returns electronic feedback signals directly to the drive. That feedback arrangement helps the controller maintain stable motion during acceleration, deceleration, and steady-speed operation. Installations up to 1000 m above sea level require no derating under normal conditions. For storage, the electronics tolerate temperatures from -30 to 85 °C, which supports transport and warehousing through wide seasonal changes. The unit uses Function ID Version 01, which identifies the assigned function set for this controller.
