DDS02.1-W050-RS18-02-FW
MPN: R911277755
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today

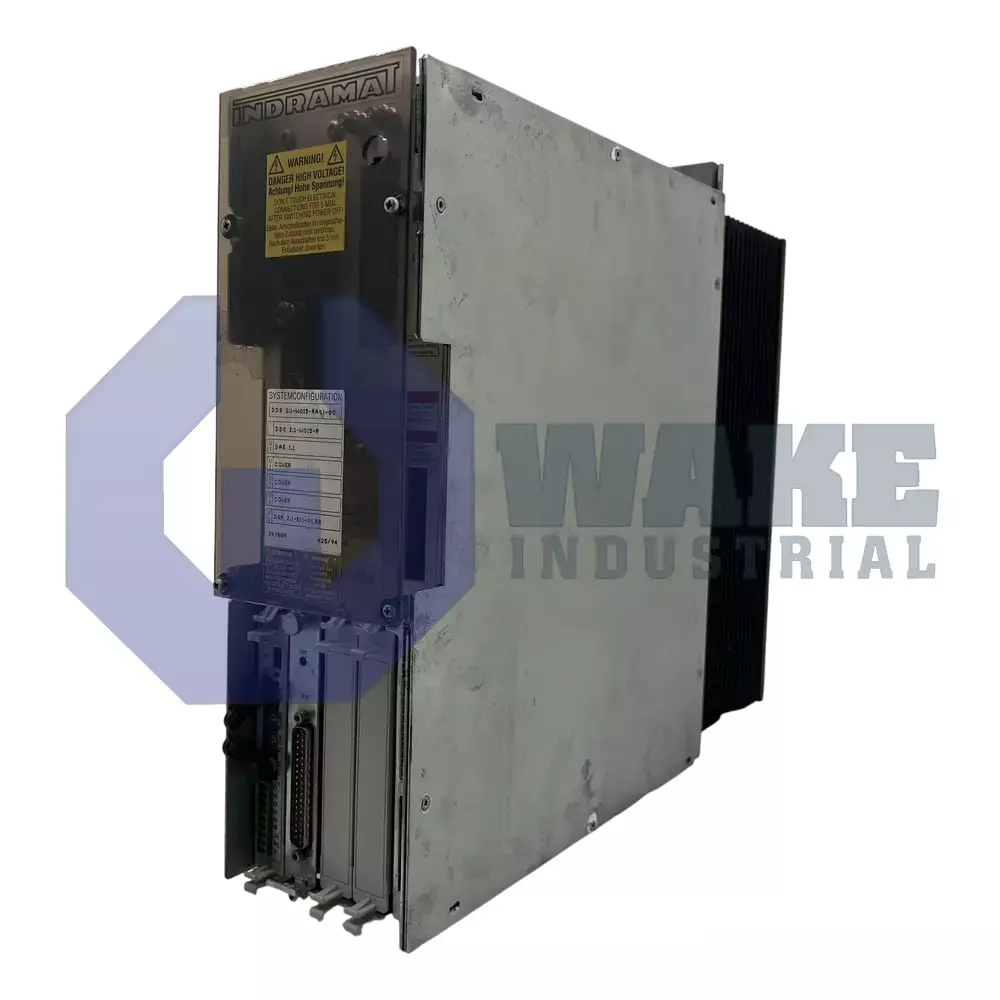

The DDS02.1-W050-RS18-02-FW drive controller is an AC servo drive with a continuous current of 50 amps, an RS resolver feedback interface, and internal air cooling using a built-in fan. Part of the DDS Drive Controllers series by Bosch Rexroth Indramat, it has a rated DC bus voltage of 300 VDC.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch unit DDS02.1-W050-RS18-02-FW drive controller controls feed axes in CNC milling and turning machines by using accurate tool movement and material processing. Bosch's innovative designs demonstrate standard engineering practices with safety systems that give efficient performance globally.
The DDS02.1-W050-RS18-02-FW drive controller uses a SERCOS interface with smooth digital linkage between drives and control systems over fiber optic cables for industrial automation tasks. Its resolver feedback works on the principle of sensor which deals with a phase transformer of angle-dependent coupling ratio to maintain constant position tracking and agent stability in dynamic environments. It supplies continuous position information by detecting angular position as a change in magnetic field which helps in closed-loop control in servo applications. The inclusion of a software module increases the capacity of the drive to deal with movement patterns and the command communication module increases the processing of the operating instructions. Other plug-in modules have an extended functional scope that can be customized toward different industrial requirements. In order to secure the inner components a transparent protective cover is placed but without any visual obstructions to observations and diagnostics.
The DDS02.1-W050-RS18-02-FW drive controller has a maximum position resolution of 24,576 increments per revolution capable of precise control in all directions through a complete rotation. It can be used with system accuracy of up to +/- 7 angular minutes which is essential in precise rotation with coordinated motion applications. As a 50 A continuously rated unit, it can provide reliable power throughput ideal in medium power load operation. It is a Series 2 model that exhibits outstanding protection by withstands up to 95% humidity without a performance setback.
Frequently Asked Questions about DDS02.1-W050-RS18-02-FW:
Q: How accurate is the positioning in DDS02.1-W050-RS18-02-FW drive?
A: This drive provides system accuracy within ±7 angular minutes, ideal for fine motion control in feed axis operations.
Q: Which sensor feedback type is supported by DDS02.1-W050-RS18-02-FW?
A: It supports resolver feedback, ensuring continuous and reliable shaft position monitoring for precise servo control.
Q: Can DDS02.1-W050-RS18-02-FW handle moisture-rich environments?
A: Yes, the unit is built to operate in up to 95% humidity, maintaining stable performance in harsh industrial environments.
Q: What is the current rating of DDS02.1-W050-RS18-02-FW?
A: The drive delivers a continuous output current of 50 A, suitable for medium-duty axis drive systems.
Q: Is there any protective covering on DDS02.1-W050-RS18-02-FW?
A: A transparent protective cover is included for safe handling and easy visual inspection of internal modules.
