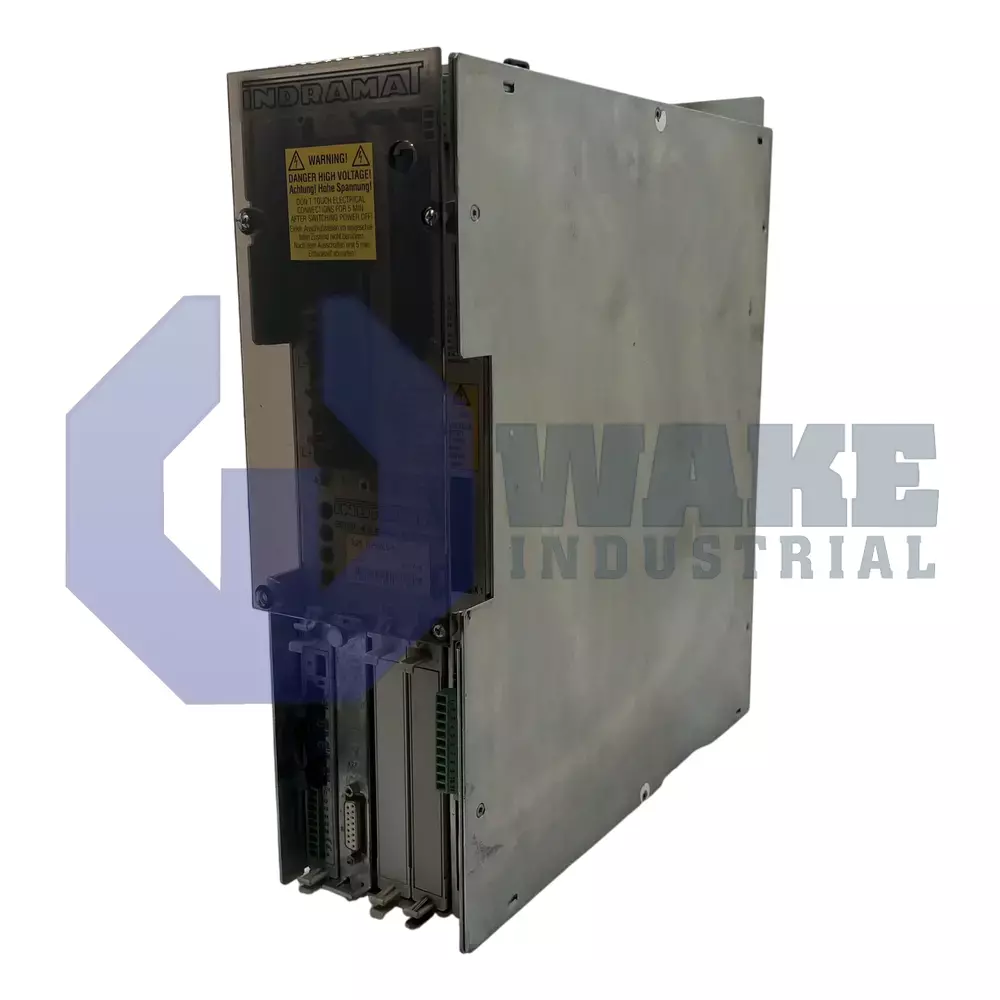

DDS02.1-W025-DS03-00 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911247289
The Bosch Rexroth Indramat DDS02.1-W025-DS03-00 is a digital AC servo drive controller from the DDS Drive Controllers series. It features a SERCOS communication interface and supports digital servo feedback for motor control. The controller has an IP20 protection category, a rated current of 25 Amps, and operates within a temperature range of 0 to 45°C.
Internal Product Review
The DDS02.1-W025-DS03-00 is a digital AC servo drive controller that delivers confident performance at 25 A rated current. SERCOS interface support and digital servo feedback provide precise integration for coordinated motion applications. IP20 protection and internal cabinet air cooling make the controller a dependable choice for well-managed industrial enclosures.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat’s DDS02.1-W025-DS03-00 is a drive module from the DDS Drive Controllers series. As a digital AC servo drive controller, it sits between the motion-control PLC and the servo motor, converting low-level position or velocity commands into precise current and voltage patterns. Within an industrial automation cell, it regulates dynamic axes such as pick-and-place gantries, rotary tables, and material-handling stations, ensuring closed-loop motion while coordinating with adjacent drives over a fiber-optic bus. The design supports modular racks where several drives share a common supply.
The controller communicates with the master via the SERCOS interface, a deterministic fiber-optic network that carries real-time axis commands and parameter data. Position data from the motor is returned through digital servo feedback, allowing the current loop to react within microseconds. Its power stage delivers a continuous output of 25 A, enough to drive mid-frame motors used in handling or packaging machinery. Thermal losses are removed by internal air cooling; cabinet air passes over the heat sink so no external fan shroud is required. An IP20 protection category means live parts are finger-safe, but the unit must be installed inside a sealed electrical enclosure. The device is cataloged under line designation 02, maintaining pin-compatible geometry with other members of the DDS series.
The permitted ambient range is 0 – 45 °C during operation and -30 – 85 °C during storage or shipment, so the drive can tolerate unconditioned warehouse transit and still operate in standard control rooms. Performance remains unchanged up to 1000 m above sea level, although higher elevations may require derating. The drive is Version 1 and uses the DS03 option slot for the SERCOS interface module.
