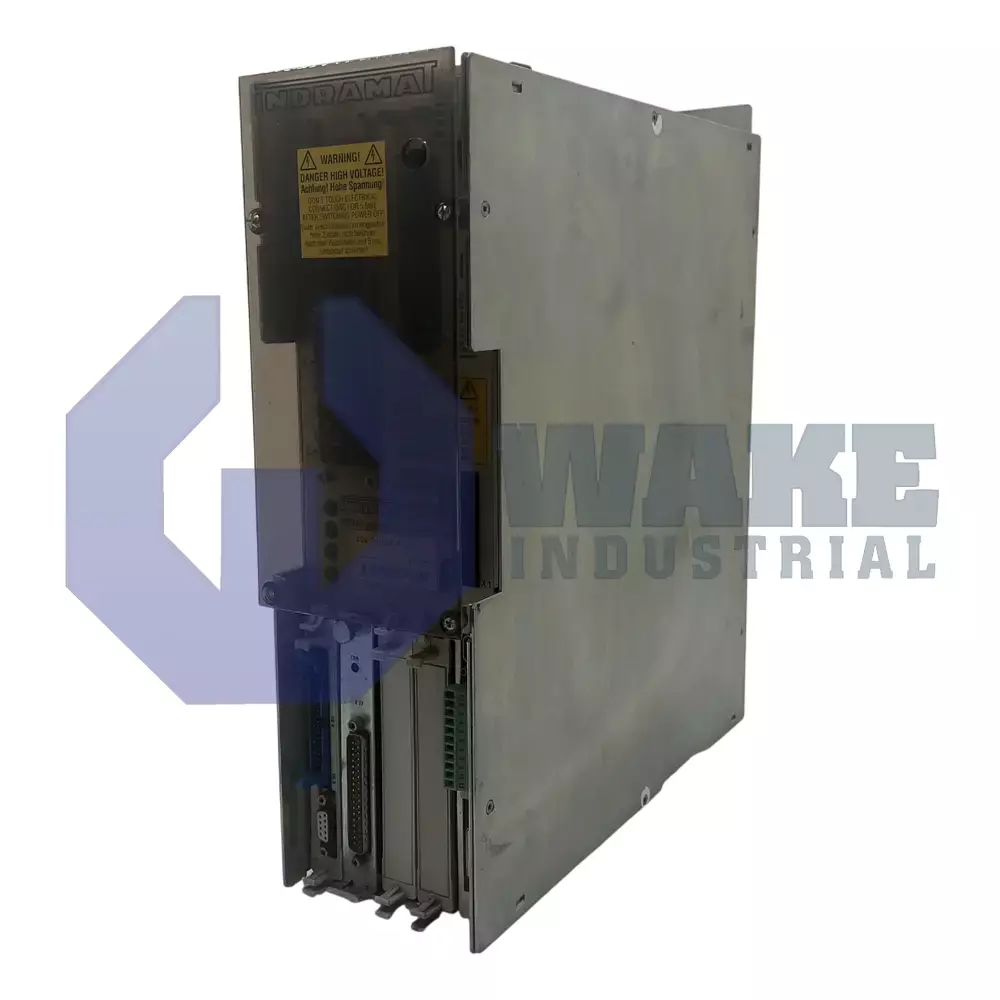

DDS02.1-W025-DL01-01-FW
MPN: R911266564
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today
The DDS02.1-W025-DL01-01-FW drive controller offers continuous output current of 25 amps, IP20 protection class, and internal cooling with integrated fans. Part of the DDS Drive Controllers series by Bosch Rexroth Indramat, it is compatible with Rexroth AC servo motors and requires a separate firmware module.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DDS02.1-W025-DL01-01-FW is a digital AC servo drive controller that belongs from the modular DDS02.1 drives series designed by Bosch Indramat. It has a current rating of 25 A and the drive comes with internal air cooling of heat technology. This controller drive is made to be installed in a control cabinet vertically with adequate airflow within the cabinet.
The DDS02.1-W025-DL01-01-FW drive controller has a DC bus voltage of 300 VDC ±15 %. It draws 150 mA on each +15V and -15V lines while its current draw is 500 mA on the + 24V line. The DDS02.1 drive offers single-axis positioning through the module installed in slots U1. It allows up to 3000 program blocks in motion programming and each program block represents one motion sequence. The digital I/O module is contained in slot U2, this module has 15 inputs and 16 outputs to interface externally. The DDS02.1 drive features a software module DSM02.1-FW that contains firmware and drive parameters to enable easy replacement without the need of reprogramming, it is fitted in Slot U5. This controller drive is only compatible with digitally servo-feedback motors and with DIAX02 Bosch system.
The DDS02.1-W025-DL01-01-FW drive controller can be used in an ambient temperature that ranges from 273.15 K to 318.15 K and it can permit up to 328.15 K with derated operations. While the temperature range of storage and transport is 243.15 K to 358.15 K. The altitude limit of installation is up to 3300 ft above the sea level and without condensation the highest relative humidity is 95%. The DDS02.1 control drive is IP20 protective from external intrudes and it permits industrial cabling that is EMC compliant and shielded.
Frequently Asked Questions about DDS02.1-W025-DL01-01-FW:
Q: What role does the DSM02.1-FW software module play in the DDS02.1-W025-DL01-01-FW?
A: The DSM02.1-FW software module stores essential firmware and drive parameters. It ensures easy replacement of the drive without reprogramming, saving time and reducing maintenance efforts.
Q: How does the DC bus voltage specification of 300 VDC +/-15% impact the performance of DDS02.1-W025-DL01-01-FW?
A: The 300 VDC +/-15% DC bus voltage ensures stable and efficient power delivery to the servo drive. It allows the controller to handle a variety of motor types and configurations effectively within this voltage range.
Q: Why is the DDS02.1-W025-DL01-01-FW designed to be installed in a vertical position?
A: The vertical installation enhances airflow, optimizing the internal air cooling system. This setup ensures better heat dissipation and improves the overall reliability and longevity of the drive under operational conditions.
Q: How does the internal air cooling technology affect the DDS02.1-W025-DL01-01-FW’s performance?
A: The internal air cooling technology prevents overheating by maintaining optimal operating temperatures. This enhances the drive’s efficiency, preventing thermal damage during high-demand operations.
Q: What advantage does the IP20 protection rating provide for the DDS02.1-W025-DL01-01-FW?
A: The IP20 rating offers protection against solid objects greater than 12mm, ensuring the drive remains safe from dust and debris in industrial environments. However, additional enclosures are recommended in harsh conditions for optimal protection.
