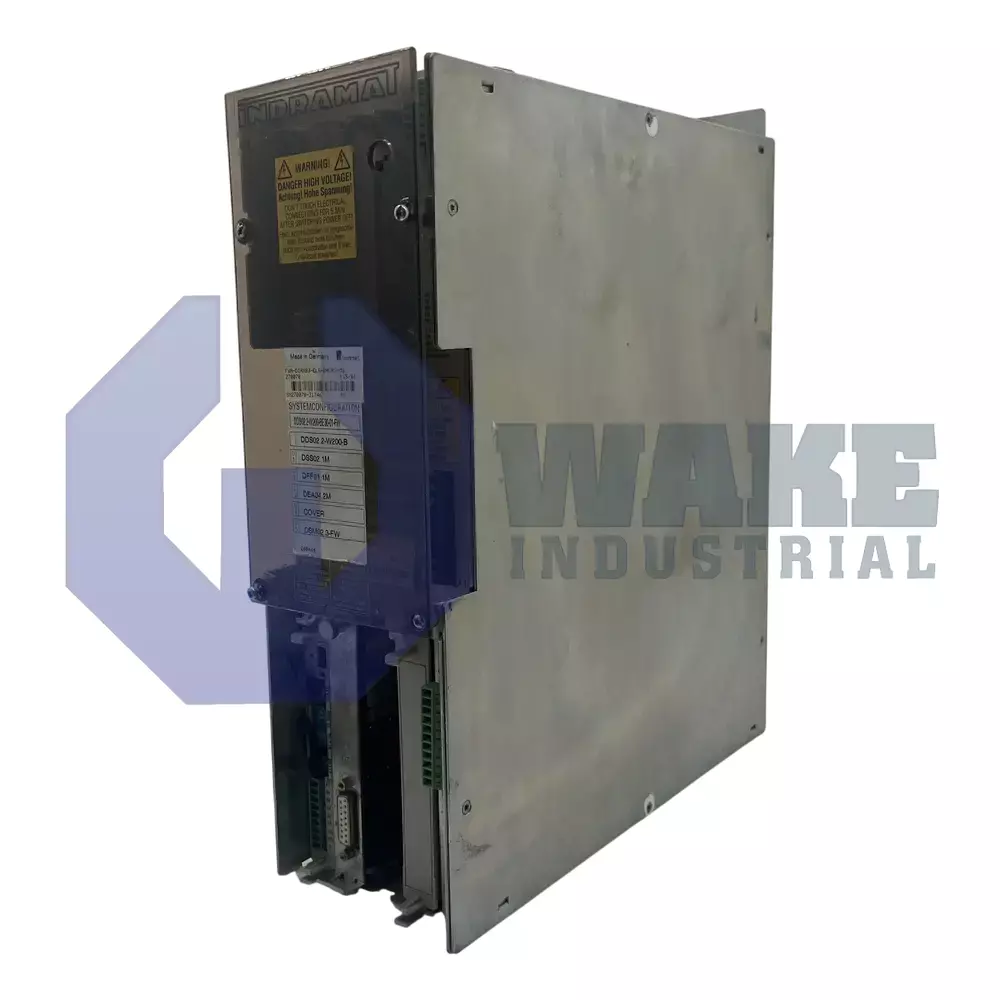

DDS02.1-W015-DS13-01-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911288463
The Bosch Rexroth Indramat DDS02.1-W015-DS13-01-FW is a digital AC servo drive controller from the DDS Drive Controllers series. It features a SERCOS communication interface and provides digital servo feedback for motor control. This model is rated for 15 Amps of current and uses internal air cooling inside the control cabinet.
Internal Product Review
The DDS02.1-W015-DS13-01-FW digital AC servo drive controller from Bosch Rexroth Indramat features a SERCOS communication interface and digital servo feedback for precise motion control. With air cooling from inside the control cabinet and a rated current of 15A, this controller performs reliably in demanding automation environments. It stands out for its dependable operation and integration flexibility.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The DDS02.1-W015-DS13-01-FW is manufactured by Bosch Rexroth Indramat as part of the DDS Drive Controllers series. This unit is a digitally regulated AC servo drive controller that coordinates power conversion and closed-loop control for Indramat synchronous or induction servo motors used in material-handling, packaging, and general motion platforms. Installed on a mounting rail inside a control cabinet, it forms a modular axis together with a supply unit so that motion commands from the host CNC or PLC are executed with consistent torque, speed, and position accuracy during industrial operating cycles.
The drive exchanges real-time setpoint and diagnostic data over the SERCOS interface, allowing deterministic communication with compatible master controllers. Continuous motor current is limited to 15 A, which is the thermal load the power section can support without derating when cabinet temperatures remain within the allowed range. Heat generated by switching devices is removed through internal cabinet air cooling, so the unit relies on airflow within the enclosure rather than on external blowers. Rotor position is read with digital servo feedback, so phase currents are aligned electronically to the magnetic field during each control cycle. The controller is classified as a Digital AC Servo Drive Controller, meaning the current, speed, and position loops are processed digitally rather than by analog circuitry.
The operating code is supplied as a separate firmware subitem, so the required software package can be selected independently of the base unit. The unit uses Function ID version 01, and this setting determines the compatible parameter structure for the controller. The device belongs to Line 02 and is built to hardware version 1, which keeps its form factor and electrical layout consistent with adjacent modules in the same platform.
