DDS02.1-A100-DL41-01-FW
MPN: R911297848
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today

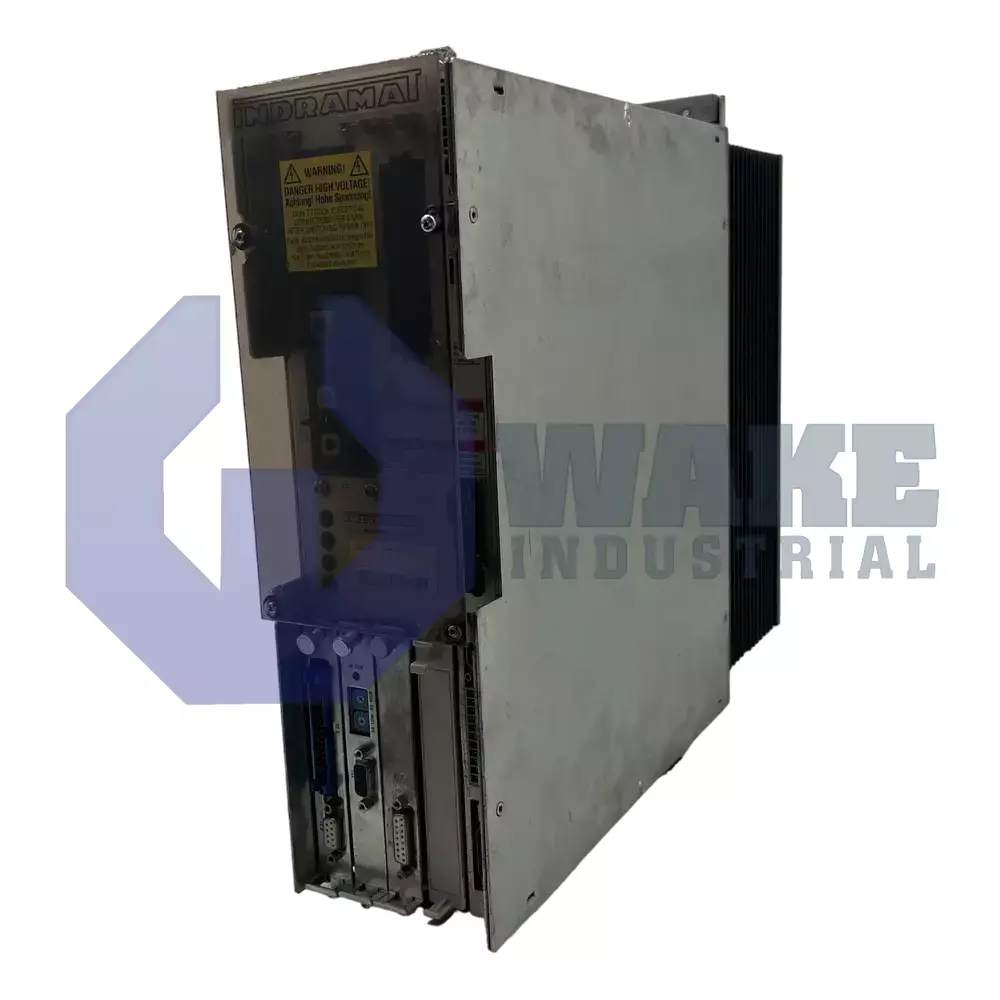

The DDS02.1-A100-DL41-01-FW drive controller features a rated current of 100A and internal air cooling. Manufactured by Bosch Rexroth Indramat, it is part of the DDS Drive Controllers series and supports SERCOS fiber optic communication. This device is IP20 rated and weighs approximately 11kg.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The Bosch Rexroth Indramat's DDS02.1-A100-DL41-01-FW is a digital AC servo drive controller. It is designed to ensure precision and dependability in industrial automation systems. The controller combines high-power performance with excellent thermal management.
The Bosch Rexroth DDS02.1-A100-DL41-01-FW has a cooling type A setup. Air cooling is achieved using external airflow and cold technologies. It has a rated continuous current of 80 A. The maximum current capability is up to 100 amps. The DC bus voltage is 300 volts, ± 15%. It features digital servo feedback and enables for flexible module configuration. It includes the DLC01.1 single-axis positioning module in slot U1. Slot U2 contains the DPF02.1 plugin module which adds new features. U3 is equipped with the DEF01.1 incremental position interface. Slot U4 is covered and does not contain any modules. DSM02.1-FW firmware has been installed in U5. This unit is part of the trusted DDS Drive Controllers series. It can withstand up to 95% relative humidity in non-condensing environments. The absolute humidity limit is 25 g/m³. According to the EN 60529 requirements the protection category is IP20. Mounting is vertical only with an 80 mm clearance at the top and bottom. The product measures 390 mm tall, 90 mm broad and 205 mm deep. The usual weight including modules is around 10.5 kg. The storage temperature is between -30°C and +85°C. The device is intended for use at heights up to 1000 meters above sea level.
The DDS02.1-A100-DL41-01-FW provides high-precision motion control. device must be placed on a grounded and conductive panel. This controller consumes around 730 mA at +24V DC. It can draw 150 mA from both +15V and -15V DC. Under normal conditions the working temperature range is 0°C to +45°C. It supports derated performance up to +55°C. This DDS02.1 series device performs consistently in tough conditions. Bosch Indramat ensures that its components meet industry specifications.
Frequently Asked Questions about DDS02.1-A100-DL41-01-FW:
Q: What is the role of the DLC01.1 module in this controller?
A: The DLC01.1 module in DDS02.1-A100-DL41-01-FW enables single-axis positioning control. This enhances motion precision in automated machinery.
Q: Why is the DDS02.1-A100-DL41-01-FW equipped with incremental position interface DEF01.1?
A: DEF01.1 provides accurate position tracking for servo applications. It is essential for systems requiring detailed motion feedback.
Q: How does the DSM02.1-FW firmware contribute to system performance?
A: DSM02.1-FW optimizes drive communication and signal processing. It supports efficient coordination between modules in DDS02.1-A100-DL41-01-FW.
Q: Why is vertical mounting necessary for this unit?
A: Vertical orientation ensures proper airflow and heat dissipation. It helps maintain optimal thermal performance for DDS02.1-A100-DL41-01-FW.
Q: What is the function of the DPF02.1 plugin module in slot U2?
A: DPF02.1 allows additional control or monitoring capabilities. It supports custom application configurations in the DDS02.1-A100-DL41-01-FW.
