Product Description:

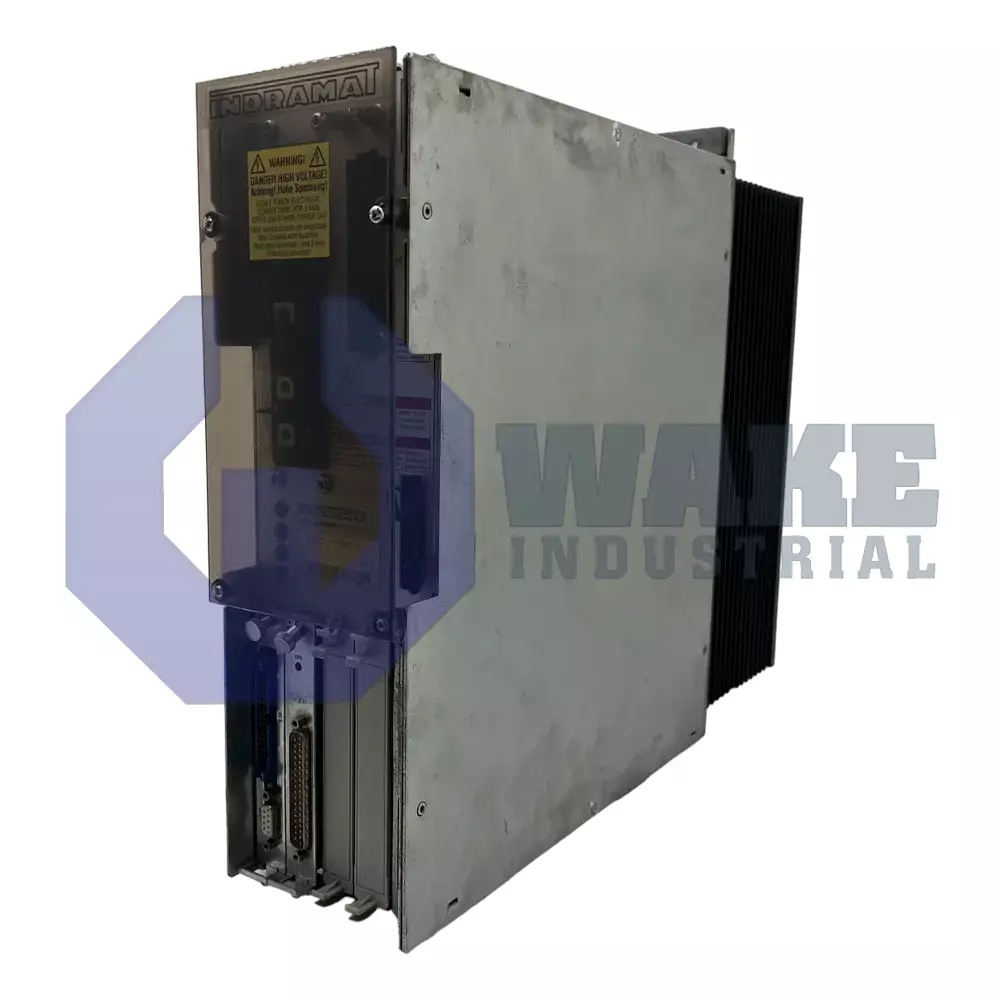

The DDS02.1-A100-DL01-00 is a digital AC servo drive controller from Bosch Rexroth Indramat in the DDS Drive Controllers series. As a drive controller, it supplies regulated three-phase power to a compatible servo motor and manages the closed-loop functions needed for accurate axis movement in automated machinery. It is suited for applications such as handling equipment, production stations, and machine tools where controlled acceleration and repeatable positioning are required. In motion systems, it coordinates torque, speed, and position so the axis can follow commanded motion with consistent performance. The unit is part of Line 02 and is version 1 for this release.

This controller delivers up to 100 A of continuous output current, allowing it to drive medium-to-large synchronous motors without saturating the power stage. Thermal management relies on external air cooling, so the cabinet draws outside air through the heat sink instead of releasing drive losses into the rack interior. This arrangement helps limit heat buildup around neighboring modules in dense control cabinets. The IP20 enclosure provides finger protection for live parts, so the unit is intended for installation inside a switchgear cabinet. The controller operates in ambient temperatures from 0 - 45 °C. Command data are handled through a single-axis position control interface, allowing the host PLC to send target positions directly to the drive for dedicated axis regulation.

Feedback from the motor is supplied as digital servo feedback, so encoder data is processed internally for real-time current and velocity control. This feedback method supports fast correction of speed changes and position deviation during operation. The drive can be installed at elevations up to 1000 m without derating, which suits most plant locations. During transport or storage, it tolerates ambient temperatures from -30 to 85 °C. The unit carries Function ID 01, which identifies the assigned function set for this drive.
