CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW

  • Rated 4.5 (32 total ratings)
  • MPN: R911331447
  • Call for Expedited Shipping and Product Condition Options
The CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW Advanced Control System is manufactured by Bosch Rexroth Indramat. This system operates with a CANopen/DeviceNet master communication configuration, its primary encoder option is EnDat 2.1/1 Vpp/TTL and it has two analog ouputs.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW

  • Rated 4.5 (32 total ratings)
  • MPN: R911331447
  • Call for Expedited Shipping and Product Condition Options
The CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW Advanced Control System is manufactured by Bosch Rexroth Indramat. This system operates with a CANopen/DeviceNet master communication configuration, its primary encoder option is EnDat 2.1/1 Vpp/TTL and it has two analog ouputs.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

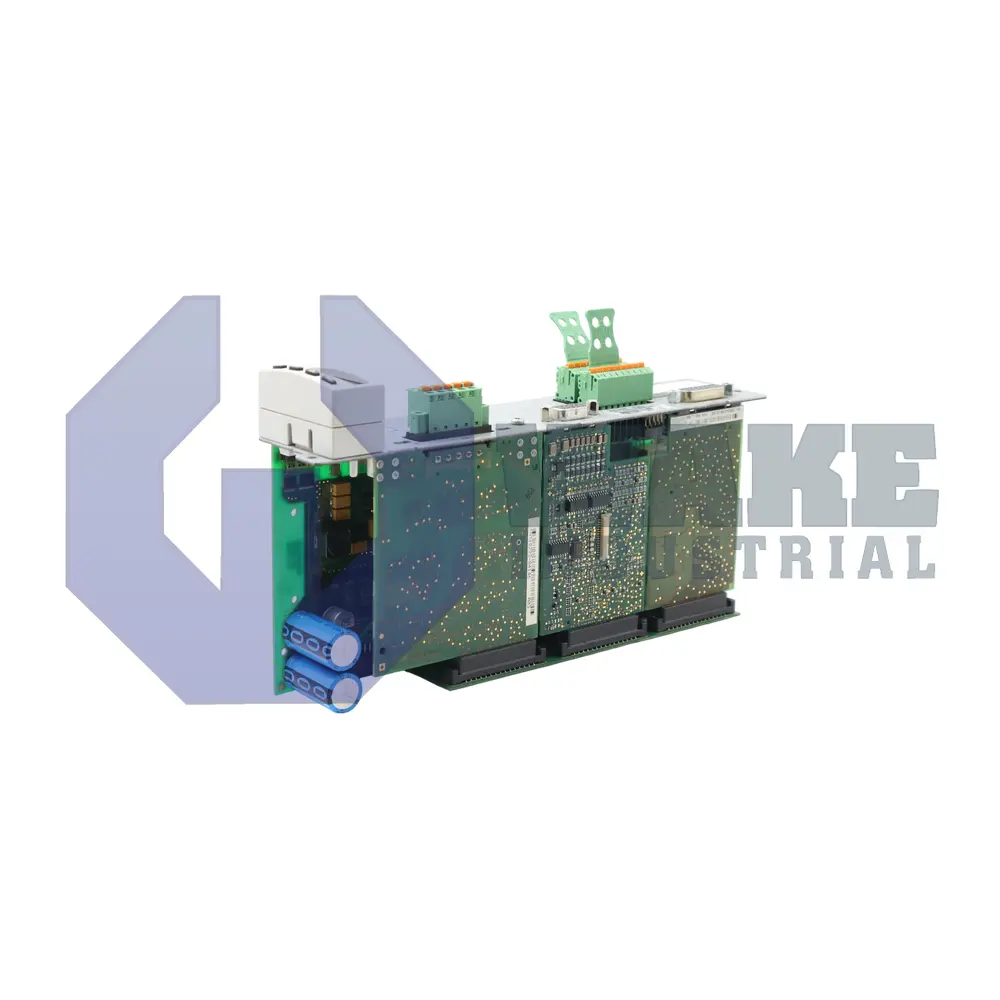

The CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW is a control section for Bosch Rexroth IndraDrive controllers. Even through the control section is usually delivered as part of a completely assembled drive controller, it can be ordered separately. Control sections ordered separately should only be mounted or dismounted by properly trained personnel. The maximum number of times that a control section can be mounted or dismounted from a drive controller is 20. The control section or power section can be damaged by excessive mounting / dismounting. The CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW supports options including encoder with EnDat 2.1 interface and the safe motion safety option. The control sections can also be ordered with other safety options such as safe torque off, starting lockout and safety technology I/O. An integrated RS-232 interface on the control panel can be used for configuration and parameterization during drive commissioning.

The control section also supports a CANopen/DeviceNet interface. Control sections can also be ordered with Ethernet and SERCOS interfaces. The controller firmware has to be ordered separately. The control panel on the unit is standard. Height of the CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW is 241 millimeters, the width is 49.5 millimeters and the depth is 103 millimeters. A memory card slot is located on the front panel of the CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW. The physical interfaces for the serial port, analog I/O and digital I/O are also located on the front panel. The CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW control section plugs into the power section of the drive. There is a risk of damage to the control section and interference with its operation caused by electrostatic charges. Therefore any exposed conductive parts coming into contact with the control section must be discharged through grounding. The CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW control section should only be stored and transported inside conductive packaging.

CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW Documents

  • CSH011CCOEN2NNNNNNS2SNNFW
  • CSH01 1C CO EN2 NNN NNN S2 S NN FW
  • csh01.1c-co-en2-nnn-nnn-s2-s-nn-fw

CSH01.1C-CO-EN2-NNN-NNN-S2-S-NN-FW Technical Specifications

Analog Outputs: 2
Master Communication: CANopen/DeviceNet
Primary Encoder Option: EnDat 2.1/1 Vpp/TTL
