The Bosch Rexroth Indramat CSH02.1B-CC-EC-NN-L3-NN-NN-FW is part of the CSH Advanced Controllers series and features a sercos III master control communication and multi-encoder interface. This controller has a power consumption of 17 Watts and provides a Safe Torque Off safety function along with a relay current capacity of 1000 mA. Its analog output resolution is 24 millivolts per increment and it offers a voltage resolution of 14 bit on the X32 interface.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

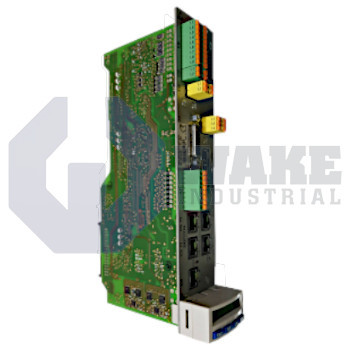

The CSH02.1B-CC-EC-NN-L3-NN-NN-FW is a motion-logic controller from Bosch Rexroth Indramat in the CSH Advanced Controllers series. Designed for multi-axis drive packages, it coordinates servo loops, gathers encoder feedback, and exchanges real-time data with higher-level PLCs. By combining encoder management, fieldbus processing, and relay handling in a compact module, the unit provides deterministic control for packaging lines, material handling systems, and machining centers where synchronized axis timing is required.
The module communicates with drives over the SERCOS III master interface for cyclic setpoint and feedback exchange. Each analog output refreshes in 750 µs, which helps limit latency for speed or torque references. The analog outputs provide a step size of 24 mV per increment into loads down to 2 kΩ, so connected devices receive fine voltage changes without overloading the converter. Measurement resolution on X32 is fixed at 14-bit, yielding 16,384 levels. The X35 current input has an input resistance of 300 Ω to help reduce distortion. A multi-encoder interface can source 500 mA at 5 V, and a separate 12 V rail supports sensors that require a higher supply voltage.
The control section draws only 17 W during normal operation, yet it can drive field devices through standard outputs rated at 500 mA and relays that switch up to 1000 mA. A resolver carrier of 8 kHz supports rapid angle tracking for position loops. The safety circuit provides the Safe Torque Off function through a dedicated channel that can source 350 mA for downstream logic. Protection against inrush is handled by a pulse limiter capped at 1 ms, which reduces stress on supply components during cabinet power-up. This arrangement also supports brake control and safety shutdown signaling without external signal-conditioning hardware.
Frequently Asked Questions about CSH02.1B-CC-EC-NN-L3-NN-NN-FW:
Q: What control communication protocol is used by the CSH02.1B-CC-EC-NN-L3-NN-NN-FW?
A: The CSH02.1B-CC-EC-NN-L3-NN-NN-FW supports sercos III as its control communication interface, enabling high-speed industrial automation networks.
Q: What is the analog output conversion time on the CSH02.1B-CC-EC-NN-L3-NN-NN-FW?
A: This controller offers an analog output conversion time of 750 µs, ensuring quick response in signal processing.
Q: What is the voltage resolution of the X32 output on this controller?
A: The CSH02.1B-CC-EC-NN-L3-NN-NN-FW features a 14-bit voltage resolution on the X32 channel for fine control accuracy.
Q: What safety function is included on the CSH02.1B-CC-EC-NN-L3-NN-NN-FW?
A: Safe Torque Off is the integrated safety function, allowing power to be safely removed from the motor when activated.
Q: What type of encoder interface is available on the CSH02.1B-CC-EC-NN-L3-NN-NN-FW?
A: It is equipped with a multi-encoder interface, enabling compatibility with multiple encoder types for flexible feedback options.
