CSH01.3C-PB-ENS-MA1-CCD-S2-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911329903
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
17 Seconds
The Bosch Rexroth Indramat CSH01.3C-PB-ENS-MA1-CCD-S2-S-NN-FW is part of the CSH Advanced Controllers series and features 2 analog input and 2 analog output channels with a resolution of 12 bits. This controller supports PROFIBUS-DP control communication, SERCOS III master cross communication, and includes a single-line display control panel as well as an engineering interface based on Ethernet. It operates with a base power of 8.5 W and has Safe Motion safety technology.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

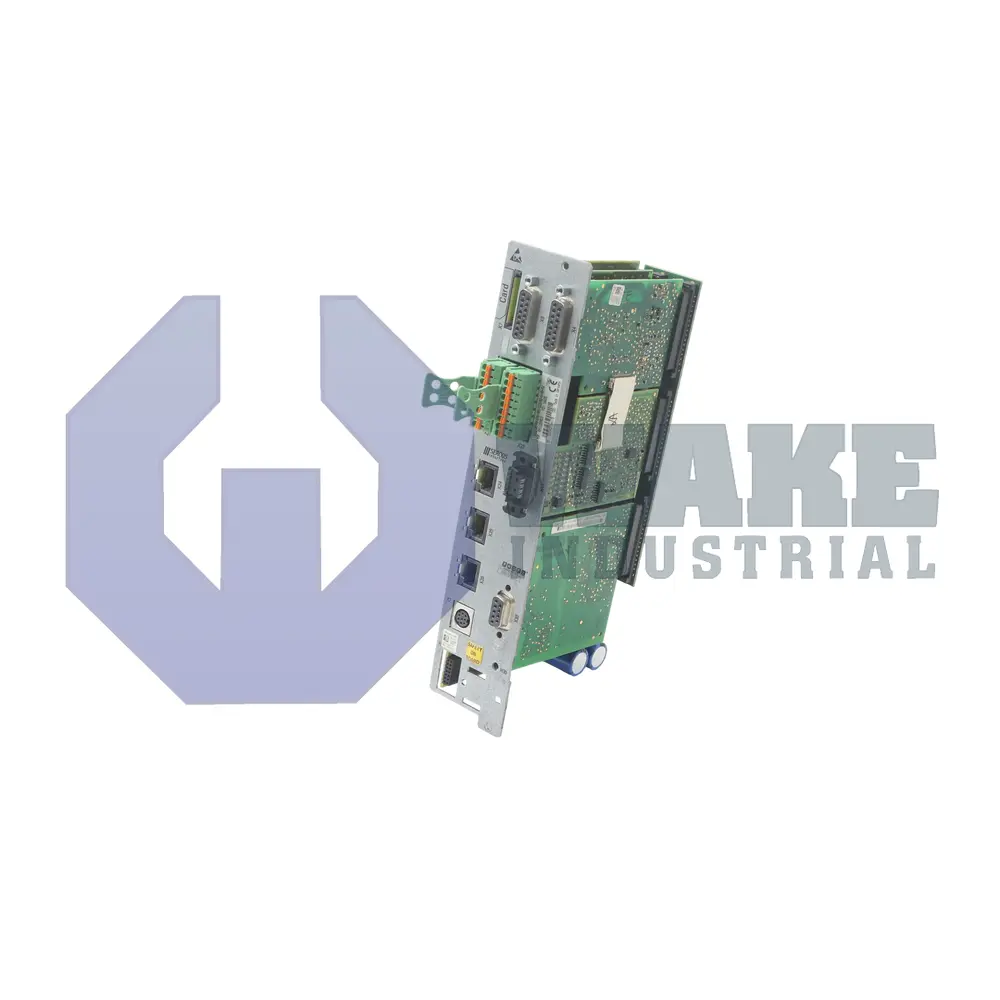

The CSH01.3C-PB-ENS-MA1-CCD-S2-S-NN-FW is a modular drive controller card produced by Bosch Rexroth Indramat for the CSH Advanced Controllers series. Installed inside an IndraDrive power section, the board manages axis control, fieldbus communication, and integrated safety functions needed for coordinated motion. By combining command processing with local I/O, it synchronizes servo motors and actuators with higher-level PLCs in packaging, printing, and material-handling equipment. This arrangement keeps motion control functions close to the power electronics and reduces the need for separate control hardware within the drive system.
The board provides 2 analog inputs and 2 analog outputs, and each channel uses 12-bit resolution so the drive can read reference voltages or send proportional control signals without an external converter. Communication with the PLC is handled through PROFIBUS-DP on the dedicated X30 connector, while synchronized data exchange between multiple drives is supported by a SERCOS III Master link. Setup is handled through an Ethernet-based engineering interface, and a front-mounted single-line display provides quick status feedback during operation. Additional interfaces include an RS-232 service port, and digital strobes support pulse widths of up to 100 ms for fast signal handling.
The controller draws 8.5 W during base operation and can handle an inrush current of 4 A at power-up. Supported encoder formats include IndraDyn, HIPERFACE®, and 1 Vpp, which allows the unit to work with several common motor feedback types from its internal 12 V supply. Safety integration includes a relay rated at 24 VDC / 1 A, and Safe Motion functions support machinery stop and speed supervision requirements. These functions allow the control section to manage feedback, protective switching, and motion supervision within the same drive platform.
Frequently Asked Questions about CSH01.3C-PB-ENS-MA1-CCD-S2-S-NN-FW:
Q: How many analog I/O channels are available on the CSH01.3C-PB-ENS-MA1-CCD-S2-S-NN-FW controller?
A: The CSH01.3C-PB-ENS-MA1-CCD-S2-S-NN-FW features two analog inputs and two analog outputs for signal interfacing.
Q: What type of control communication protocol is supported by the CSH01.3C-PB-ENS-MA1-CCD-S2-S-NN-FW?
A: This controller supports PROFIBUS-DP for control communication, enabling integration with compatible fieldbus networks.
Q: What type of safety technology is integrated into the CSH01.3C-PB-ENS-MA1-CCD-S2-S-NN-FW?
A: The CSH01.3C-PB-ENS-MA1-CCD-S2-S-NN-FW includes Safe Motion technology for enhanced operational safety in automation environments.
Q: Which encoder formats are compatible with the CSH01.3C-PB-ENS-MA1-CCD-S2-S-NN-FW?
A: This controller features compatible encoder formats including IndraDyn, HIPERFACE®, and 1 Vpp, allowing for versatile motor feedback options.
Q: What is the maximum inrush current for the CSH01.3C-PB-ENS-MA1-CCD-S2-S-NN-FW controller?
A: The maximum inrush current for this controller is 4 A, which helps determine power supply requirements during startup.
