CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911329891
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
42 Seconds
The Bosch Rexroth Indramat CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW is part of the CSH Advanced Controllers series and features a SERCOS III cross communication interface. It offers analog input bandwidth of 1.4 kHz, a digital output current of 500 mA, and supports encoder interfaces including IndraDyn, HIPERFACE, and EnDat2.1. The controller meets a safety rating of SIL2 / Cat. 3 PL d and has a base power consumption of 8.5 W.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

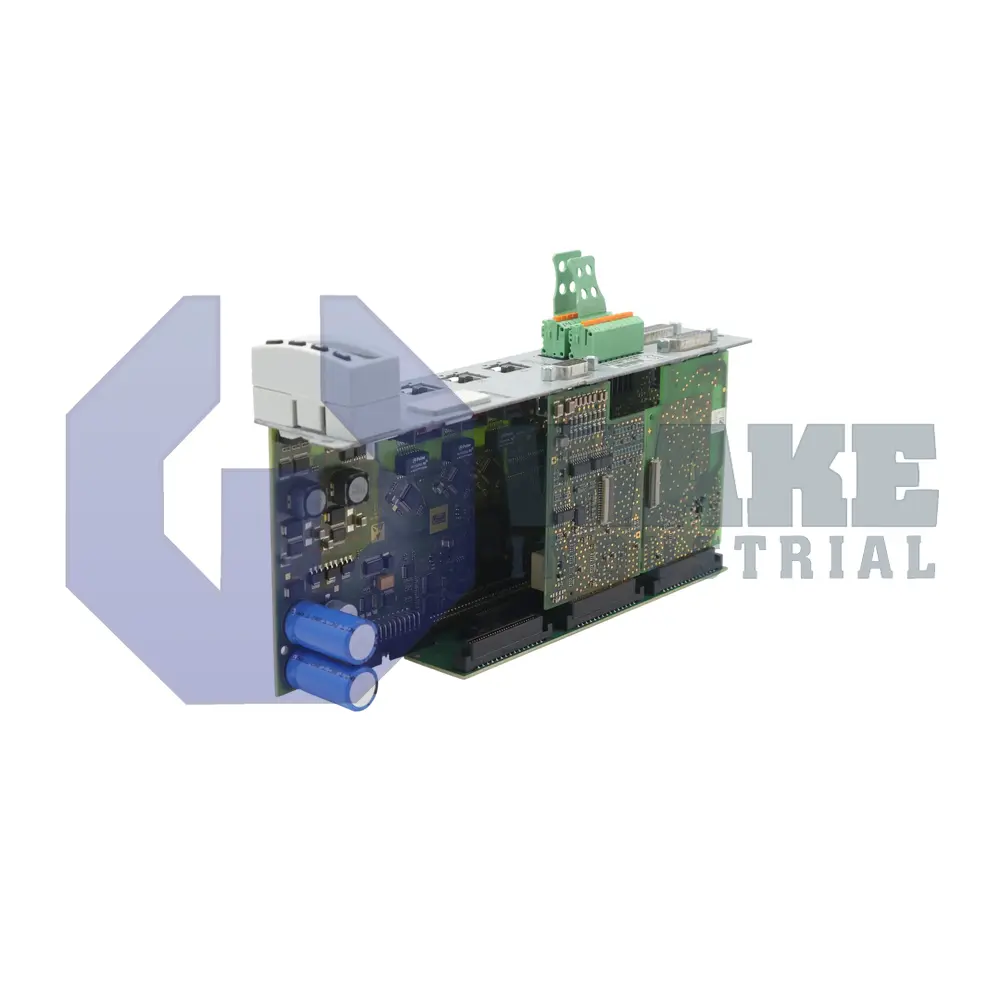

Bosch Rexroth Indramat manufactures the CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW, a plug-in motion control section in the CSH Advanced Controllers series. Installed in an IndraDrive power module, this card converts fieldbus commands into precise current and velocity references for connected servo axes used in packaging machines, pick-and-place robots, and processing lines. It supervises encoder feedback and coordinated safety I/O, enabling the drive to execute real-time positioning tasks while meeting factory functional-safety requirements.
The analog front end is designed for dynamic reference tracking, and its input channel offers a bandwidth of 1.4 kHz with an input resistance of 160 kΩ, which minimizes loading on upstream signal sources. For drive-controlled setpoints, the board provides a voltage output that can source 1 mA per channel, with a step size of 19.5 mV/inc to support fine resolution during ramp generation. Despite these signal-processing functions, the section draws only 8.5 W from the DC bus. Additional hardware limits inrush current to 4 A, and the digital inputs recognize a logical high at 15 V. Network parameterization is performed over the 100Base-TX engineering interface without removing the unit from its slot.
During cyclic operation, the card exchanges drive status and synchronization telegrams through SERCOS III cross communication, while master communication remains disabled to reserve bandwidth for motion data. The dual encoder connectors accept IndraDyn, HIPERFACE, 1 Vpp, TTL, and EnDat 2.1 formats, and fast position capture is supported with a probe pulse width of 4 µs and a maximum strobe width of 100 ms. Each digital output can switch loads up to 500 mA for brake release solenoids or actuators. The integrated safety logic is rated at SIL2 / Cat. 3 PL d, allowing safe-torque-off and safely-limited-speed functions to be certified without external relays.
Frequently Asked Questions about CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW:
Q: What is the analog input bandwidth of the CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW controller?
A: The CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW features an analog input bandwidth of 1.4 kHz, supporting fast signal processing.
Q: What cross communication protocol does the CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW support?
A: This controller provides SERCOS III support for robust cross communication in industrial automation settings.
Q: What encoder interfaces are available on the CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW?
A: It is equipped with multiple encoder interface options, including IndraDyn, HIPERFACE, 1 Vpp, TTL, and EnDat2.1 for flexible feedback integration.
Q: What is the safety rating of the CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW?
A: The safety rating of this controller is SIL2 / Cat. 3 PL d, which meets high safety requirements in machine automation applications.
Q: What is the inrush current of the CSH01.3C-NN-ENS-EN2-CCD-S2-S-NN-FW controller?
A: The inrush current for this model is specified at 4 A, which should be considered during installation and power design.
