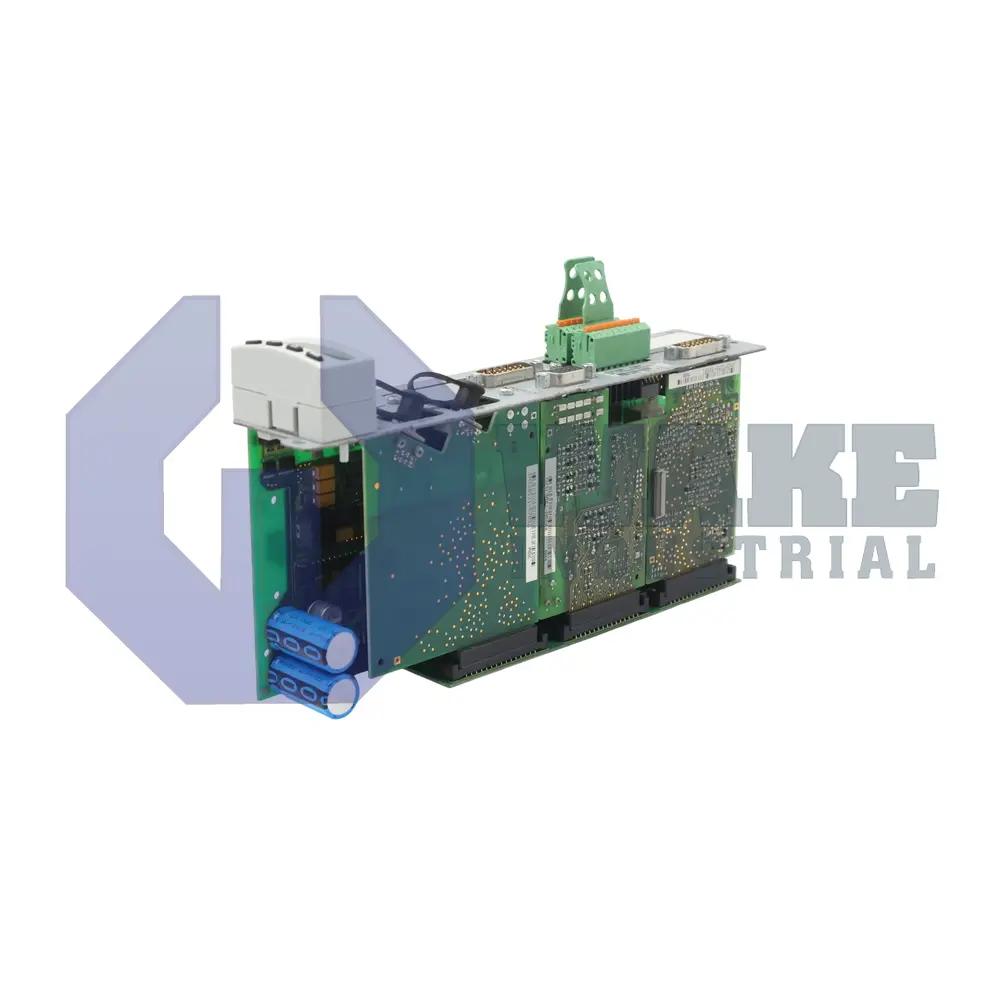

CSH01.1C-SE-EN2-NNN-MEM-L2-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911329865
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat CSH01.1C-SE-EN2-NNN-MEM-L2-S-NN-FW is part of the CSH Advanced Controllers series. It features SERCOS II control communication, an encoder interface compatible with EnDat 2.1, 1 Vpp, and 5 V TTL, and a safe torque off safety function. The controller provides ±10 V analog input range with 160 kohm resistance, an analog output voltage of 5 V at 1 mA, and supports probe inputs and relay contacts rated at DC 24 V / 1 A.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The CSH01.1C-SE-EN2-NNN-MEM-L2-S-NN-FW is a single-axis motion controller produced by Bosch Rexroth Indramat within the CSH Advanced Controllers series. The unit is installed on Rexroth drive racks to coordinate servo and spindle functions in automated machinery, packaging cells, and material-handling stations. By handling high-speed position loops and fieldbus messaging in the same module, the controller serves as a compact command layer between a master PLC and the individual power stages that drive the motors.
Its analog section provides an input span of ±10 V, allowing proportional command signals from external sensors or supervisory drives. The input path presents 160 kΩ of resistance, so it loads the source only minimally and preserves signal fidelity. For drive-side feedback or trim functions, the controller delivers a reference level of 5 V and can source up to 1 mA, which is sufficient for potentiometric circuits or incremental encoders that need a low current bias. Real-time set-point data and status words are exchanged over the SERCOS II fiber-optic ring, which provides deterministic cycle times and electrical isolation from cabinet noise.
The controller also carries two probe inputs for edge-triggered position capture and a relay contact that can switch DC 24 V at 1 A for auxiliary signals. Its transistorized digital outputs can drive loads up to 0.5 A, supporting brake solenoids or indicator lamps without external relays. The secondary En2 encoder socket tolerates a load of 35 Ω and can source 350 mA from its internally regulated 5.0 V rail, so high-resolution incremental sensors remain powered during rapid traverses. A memory channel clocks diagnostic data at 1 MHz and supports the EnDat 2.1, 1 Vpp, and TTL formats available on the main encoder interface. The integrated safety layer provides Safe Torque Off, allowing drives to remove motor energy without affecting fieldbus communication.
Frequently Asked Questions about CSH01.1C-SE-EN2-NNN-MEM-L2-S-NN-FW:
Q: What analog input voltage range does the CSH01.1C-SE-EN2-NNN-MEM-L2-S-NN-FW controller support?
A: The CSH01.1C-SE-EN2-NNN-MEM-L2-S-NN-FW controller supports an analog input range of ±10 V for signal processing.
Q: What control communication protocol is used by the CSH01.1C-SE-EN2-NNN-MEM-L2-S-NN-FW?
A: This controller communicates via the SERCOS II protocol for control communication.
Q: What types of encoder interfaces are provided on the CSH01.1C-SE-EN2-NNN-MEM-L2-S-NN-FW?
A: Its encoder interface supports EnDat 2.1, 1 Vpp, and 5 V TTL signals for feedback connectivity.
Q: What safety function is featured on the CSH01.1C-SE-EN2-NNN-MEM-L2-S-NN-FW?
A: The controller is equipped with the Safe Torque Off safety function.
Q: How many probe inputs does the CSH01.1C-SE-EN2-NNN-MEM-L2-S-NN-FW offer?
A: This model provides two probe inputs for measurement or positioning tasks.
