CSH01.1C-SE-EN1-EN2-MEM-S2-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911331568
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
28 Seconds
The Bosch Rexroth Indramat CSH01.1C-SE-EN1-EN2-MEM-S2-S-NN-FW is part of the CSH Advanced Controllers series and features SERCOS II communication with a Sercos data rate of 16 MBaud. It supports both resolver and HSF encoder interfaces as well as EnDat 2.1, 1 Vpp, and 5 V TTL encoder connections, and offers absolute and incremental encoder emulation. The controller delivers analog output of 5 V at 1 mA and digital output of 0.5 A, with safe motion safety technology.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

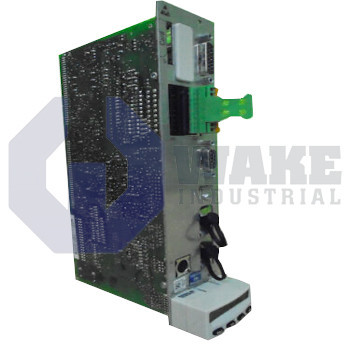

The CSH01.1C-SE-EN1-EN2-MEM-S2-S-NN-FW is a motion control processor card from Bosch Rexroth Indramat in the CSH Advanced Controllers series. Installed in an IndraDrive modular stack, it coordinates servo axes, processes feedback, and exchanges real-time data with higher-level PLCs to automate presses, packaging lines, and handling systems. Its architecture integrates fieldbus communication, safety logic, and encoder handling on one board, providing deterministic command execution for demanding industrial applications. Because these functions are combined on one board, the controller can coordinate multiple axes while handling feedback and safety tasks inside the same drive assembly. This arrangement suits modular drive systems that require tightly timed motion control across several connected machine functions.
The controller draws only 7.5 W of base power. It communicates over SERCOS II, and the ring can run at 16 MBaud for sub-millisecond cycles. Each analog channel can source 1 mA, and the digital block supplies 0.5 A for relay actuation. Safe Motion permits shutdown without a separate safety relay. The card supports absolute or incremental emulation, provides Resolver/HSF on encoder port 1, and accepts EnDat 2.1, 1 Vpp, or TTL signals on encoder port 2. Dedicated sensor supply lines are also available for the connected feedback devices.
The embedded memory interface streams position data over lines up to 40 m in length and can toggle the strobe at 1 MHz, enabling high-resolution capture from linear scales. Serial servicing is available through the RS-232 port, which reaches 115 kBaud for diagnostics and data backup during routine service work. A changeover relay rated at 24 V DC / 1 A is present for enable control. The card's analog channel furnishes a precise 5 V reference for external setpoints, and twin encoder supplies isolate feedback commons. Digital outputs are protected against short circuits, and the safety function monitors velocity and position in real time before permitting torque.
Frequently Asked Questions about CSH01.1C-SE-EN1-EN2-MEM-S2-S-NN-FW:
Q: What type of control communication does the CSH01.1C-SE-EN1-EN2-MEM-S2-S-NN-FW use?
A: The CSH01.1C-SE-EN1-EN2-MEM-S2-S-NN-FW controller supports SERCOS II communication for control integration.
Q: What are the analog output specifications of the CSH01.1C-SE-EN1-EN2-MEM-S2-S-NN-FW?
A: This controller has analog output capabilities of 1 mA current and 5 V voltage for precise signal control.
Q: What safety technology is implemented in the CSH01.1C-SE-EN1-EN2-MEM-S2-S-NN-FW?
A: The safety feature on this controller is Safe Motion, providing integrated safety technology.
Q: What is the maximum memory line length for the CSH01.1C-SE-EN1-EN2-MEM-S2-S-NN-FW controller?
A: The maximum line length supported by the memory interface is 40 meters on this unit.
Q: What is the digital output current capability of the CSH01.1C-SE-EN1-EN2-MEM-S2-S-NN-FW?
A: The digital output on this controller can supply up to 0.5 A current for connected devices.
