The Bosch Rexroth Indramat CSH01.1C-PB-ENS-EN2-NNN-S2-S-NN-FW is a single-axis controller from the CSH Advanced Controllers series with a base power draw of 7.5 W. It supports PROFIBUS communication at up to 12 MBaud and is equipped with both D-Sub and MiniDIN connectors for PROFIBUS and RS232 interfaces. The unit features Safe Motion safety technology and offers relay contact ratings of 24 V DC at 1 Amp.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

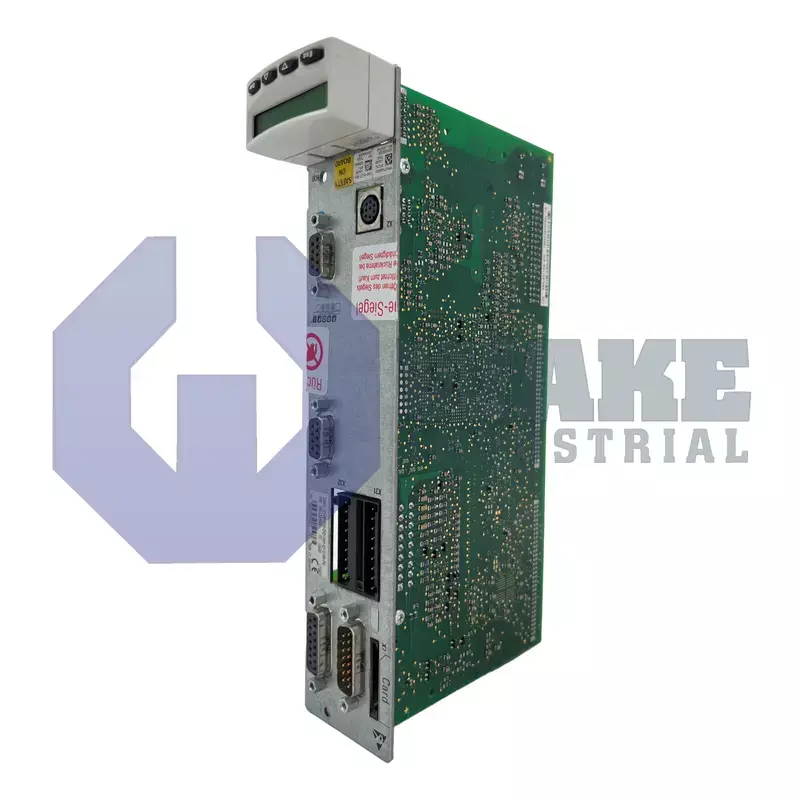

The CSH01.1C-PB-ENS-EN2-NNN-S2-S-NN-FW control section is produced by Bosch Rexroth Indramat and belongs to the CSH Advanced Controllers series. As a plug-in drive controller card, it coordinates command, monitoring, and diagnostic functions for an individual servo axis inside IndraDrive power units. This arrangement separates motion control tasks from the power stage inside the drive assembly. By translating high-level automation commands into real-time motion profiles, the module forms the interface between the machine PLC and the inverter stage, ensuring deterministic positioning and speed regulation in industrial automation lines.
The card is designed for single-axis operation, so it supervises one mechanical axis with dedicated feedback and safety channels. Field communication is handled through PROFIBUS, and the integrated bus driver supports rates up to 12 MBaud while using a D-Sub 9-pin female connector for network cabling. Under idle conditions, the electronics draw only 7.5 W, yet they tolerate a 4 A inrush when the drive is energized. A 100 ms maximum pulse width on the fast inputs accommodates drive-based positioning commands that require narrow gating. The card includes Safe Motion functions, and the safety I/O can source or sink 1.6 A for external relays. A separate relay inside the card is rated for 24 V DC at 1 A to switch brakes or contactors.
Feedback resources are split across two encoder channels. Channel one can supply 11.6 V DC at up to 500 mA, allowing absolute encoders with active electronics to be powered directly from the card. A secondary port provides 5.0 V DC with a continuous limit of 350 mA for TTL-based incremental devices. Parameterization and service access are available through the RS232 port, which uses a MiniDIN 8-pin female connector and supports cable lengths up to 15 m. This service connection allows direct diagnostics without affecting fieldbus traffic.
Frequently Asked Questions about CSH01.1C-PB-ENS-EN2-NNN-S2-S-NN-FW:
Q: How many axes can the CSH01.1C-PB-ENS-EN2-NNN-S2-S-NN-FW controller manage?
A: The CSH01.1C-PB-ENS-EN2-NNN-S2-S-NN-FW is designed for controlling a single axis, making it suitable for applications requiring precise movement on one channel.
Q: What is the maximum PROFIBUS communication speed supported by this controller?
A: This controller supports PROFIBUS communication with a baud rate of up to 12 MBaud for fast and reliable network performance.
Q: What safety technology is integrated into the CSH01.1C-PB-ENS-EN2-NNN-S2-S-NN-FW?
A: The CSH01.1C-PB-ENS-EN2-NNN-S2-S-NN-FW features Safe Motion safety technology for enhanced operational safety during motion tasks.
Q: What is the base power consumption of the CSH01.1C-PB-ENS-EN2-NNN-S2-S-NN-FW controller?
A: The base power draw for this model is 7.5 watts, which supports low power consumption during standard operation.
Q: What type of RS232 connector does the controller have and what is its maximum cable length?
A: The RS232 connector is a MiniDIN 8-pin female type and supports cable lengths up to 15 meters.
