CSH01.1C-PB-EN2-ENS-MA1-S1-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911318864
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
8 Seconds
The Bosch Rexroth Indramat CSH01.1C-PB-EN2-ENS-MA1-S1-S-NN-FW is part of the CSH Advanced Controllers series and features master communication over PROFIBUS with a D-Sub 9-Pin female connector and 12 MBaud data rate. It has a D-Sub 15-Pin connection for the En2 encoder, which operates at 5 V and 350 mA. The MA1 module provides two differential input channels, two output channels, and 12-bit resolution with a signal range of ±10 V.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

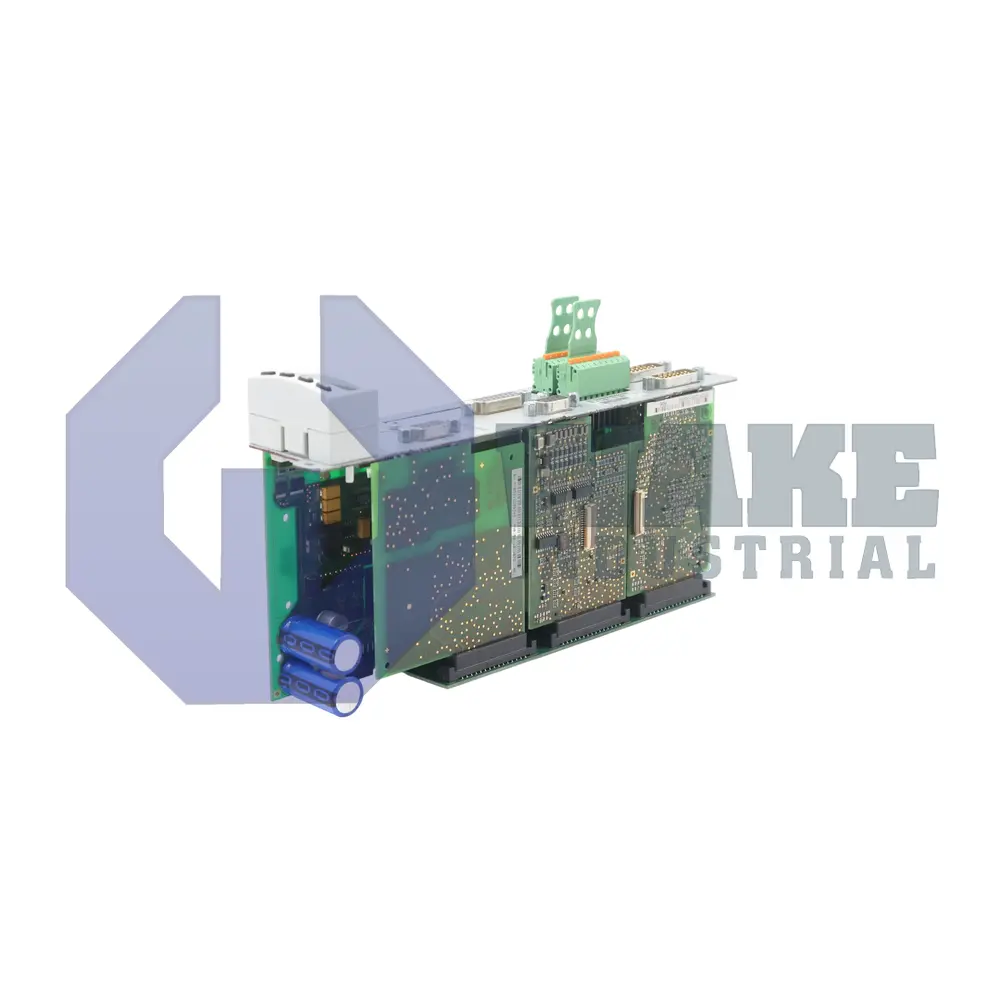

The CSH01.1C-PB-EN2-ENS-MA1-S1-S-NN-FW is a single-axis control section produced by Bosch Rexroth Indramat within the CSH Advanced Controllers series. Serving as the logic and communication core inside IndraDrive units, this module directs servo power stages. It also exchanges fieldbus data with higher-level PLCs for coordinated motion sequences in industrial automation. Because it operates as the main control layer inside the drive, it combines command handling, feedback processing, and communication functions in one section. This helps the drive respond to machine commands while maintaining organized data exchange with the rest of the control system.
The EN2 option supplies secondary encoder power and signal routing through a D-Sub 15-Pin receptacle. Internally, the EN2 lines are energized at 5.0 V and can deliver up to 350 mA, which is sufficient for most incremental or absolute transducers. The MA1 analog module offers two differential input channels and two voltage outputs; each path is digitized or generated with 12-bit resolution and operates across a ±10 V span, enabling closed-loop torque or process pressure control. Master communication to the drive is handled through PROFIBUS, and a D-Sub 9-pin female connector carries telegrams at a maximum bus rate of 12 MBaud for deterministic cycle times in multi-axis cells. For local diagnostics or setup, the integrated RS-232 port supports point-to-point transfers up to 115 kBaud, allowing parameter uploads without occupying the fieldbus.
Supplementary sensor power is available on the ENS socket at 12 V, so external temperature probes or reference switches can be fed directly from the control section. The S1 digital interface accepts 24 V control signals that draw only 3 mA, and it can drive actuators at a maximum of 24 V / 0.5 A, eliminating the need for external relays on small solenoids. For high-resolution position feedback, the X4 port accommodates EnDat 2.1 / 1 Vpp / TTL encoders, while the X8 port recognizes IndraDyn / Hiperface / 1 Vpp / TTL formats. This supports mixed-sensor architectures within the same machine and allows the control section to work with different feedback devices on a common platform.
Frequently Asked Questions about CSH01.1C-PB-EN2-ENS-MA1-S1-S-NN-FW:
Q: What is the master communication protocol for the CSH01.1C-PB-EN2-ENS-MA1-S1-S-NN-FW controller?
A: The CSH01.1C-PB-EN2-ENS-MA1-S1-S-NN-FW controller supports PROFIBUS communication as its master communication interface.
Q: What is the signal range for the Ma1 channels on this controller?
A: The Ma1 analog module provides a signal range of ±10 V for input and output channels.
Q: What type of connector is used for the En2 interface?
A: The En2 connector on this controller is a D-Sub 15-pin type, offering a secure connection for connected devices.
Q: Which encoder signal types are supported on the X4 interface?
A: The X4 encoder interface supports EnDat 2.1, 1 Vpp, and TTL signal types for versatile feedback options.
Q: What is the resolution of the Ma1 analog module on this controller?
A: The Ma1 module on the CSH01.1C-PB-EN2-ENS-MA1-S1-S-NN-FW offers 12-bit resolution for both input and output channels.
