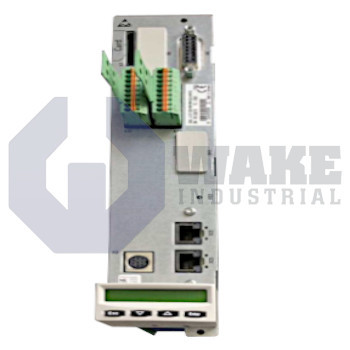

CSH01.1C-ET-EN2-NNN-NNN-S2-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911328179
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
37 Seconds
The Bosch Rexroth Indramat CSH01.1C-ET-EN2-NNN-NNN-S2-S-NN-FW is part of the CSH Advanced Controllers series and features Multi-Ethernet communication with two RJ45 Ethernet ports. This controller includes a single-line control panel display, an encoder interface supporting EnDat 2.1 and 5 V TTL, and a safety rating of SIL2 and Cat. 3 PL d. Its analog input bandwidth is 1.4 kHz and it offers Safe Motion as a safety option.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat manufactures the CSH01.1C-ET-EN2-NNN-NNN-S2-S-NN-FW universal control section for IndraDrive systems in the CSH Advanced Controllers series. Serving as the motion-processing core, it links higher-level PLC commands to drive power stages and coordinates encoder feedback, analog references, and real-time Ethernet traffic within automated machinery. This arrangement allows one control section to manage signal handling, axis communication, and safety-related coordination in a compact drive platform.
The analog front end accepts command voltages over a bandwidth of 1.4 kHz, so the input channel can respond quickly to changing reference signals. A high input impedance of 160 kΩ minimizes loading of upstream signal sources, and conversion granularity of 2 mV/inc allows the control loop to resolve small setpoint changes. For actuator feedback, the output stage can source up to 1 mA while driving loads down to 5 kΩ, enabling direct interfacing with standard servo drives or process indicators. Encoder wiring is handled through a D-Sub 15-pin connector, and the interface supports EnDat 2.1, incremental 1 Vpp, or 5 V TTL formats so digital and analog encoders can be used on the same axis. A regulated 5 V supply is available on the connector to power the transducers.
Supplementing the analog channels, the module offers an output step size of 19.5 mV/inc for fine control of analog actuators. Network traffic passes through a Multi-Ethernet stack with two RJ45 ports running at 100Base-TX, which supports line, ring, or star topologies without extra switches. A single-line control panel supports local diagnostics, and relay contacts rated at DC 24 V, 1 A provide field-isolated signaling for brakes or contactors. The integrated Safe Motion option is certified to SIL2 / Cat. 3 PL d, allowing reduced-torque or safely limited speed modes without external safety relays.
Frequently Asked Questions about CSH01.1C-ET-EN2-NNN-NNN-S2-S-NN-FW:
Q: What is the analog input resolution of the CSH01.1C-ET-EN2-NNN-NNN-S2-S-NN-FW?
A: The CSH01.1C-ET-EN2-NNN-NNN-S2-S-NN-FW controller supports an analog input resolution of 2 mV per increment, allowing for precise signal capture.
Q: How many Ethernet ports are available on the CSH01.1C-ET-EN2-NNN-NNN-S2-S-NN-FW controller?
A: This controller is equipped with two RJ45 ports supporting the 100Base-TX Ethernet standard for network connectivity.
Q: What type of connector does the CSH01.1C-ET-EN2-NNN-NNN-S2-S-NN-FW use for encoders?
A: A D-Sub 15-pin connector is used for encoder connections on this model.
Q: What is the safety rating of the CSH01.1C-ET-EN2-NNN-NNN-S2-S-NN-FW controller?
A: The CSH01.1C-ET-EN2-NNN-NNN-S2-S-NN-FW is rated for SIL2 / Cat. 3 PL d safety compliance, enabling enhanced functional safety features.
Q: What is the relay contact rating on the CSH01.1C-ET-EN2-NNN-NNN-S2-S-NN-FW controller?
A: The maximum relay contact rating for this controller is DC 24 V at 1 A.
