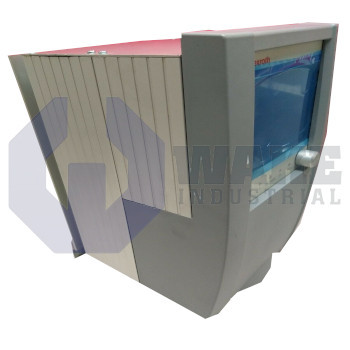

CS351S-D Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: 608830254
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat CS351S-D is part of the CS Compact Controller Systems series and features a power supply of 120/230 V with IP54 protection class. The controller is equipped with USB and Ethernet bus systems, three interface module slots, and a DVI display interface. Weighing 9.5 kilograms, it offers compatibility with tightening spindles and integrates both on-board Ethernet and mass storage using CF350.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The CS351S-D controller is built by Bosch Rexroth Indramat within the CS Compact Controller Systems series. It is a tightening controller that supervises and documents torque and angle data when a tightening spindle is used in an assembly line. By linking field devices through its embedded communication bus, the unit coordinates spindle motion, stops the motor when set limits are reached, and sends process status to higher-level PLCs. This arrangement allows the controller to manage fastening cycles while keeping production data available for traceability.
The housing measures 358 × 210 × 253 mm, which supports cabinet installation without requiring a deep rack. The controller accepts a mains supply of 120/230 V, so it can operate from common single-phase utility circuits. Control networks connect through the USB/Ethernet bus system, and operator panels connect through the DVI display port for real-time visualization of tightening curves. The enclosure has an IP54 rating that helps protect internal boards from dust and water splashes common in production cells. Process data is stored on a CF350 CompactFlash module. Three interface module slots are available for optional fieldbus or discrete I/O cards, which expands the controller for different line requirements.
System safety includes a motor stop interface that disconnects drive power when a fault occurs. A serial port, one USB host connector, and one tightening channel are provided for sensor feedback and tool actuation. The unit has a mass of 9.5 kg, which is light enough for door-mounted installation where the enclosure structure supports the load. Ethernet is provided by an On-Board port rather than a plug-in card. The controller meets EMC severity level IV, which helps it resist electrical noise from welding equipment and nearby inverters. Compatibility with a tightening spindle allows closed-loop torque control without external converters.
Frequently Asked Questions about CS351S-D:
Q: What bus systems are available on the CS351S-D controller?
A: The CS351S-D supports both USB and Ethernet for versatile communication and connectivity.
Q: Does the CS351S-D have an Ethernet interface included?
A: This controller features an on-board Ethernet interface for direct network integration.
Q: What protection class does the CS351S-D controller have?
A: The CS351S-D is rated at IP54, providing a good level of protection against dust and water splashes.
Q: Which tools are compatible with the CS351S-D controller?
A: The CS351S-D is compatible for use with a tightening spindle tool.
Q: What power supply voltages are supported by the CS351S-D controller?
A: Power for the CS351S-D controller can be supplied at either 120 V or 230 V.
