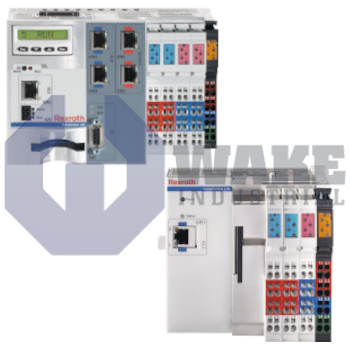

CML25.1 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911337113
The Bosch Rexroth Indramat CML25.1 is a Control Main Unit from the CML IndraControl Hardware series. It features a Renesas SH 7785 processor with a clock frequency of 576 MHz and has 128 MB of base DRAM. The unit is designed with inline housing and is part of the 25 series.
Internal Product Review
The CML25.1 is a Bosch Rexroth Indramat control main unit with an inline housing design suited for streamlined cabinet integration. A Renesas SH 7785 processor running at 576 MHz delivers fast, stable performance for demanding control applications. With 128 MB base DRAM, the platform offers a well-balanced architecture for reliable IndraControl operation.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The CML25.1 is an industrial controller module manufactured by Bosch Rexroth Indramat as part of the CML IndraControl Hardware series. Installed on DIN-rail backplanes, it operates as the central processing resource in programmable logic controller architectures, orchestrating motion axes, fieldbus networks, and safety circuits. The unit links machine-level signals with supervisory execution layers, supplying deterministic task management needed for packaging lines, material handling systems, and other automated industrial equipment.
The processing core is a Renesas SH 7785 running at a clock frequency of 576 MHz, providing adequate instruction throughput for synchronized motion control and fast interrupt handling. A base memory of 128 MB supports program code, buffering, and diagnostic data without external expansion. The controller is supplied in an Inline housing that allows adjacent stacking with other IndraControl modules so internal buses remain at minimal trace length. The controller uses CPU design 1, which has a single-package implementation that minimizes latency between the processor, memory, and peripheral controllers.
Within the 25 hardware generation, the module functions as the central node, and it is classified as a Control Main Unit. Its onboard DRAM maintains real-time buffers for motion profiles while the system clock synchronizes communication over SERCOS, PROFIBUS, or Ethernet-based fieldbuses. The compact bus connection and compact enclosure simplify cabinet layouts by eliminating ribbon extensions between the CPU and expansion slices. When teamed with IndraDrive amplifiers and distributed I/O terminals, the CML25.1 provides coordinated interpolation, homing, and error handling without additional gateway layers, supporting deterministic sequencing across machine axes and peripheral sensors.
