Product Description

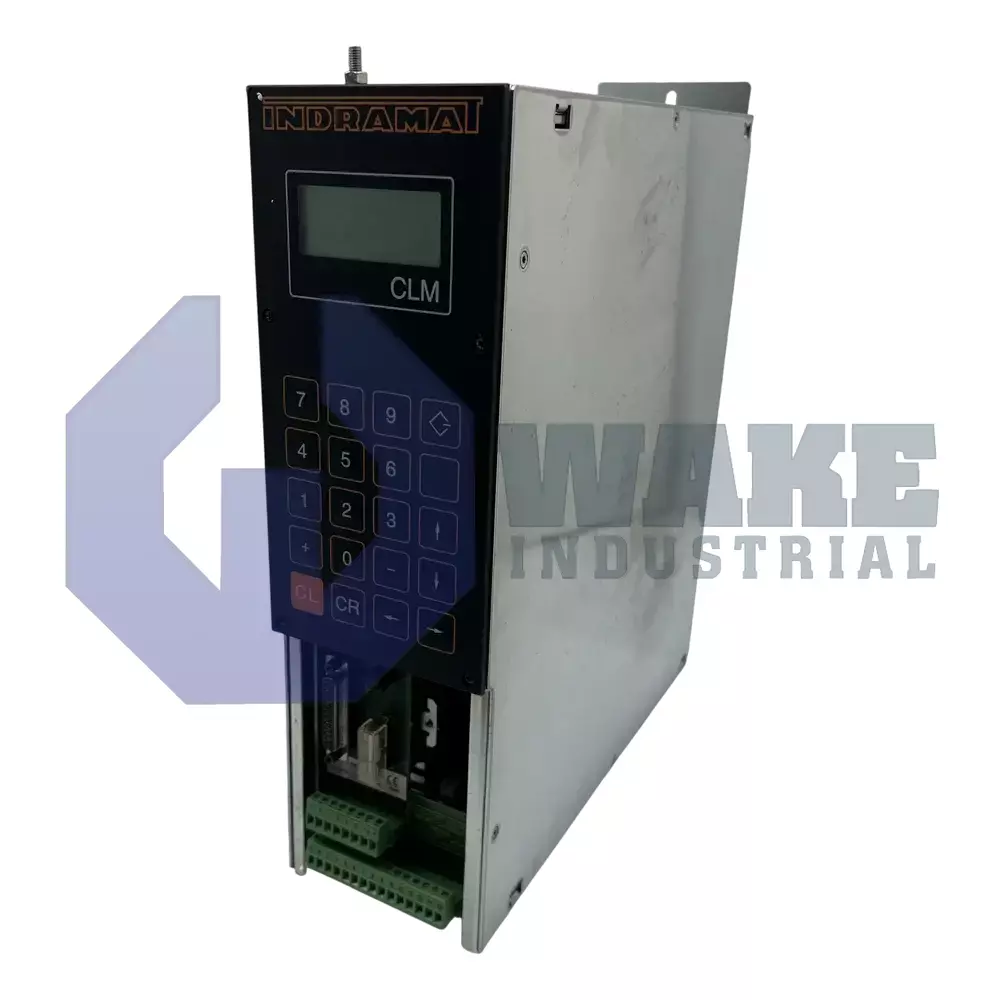

The CLM01.3-X-E-2-0-FW is an axis positioning control module from Bosch Rexroth Indramat. The CLM control module allows for high precision motion control featuring a feed resolution of 0.001 inch. Also, the level of its performance is dependent on the system’s mechanical characteristics. The CLM01.3-X-E-2-0-FW control system can be easily operated by inputting the user program through optional interfaces or front panel controls. The axis positioning control module features a display that shows the operating status messages, allowing for easy operation. The CLM01.3-X-E-2-0-FW is also parameter-adaptable to different machines, by entering data into a range of parameters. It can be adapted to the electrical and mechanical characteristics of an application.

The CLM01.3-X-E-2-0-FW belongs in the CLM series, on line 1 and design 3 control. It also features two-axis, the standard quantity of axes and a factory-assigned firmware. Its display design is B. The CLM01.3-X-E-2-0-FW was designed by Rexroth to function smoothly with the equipment design of the machine builder. It features different output and input signals which allow for communication from and to the components of the equipment. The I/O connection is the interface that allows for this communication. Apart from the I/O connection, other functions and communication are facilitated by programming or through the parameter.

The I/O connection provides functions like operating mode selection, safety interlocks, axis homing, fault/diagnostic circuitry, and other special functions. This axis positioning control module in the CLM series has a signal level between the range of 0 Vdc and +24 Vdc. The CLM01.3-X-E-2-0-FW features three operating modes and will always be in one of them. They include the manual, parameter and automatic operating modes. The suggested operating mode is the parameter mode.
