CFL01.1-P1 Bosch Rexroth Indramat
MPN: R911170005
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat CFL01.1-P1 is part of the CFL Modules series and uses a D-Sub 9-pin female bus connector with shielded, twisted pair cabling compliant with Type A (EN 50170-8-2) standards. It has a power consumption of 1.65 watts and features indicator LEDs for status and bus activity.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

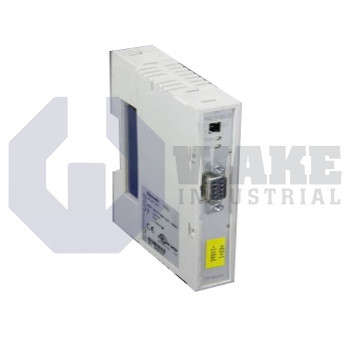

The CFL01.1-P1 is a communication interface module from Bosch Rexroth Indramat and belongs to the CFL Modules series. Within an automation rack, it provides the electrical link between a serial bus and the controller, allowing distributed I/O stations or drives to exchange real-time data with the CPU. Its compact format helps reduce wiring congestion in crowded cabinets, and the direct bus connection supports stable data transfer between separated machine sections. This arrangement lets the controller receive device status and send control data without requiring each field device to be wired individually to the central rack.
The module terminates the bus through a 9-pin D-Sub female connector, and the pin assignment routes differential transmit, receive, control, and reference signals to dedicated contacts. Cabling must follow the Type A (EN 50170-8-2) profile and use shielded twisted-pair cable so common-mode noise is reduced during operation. During operation, the logic rails draw 500 mA from the 3.3 V backplane, while total internal dissipation remains at 1.65 W. This power demand and heat loss must be considered when sizing the rack supply and airflow path. Two front LEDs labeled Stat and Bus show module diagnostics and network activity, and the field cable needs an outer conductor diameter greater than 0.64 mm for adequate crimp strength at the connector.
Signal quality over distance depends on several transmission limits. At 12 Mbit/s, the maximum segment length is 100 m, because longer runs can introduce propagation delay and timing errors between nodes. The copper pair may introduce loop resistance of ≤ 110 ohms/km and distributed capacitance of ≤ 30 pF/m, helping the transceivers maintain clean signal edges across the line. The conductors also need a cross-section of more than 0.34 mm² so voltage drop stays within logic thresholds when multiple nodes share the same communication segment.
Frequently Asked Questions about CFL01.1-P1:
Q: What type of bus connector does the CFL01.1-P1 module use?
A: The CFL01.1-P1 features a D-Sub female, 9-pin connector for bus interfacing.
Q: What is the maximum cable segment length supported by the CFL01.1-P1 at 12 Mbit/s?
A: This module has a maximum segment length of 100 meters at 12 Mbit/s communication speed.
Q: What type of cable is required for the CFL01.1-P1 module?
A: The CFL01.1-P1 requires a shielded, twisted pair cable for proper operation.
Q: What is the current draw specification for the CFL01.1-P1 module?
A: The CFL01.1-P1 draws 500 mA of current at 3.3 V during operation.
Q: What indicator LEDs are included on the CFL01.1-P1 module?
A: This module is equipped with 'Stat' and 'Bus' indicator LEDs for status monitoring.
