Product Description:

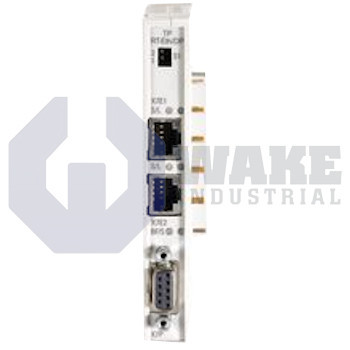

The CFL01.1-E2 module is an I/O expansion unit produced by Bosch Rexroth Indramat for the CFL Modules series. Designed for distributed control systems, the component provides configurable digital inputs and outputs that let a motion controller monitor sensors and actuate field devices without additional wiring complexity across the machine. In industrial automation, the module acts as a compact interface layer, translating 24-volt field signals into logic-level data while keeping control electronics electrically isolated from plant power.

The module provides 16 dedicated input channels and an equal number of outputs, giving 32 discrete lines in total. Each input changes state at an average delay of 40 µs, limiting control loop latency. Output stages present the field supply of 24 V; any single channel can source up to 0.5 A, and internal design keeps total dissipation to 0.3 W during continuous duty. With this combination of channel density and fast reaction time, the card supports tightly synchronized motion, pneumatic, or indicator loads while staying within enclosure heat budgets in space-limited installations.

Every input follows the Type 1 standard and draws a typical open-circuit current of 20 mA to maintain defined logic levels. When a controller commands a change, the output path propagates a rising edge in about 70 µs, while the falling edge is governed by the same driver circuit for consistent switching behavior. The backplane delivers only 90 mA at 3.3 V for logic functions, and galvanic separation keeps that rail isolated from field wiring. Sensors receive 24 V at 0.2 A continuous, and the supply disconnects if the current reaches the trip point of 1.2 A. All outputs share a collective ceiling of 4 A, letting multiple solenoids or indicator banks operate simultaneously without overrunning the driver transistors.
