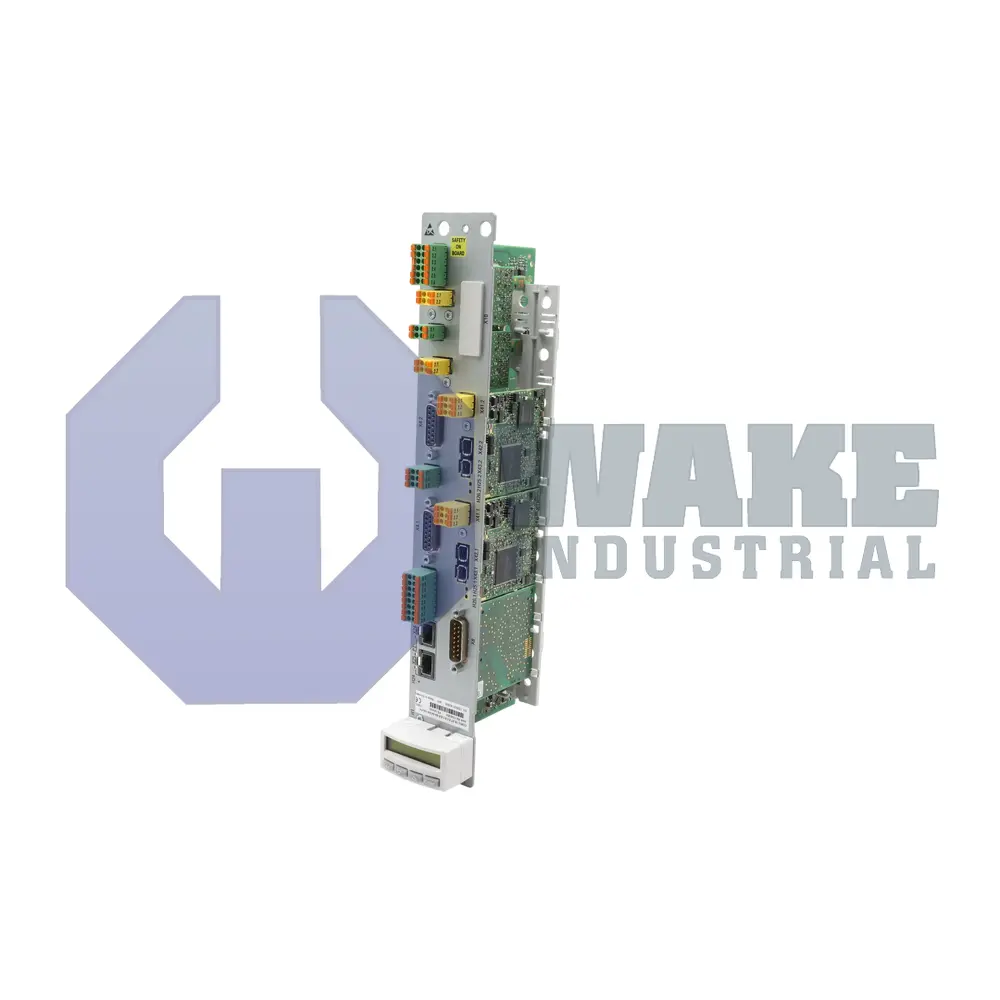

CDB02.1B-ET-EC-EC-EM-S4-S4-NN-NN-FW Bosch Rexroth Indramat Multi-Ethernet 2 Axis Control Unit
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911340354
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat CDB02.1B-ET-EC-EC-EM-S4-S4-NN-NN-FW is part of the CDB Control Units series and features Multi-Ethernet communication and 100Base-TX Ethernet physical layer. It offers 2 analog inputs and outputs at ±10 V, 14 digital inputs, and 8 configurable digital I/O. The unit is equipped with two Multi-Encoder interfaces, 4 probe inputs, and supports 2 safe motion axes.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat builds the CDB02.1B-ET-EC-EC-EM-S4-S4-NN-NN-FW as part of the CDB Control Units series. Installed on an IndraDrive power section, this control unit translates fieldbus commands, local I/O, and feedback signals into real-time velocity and position profiles for connected servo axes. By combining network communication, analog processing, and encoder handling on one board, it streamlines motion tasks in packaging lines, printing machines, and material-handling cells. The integrated layout keeps communication and feedback handling in the same control unit.
The controller communicates over Multi-Ethernet, while the copper link is carried by a 100Base-TX PHY that sustains deterministic 100 Mbit/s traffic. Two ±10 V analog inputs let PLCs forward process variables, and a matched pair of ±10 V analog outputs reproduce reference values with a resolution of 24 mV/incr. These analog channels let the unit exchange reference values with external controllers or process hardware. The unit also has 14 digital inputs for limit switches or mode selects, plus eight configurable DIO lines that can be assigned as sources or sinks. Four probe inputs timestamp fast-edge events for registration marks, and encoder feedback is accepted through 2 × Multi-Encoder interfaces that support EnDat, SSI, or incremental formats. An encoder-emulation channel lets downstream drives receive synthetic position signals, and the onboard relay handles inductive loads up to 1 A. The analog section draws only 2.7 W from the ET auxiliary supply.
Functional safety is embedded, and the unit supervises 2 safe motion axes while delivering diagnostics over the same fieldbus. Its safe low-side driver can source up to 350 mA for external contactors. Four optional slots accept expansion cards such as additional encoder channels or fieldbus adapters. Safety diagnostics remain available on the same network used for motion control, so status data does not require a separate interface. This allows interface functions to be added without increasing the panel footprint.
Frequently Asked Questions about CDB02.1B-ET-EC-EC-EM-S4-S4-NN-NN-FW:
Q: How many analog input channels are available on the CDB02.1B-ET-EC-EC-EM-S4-S4-NN-NN-FW control unit?
A: This unit provides two ±10 V analog input channels for external device interfacing.
Q: What is the analog output range and how many outputs are included on this model?
A: Two analog output channels with a ±10 V range are supported on this control unit.
Q: What communication option is provided for networking in this unit?
A: The CDB02.1B-ET-EC-EC-EM-S4-S4-NN-NN-FW supports Multi-Ethernet communication, allowing flexible network integration.
Q: How many digital inputs does this control unit include?
A: There are 14 digital input channels available, supporting a broad range of digital signal monitoring.
Q: What encoder interface options and features are available on this unit?
A: This model supports two Multi-Encoder interfaces and provides encoder emulation for versatile feedback handling.
