The Bosch Rexroth Indramat CDB01.1C-SE-ENS-ENS-MA1-MA1-NN-S-NN-FW belongs to the CDB Control Units series and features a standard control panel. The unit offers two encoder interfaces supporting IndraDyn, HIPERFACE, 1 Vpp, and TTL, and utilizes SERCOS 2 master communication with a Sercos data rate of 16 MBaud. It has two MA1 analog I/O modules with 12-bit resolution, each providing four input and four output channels.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

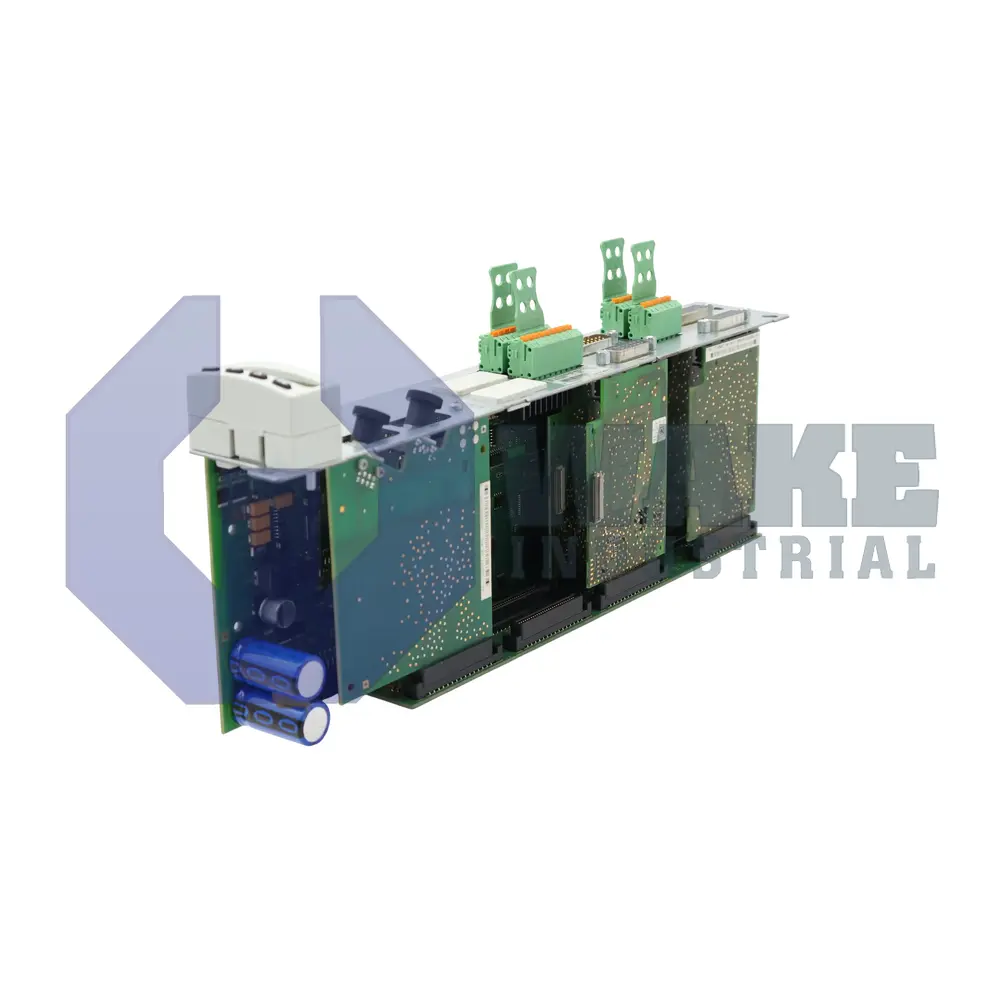

The CDB01.1C-SE-ENS-ENS-MA1-MA1-NN-S-NN-FW is a modular control section produced by Bosch Rexroth Indramat for use in the CDB Control Units series. Installed on an IndraDrive power section, this card orchestrates axis regulation, I/O processing, and high-speed network communication inside automated machinery. By combining motion commands, encoder feedback, and fieldbus data, the unit serves as the local intelligence so conveyors, packaging stations, or material-handling cells maintain precise speed, torque, and position profiles.
It houses 2 encoder interfaces that accept feedback over the IndraDyn/HIPERFACE/1 Vpp/TTL formats, letting the drive read incremental or absolute position signals without extra adapters. Each interface can deliver up to 500 mA at 12 V to power the attached transducer, eliminating separate supplies. Two MA1 analog I/O modules are fitted; together they present 4 inputs and 4 outputs, all converted at 12-bit resolution for setpoint, pressure, or temperature values that the drive can process in real time. The card therefore condenses motion control and analog process variables on one platform.
Mechanically, the board measures 322.6 mm in height, 49.5 mm in width, and 103 mm in depth, so it occupies a single slot in a standard IndraDrive rack while leaving clearance for airflow. Communication with the drive stack uses SERCOS 2 at a maximum bus speed of 16 MBaud, supporting deterministic cycle times when the control cabinet is densely populated. A built-in relay contact rated at 24 VDC, 1 A lets the controller switch external interlocks or status lamps, and the absence of an integrated safety option means external safety relays must be provided. The front carries the standard control panel for parameter entry and diagnostics.
Frequently Asked Questions about CDB01.1C-SE-ENS-ENS-MA1-MA1-NN-S-NN-FW:
Q: What type of control panel does the CDB01.1C-SE-ENS-ENS-MA1-MA1-NN-S-NN-FW use?
A: The CDB01.1C-SE-ENS-ENS-MA1-MA1-NN-S-NN-FW includes a standard control panel.
Q: How many encoder interfaces does the CDB01.1C-SE-ENS-ENS-MA1-MA1-NN-S-NN-FW provide and what types are supported?
A: This model features two encoder interfaces supporting IndraDyn, HIPERFACE, 1 Vpp, and TTL.
Q: What are the specifications of the MA1 analog I/O modules on this control unit?
A: There are two MA1 analog I/O modules, each with four input and four output channels at 12-bit resolution.
Q: What master communication protocol and data rate does the CDB01.1C-SE-ENS-ENS-MA1-MA1-NN-S-NN-FW utilize?
A: The control unit supports master communication via SERCOS 2 at a data rate of 16 MBaud.
Q: What supply voltage and current are provided per encoder interface on this model?
A: Each encoder can be supplied with 12 V and up to 500 mA of current.
