The Bosch Rexroth Indramat CDB01.1C-SE-ENS-ENS-EN2-MEM-NN-S-NN-FW is part of the CDB Control Units series and features SERCOS II control communication. It has 7 digital inputs, 4 digital outputs, 2 fast probe inputs, and supports both absolute and incremental encoder emulation. The unit offers auxiliary feedback of EnDat 2.1, 1 Vpp, and 5 V TTL, as well as primary feedback for 2 x IndraDyn, Hiperface, and 1 Vpp.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

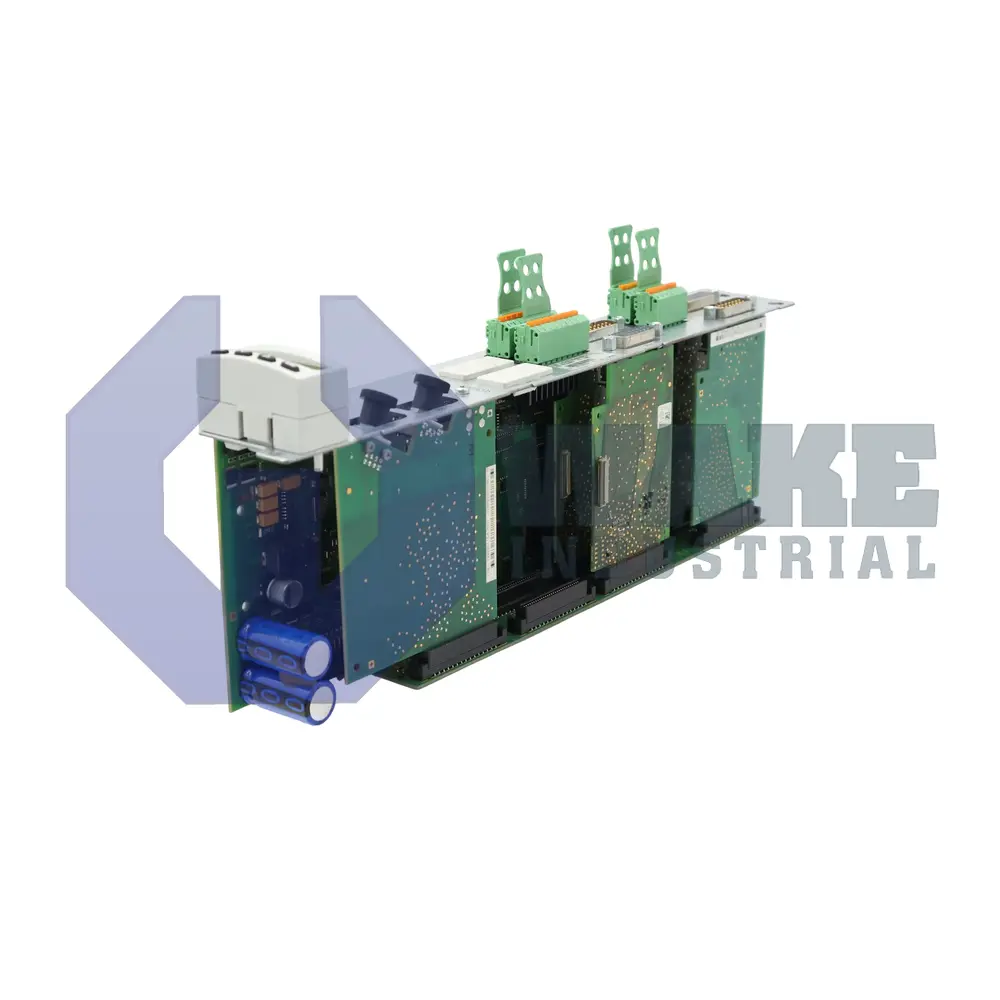

The CDB01.1C-SE-ENS-ENS-EN2-MEM-NN-S-NN-FW is a drive control section developed by Bosch Rexroth Indramat for the CDB Control Units series. Installed in modular inverters, the unit processes signals between motion controllers and power stages in industrial automation cells. It coordinates encoder data, fieldbus communication, and local I/O so servo axes receive timely torque and velocity commands. By housing both primary and auxiliary sensor interfaces on one board, the control section simplifies cabinet wiring and setup.
At the analog level, the board sources an output current of 1 mA or an output voltage of 5 V for test or trim points that need a low-power reference. Communication with the drive system uses SERCOS II, allowing cycle-synchronous data exchange with deterministic latency. The unit includes 7 digital inputs for opto-isolated discrete commands. Machine status can be propagated externally through 4 digital outputs. For edge-triggered measurements, the card offers 2 fast probe inputs; these channels are synchronized with the motion bus and support a memory-based capture stream that reaches 1 MHz. These real-time resources permit speed and position verification without external oscilloscopes.
Primary feedback ports accept dual IndraDyn, Hiperface, or 1 Vpp sin-cos encoders, while auxiliary feedback can read EnDat 2.1, TTL, or additional 1 Vpp devices, enabling mixed-sensor topologies within the same axis group. The unit provides no integrated safety functions. The internal encoder emulation outputs both absolute and incremental formats so legacy controllers remain supported. During oscilloscope mode, the probe circuit guarantees a minimum pulse width of 4 µs, and the onboard relay can switch control voltages up to 24 VDC / 1 A to actuate interlocks, brake releases, or status lamps.
Frequently Asked Questions about CDB01.1C-SE-ENS-ENS-EN2-MEM-NN-S-NN-FW:
Q: What is the maximum analog output current of CDB01.1C-SE-ENS-ENS-EN2-MEM-NN-S-NN-FW?
A: The CDB01.1C-SE-ENS-ENS-EN2-MEM-NN-S-NN-FW supports analog output currents up to 1 mA.
Q: How many digital inputs are available on the CDB01.1C-SE-ENS-ENS-EN2-MEM-NN-S-NN-FW?
A: This model allows for seven digital inputs to connect external devices or sensors.
Q: What types of primary feedback does the CDB01.1C-SE-ENS-ENS-EN2-MEM-NN-S-NN-FW support?
A: Primary feedback options for this unit include 2x IndraDyn, Hiperface, or 1 Vpp encoders.
Q: Which control communication protocol does the CDB01.1C-SE-ENS-ENS-EN2-MEM-NN-S-NN-FW utilize?
A: The control communication interface used by this unit is SERCOS II.
Q: What is the relay contact rating for the CDB01.1C-SE-ENS-ENS-EN2-MEM-NN-S-NN-FW?
A: Relay contacts on this model are rated at 24 VDC and 1 A for switching capabilities.
