CDB01.1C-SE-ENS-ENS-EN2-MA1-S2-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911330903
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
31 Seconds
The Bosch Rexroth Indramat CDB01.1C-SE-ENS-ENS-EN2-MA1-S2-S-NN-FW belongs to the CDB Control Units series and features two-axis control with SERCOS II communication. It offers Safe Motion safety technology, 9 W base power consumption, and supports 2 differential channel analog inputs and outputs at a 12-bit resolution.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

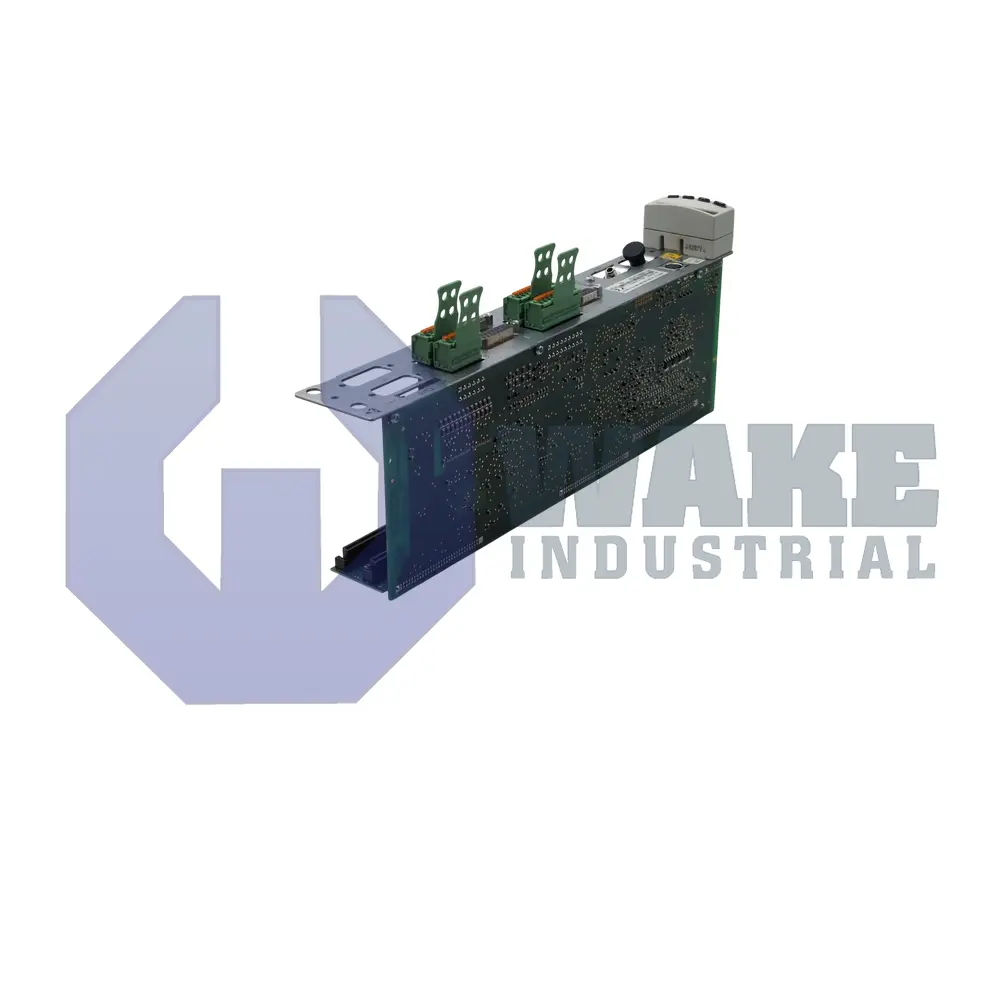

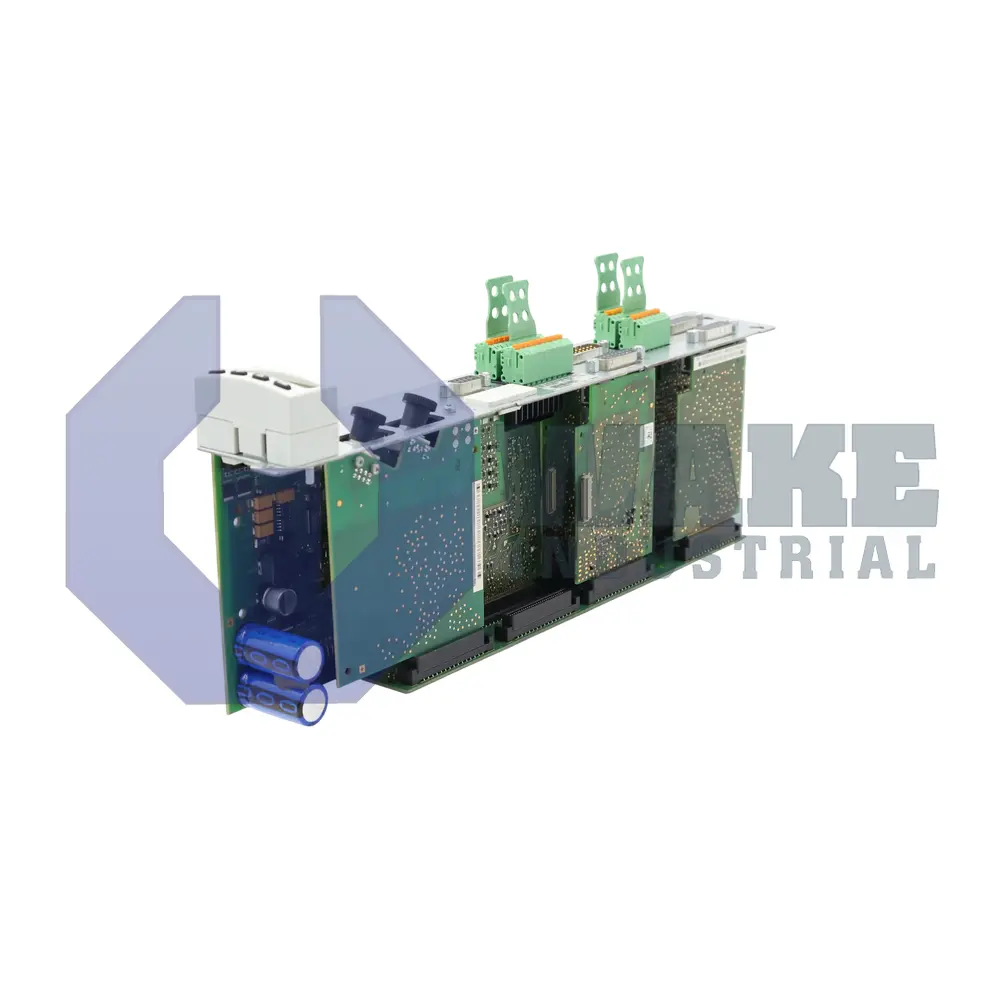

The industrial controller CDB01.1C-SE-ENS-ENS-EN2-MA1-S2-S-NN-FW is produced by Bosch Rexroth Indramat within the CDB Control Units series. It is a compact dual-axis control card that plugs into Rexroth power sections and coordinates servomotor movement in automated production lines. The card converts high-level commands from a PLC into precise position, velocity, and torque references, while simultaneously processing encoder signals so the attached drives maintain tight positional accuracy during synchronous or interpolated motion.
Axis control on this model is limited to 2 axes, each supervised through the real-time SERCOS II fiber-optic ring that carries setpoints, diagnostics, and drive parameter data. During idle operation the electronics draw only 9 W, which keeps cabinet temperature low, yet power-up demands are higher; an inrush of 6 A lasting 60 ms must be supplied by the control-voltage source. The board exposes two feedback sockets for 12 V ENS encoders and one for 5 V EN2 devices, identified collectively as 2× ENS and 1× EN2. These interfaces let the unit accept incremental or absolute position data without external adapters, ensuring closed-loop accuracy.
User I/O is handled through the MA1 option card. Two differential analog inputs operate on a ±10 V bipolar window, and two analog outputs share the same ±10 V range; all channels resolve motion commands at 12-bit resolution. Discrete outputs are arranged so that a group can source up to 1000 mA, while any single point is limited to 500 mA. The EN2 connector furnishes 5 V for TTL encoders, whereas each ENS port supplies 12 V for higher-power sensors. Integrated support for Safe Motion provides certified stop, speed, and position monitoring directly inside the control unit.
Frequently Asked Questions about CDB01.1C-SE-ENS-ENS-EN2-MA1-S2-S-NN-FW:
Q: How many axes can the CDB01.1C-SE-ENS-ENS-EN2-MA1-S2-S-NN-FW control?
A: The CDB01.1C-SE-ENS-ENS-EN2-MA1-S2-S-NN-FW is equipped to control two axes.
Q: What communication protocol does the CDB01.1C-SE-ENS-ENS-EN2-MA1-S2-S-NN-FW utilize?
A: This model uses SERCOS II for its control communication interface.
Q: What analog input and output options are available on this unit?
A: It features two differential analog input channels and two analog output channels, both supporting 10 V bipolar scaling.
Q: What is the digital output capacity per group and point on the CDB01.1C-SE-ENS-ENS-EN2-MA1-S2-S-NN-FW?
A: Digital outputs on this unit are rated at 1000 mA per group and 500 mA per point.
Q: What encoder supply voltages are supported by this model?
A: The encoded supply provides 12 V for ENS and 5 V for EN2 feedback interfaces.
