Product Description:

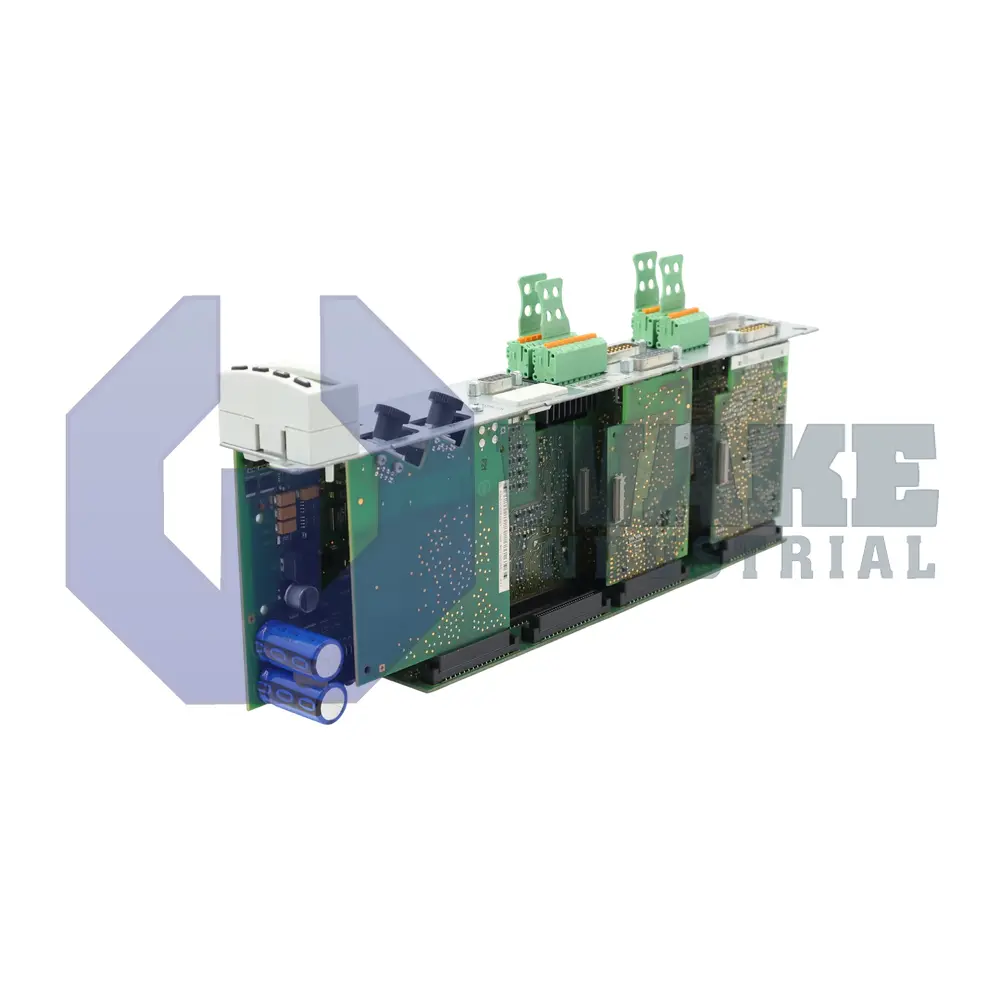

The CDB01.1C-SE-ENS-ENS-EN2-EN2-L2-S-NN-FW is a plug-in control unit from Bosch Rexroth Indramat in the CDB Control Units series. Installed in an IndraDrive power section, it supervises up to two servo axes, manages encoder feedback, and exchanges real-time data with higher-level PLCs. By coordinating motion commands, safety states, and local I/O, the card serves as a central control element in packaging, handling, and metal-forming systems where synchronized axis behavior is required.

This model supports 2 axes, allowing two drives to be controlled from the same hardware. Command and diagnostic traffic is routed through the deterministic SERCOS II fiber-optic bus, which helps maintain precise timing during motion control. The analog velocity or torque reference input presents an impedance of 160 kΩ, so external signal sources experience minimal loading. Four digital outputs are available, and each channel can source up to 24 V / 0.5 A for relays or indicator lamps without additional interface amplifiers. Machine safety is handled by the integrated Safe Torque Off function, which removes gate signals from the power stage when the STO circuit is activated and prevents motor torque without disconnecting the mains supply.

The unit provides 4 configurable I/O lines that can be assigned as command triggers, limit switches, or status indicators. A maintenance port using RS232 supports service access and parameter setup. For EnDat 2.2 or similar secondary feedback devices, the EN2 sockets supply 5 V at up to 200 mA. Primary feedback devices connect to two ENS channels that provide 11.6 V typical with a maximum current of 500 mA. Encoder connections follow the ENS / ENS / EN2 / EN2 arrangement, and two probe inputs capture position latches with microsecond accuracy. The front panel includes a single-line display for local parameter viewing, and Safe Torque Off wiring uses a D-Sub 9-Pin Female connector whose control line requires 24 V at 3 mA, while a feedback contact returns DC 24 V at 1 A to confirm de-energization.
