The Bosch Rexroth Indramat CDB01.1C-SE-ENS-EN2-NNN-MA1-NN-S-NN-FW is part of the CDB Control Units series. It supports SERCOS II control communication, features IndraDyn and HIPERFACE encoders for axis 1, and EnDat 2.1 and 5 V TTL for axis 2. The unit offers 2 differential analog inputs and 2 analog outputs at ±10 V with 12-bit resolution, and relay contact rating of 24 VDC at 1 Amp.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

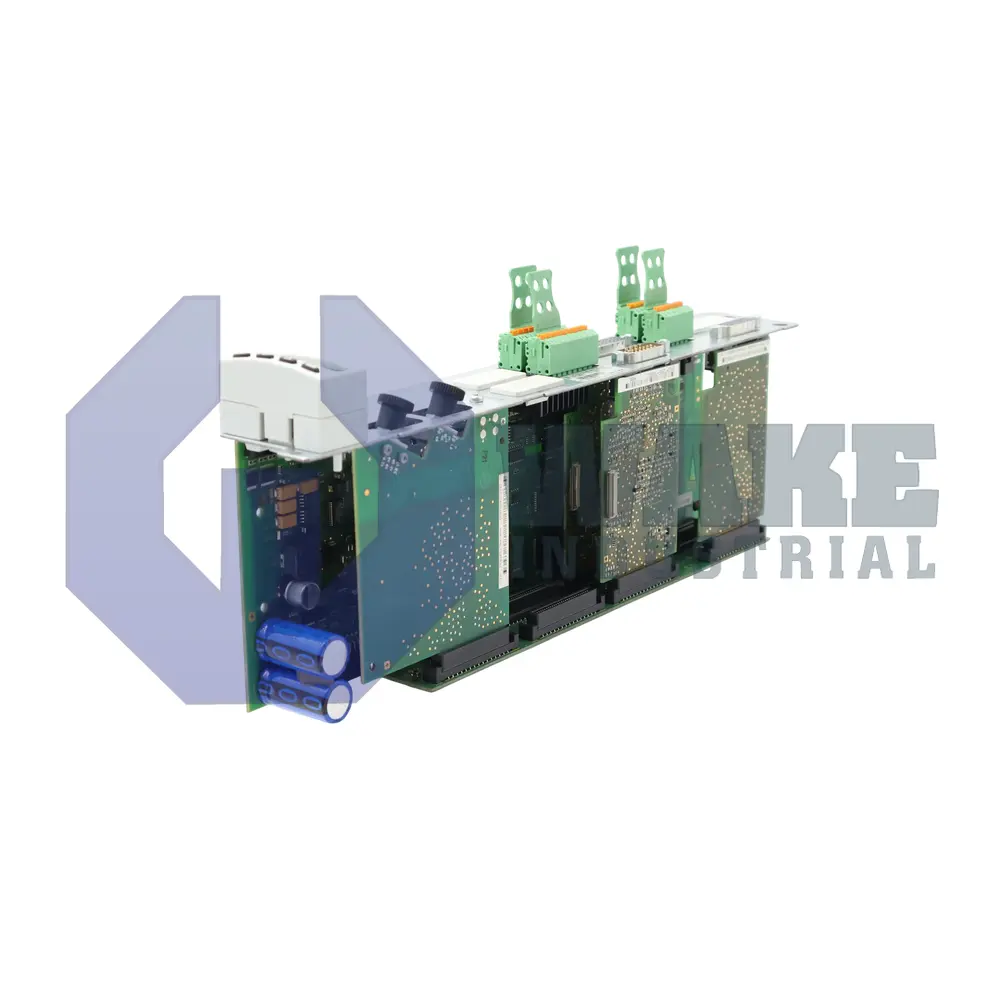

The CDB01.1C-SE-ENS-EN2-NNN-MA1-NN-S-NN-FW is a dual-axis control unit produced by Bosch Rexroth Indramat within the CDB Control Units series. Mounted on IndraDrive power sections, it supervises motion, feedback, and fieldbus exchange for servo or spindle axes in industrial automation. The board coordinates encoder evaluation, analog process variables, and network commands so that connected drives follow speed or position references with deterministic timing. Its two-axis layout allows one control unit to manage separate drive channels on the same platform without requiring a separate feedback processor for each axis.
Axis 1 accepts IndraDyn, HIPERFACE, and 1 Vpp feedback signals, while Axis 2 supports EnDat 2.1 together with incremental tracks so mixed motor types can be used in the same cabinet. Motion commands and parameter data move over the SERCOS II optical ring to keep multiple drives synchronized during coordinated operation. A 24 VDC logic supply keeps the control electronics active during main-power interruptions, and a standard control panel can be connected for local parameter setup. When direct service access is required, an RS232 port provides a point-to-point connection, and emergency stop functions must be handled by external circuitry.
Dedicated encoder supply rails support the connected feedback devices, and the Ens interface provides 11.6 VDC with a maximum current of 300 mA. The MA1 option card adds two differential analog inputs and two analog outputs rated at ±10 V, and each channel uses 12-bit resolution for process values that are exchanged outside the optical network. This allows the unit to handle analog reference and feedback signals alongside digital motion communication. A relay contact on the terminal strip can switch control loads up to 1 A, and two additional onboard analog outputs are available with a 1 mA sink-current limit.
Frequently Asked Questions about CDB01.1C-SE-ENS-EN2-NNN-MA1-NN-S-NN-FW:
Q: What control communication protocol does the CDB01.1C-SE-ENS-EN2-NNN-MA1-NN-S-NN-FW support?
A: This unit uses SERCOS II for control communication, ensuring high-speed and reliable data exchange with compatible automation systems.
Q: What are the specifications of the analog inputs on the Ma1 module?
A: The Ma1 module provides two differential analog inputs with a ±10 V range, supporting flexible signal integration for motion control.
Q: How many analog outputs are available on the Ma1 module and what is their range?
A: This control unit features two analog outputs from the Ma1 module, offering ±10 V output signals for precise actuator control.
Q: What voltage and current are available for the Ens encoder supply?
A: The Ens encoder supply delivers 11.6 VDC at a maximum current of 300 mA, supporting compatible encoders on the device.
Q: What is the relay contact rating on the CDB01.1C-SE-ENS-EN2-NNN-MA1-NN-S-NN-FW control unit?
A: Relay contacts on this unit are rated for 24 VDC operation at up to 1 A, allowing direct switching of low power loads.
