CDB01.1C-SE-ENS-EN2-NNN-EN2-NN-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911327233
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat CDB01.1C-SE-ENS-EN2-NNN-EN2-NN-S-NN-FW is part of the CDB Control Units series. It uses SERCOS II for control communication over a fiber optic medium and provides a serial interface through RS232. The unit features encoder interfaces such as IndraDyn, HIPERFACE, and EnDat 2.1, and has a base power consumption of 9 W.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

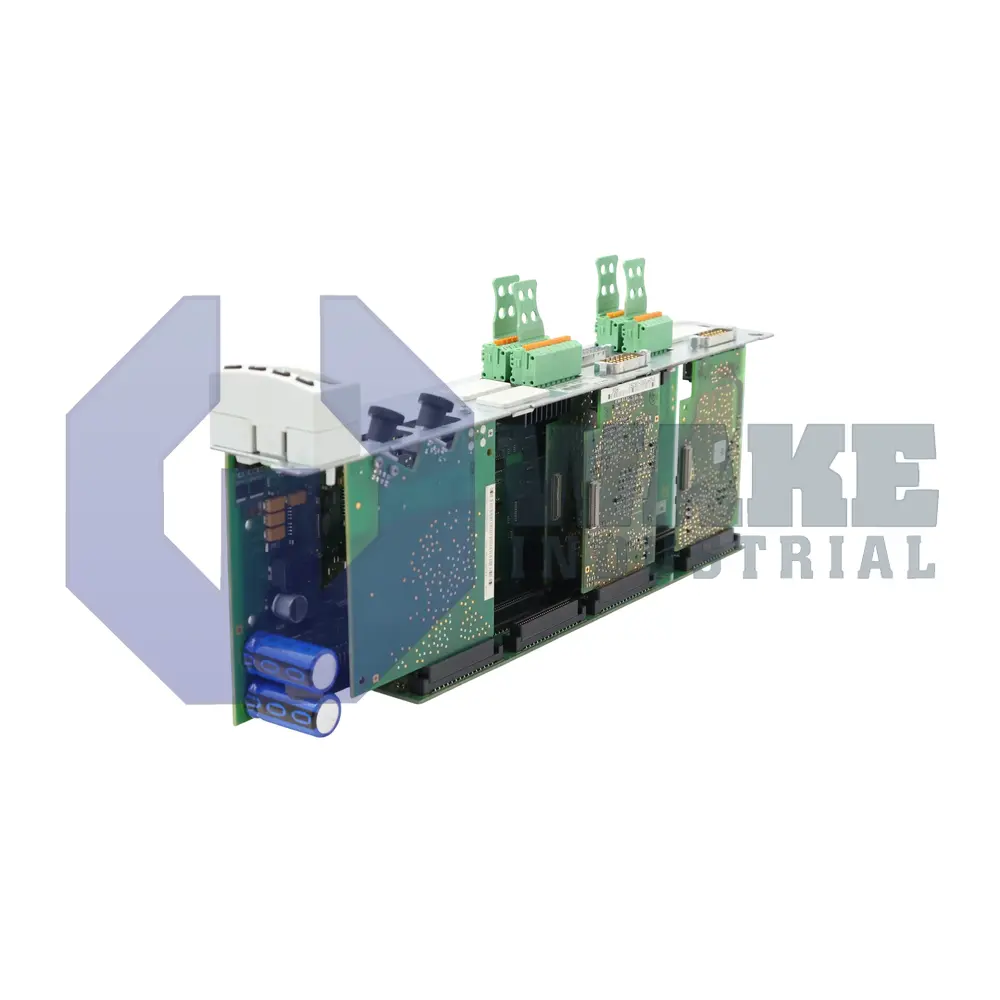

The CDB01.1C-SE-ENS-EN2-NNN-EN2-NN-S-NN-FW is a modular control unit delivered by Bosch Rexroth Indramat within the CDB Control Units series. As a plug-in controller card, it is fitted into the manufacturer’s drive system racks to coordinate servo axes and auxiliary components in automated machinery. Its purpose is to translate fieldbus commands into precise drive tasks, manage feedback from multiple encoder formats, and provide analog or digital signals necessary for closed-loop motion control.
During operation, the unit draws a base power of 9 W, so cabinet thermal planning can be kept minimal. At startup, it tolerates an inrush of 6 A, a figure that helps with circuit-breaker sizing. All real-time control telegrams travel over a fiber-optic link that supports the deterministic bandwidth required by SERCOS II. For setup or diagnostic scripting, a dedicated RS-232 port remains available. Two analog monitoring points exist. Output OA1 can source 1 mA or establish a 5 V reference, allowing drive variables to be displayed on external meters. Encoder Interface 1 accepts IndraDyn, HIPERFACE, or 1 Vpp signals, whereas Interfaces 2 and 4 each accommodate EnDat 2.1, 1 Vpp, or 5 V TTL feedback. The card limits each command strobe to a maximum pulse width of 60 ms, preventing unintended retriggering within a single control cycle.
Separate supply rails support secondary electronics. The EN2 logic is fed with 5.0 V and may deliver up to 350 mA to external encoders, while the ENS rail offers 11.6 V with a ceiling of 500 mA for sensors that require higher excitation. These stabilized lines simplify cable layouts by eliminating discrete power supplies near the motor. Safety technology is not integrated, so external safety relays are required if the application calls for them. The card’s fiber backbone coexists with its serial and analog channels without crosstalk, ensuring deterministic timing across multiple axes.
Frequently Asked Questions about CDB01.1C-SE-ENS-EN2-NNN-EN2-NN-S-NN-FW:
Q: What control communication protocol is used by the CDB01.1C-SE-ENS-EN2-NNN-EN2-NN-S-NN-FW?
A: The CDB01.1C-SE-ENS-EN2-NNN-EN2-NN-S-NN-FW supports SERCOS II as its control communication protocol.
Q: What type of communication medium does the CDB01.1C-SE-ENS-EN2-NNN-EN2-NN-S-NN-FW use?
A: A fiber optic connection serves as the primary communication medium on this control unit.
Q: Which encoder interfaces are available on the CDB01.1C-SE-ENS-EN2-NNN-EN2-NN-S-NN-FW?
A: This unit features multiple encoder interfaces including IndraDyn, HIPERFACE, 1 Vpp, and EnDat 2.1 with both 1 Vpp and 5 V TTL options.
Q: What is the analog output voltage of O A 1 on the CDB01.1C-SE-ENS-EN2-NNN-EN2-NN-S-NN-FW?
A: The analog output voltage for O A 1 on this model is rated at 5 V.
Q: Is the CDB01.1C-SE-ENS-EN2-NNN-EN2-NN-S-NN-FW equipped with safety technology?
A: This unit does not come equipped with safety technology features.
