Product Description:

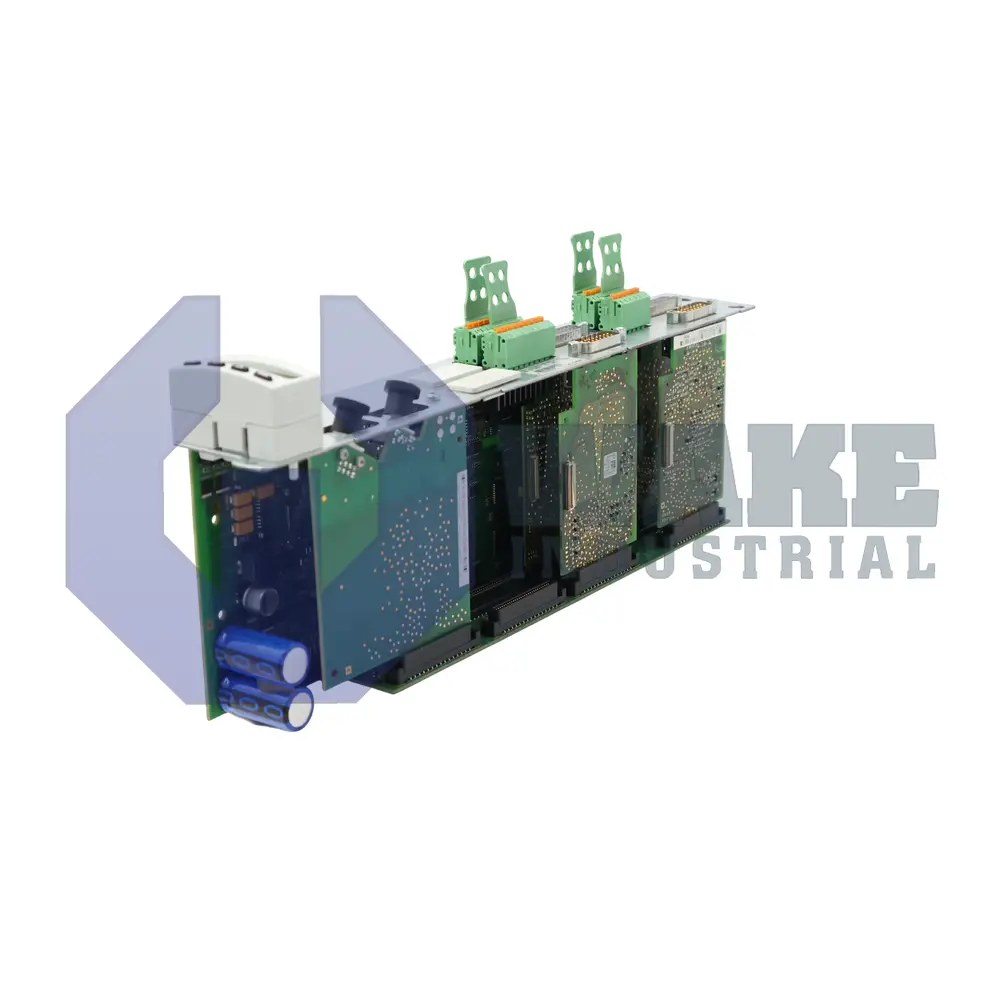

The CDB01.1C-SE-ENS-EN2-EN2-EN2-NN-S-NN-FW is a modular control section from Bosch Rexroth Indramat in the CDB Control Units series. Designed for drive-based automation, the unit plugs into a compatible power section and manages motion tasks for two servo axes, exchanging setpoint, feedback, and diagnostic data with the plant controller. In industrial automation lines, it handles position, velocity, and torque loops so downstream mechanical elements follow programmed trajectories.

This control section governs 2 axes and maintains torque and current loops at a cycle time of 125 µs, allowing fine resolution of dynamic profiles. Motion commands arrive over the SERCOS II fiber-optic interface, whose minimum telegram period is 1000 µs, so the device can synchronize with upstream PLCs at millisecond intervals. Position feedback reaches the controller through a mixed encoder backplane that offers 1×ENS + 3×EN2 ports, and the EN2 channels accept EnDat 2.1, 1 Vpp, or 5 V TTL formats. For analog process integration, the board provides one input channel and two outputs, and each output can source up to 1 mA for command tracking by external regulators.

Voltage-mode analog outputs are factory-scaled to 5 V, giving consistent reference levels for drives that expect low-impedance signals. The two high-side digital outputs deliver up to 500 mA of combined current for actuating brakes or contactors, while a form-A relay supports loads up to 30 VDC, 1 A on isolated circuits. Service access is enabled through an RS232 serial port that permits parameter backup and local setup without disturbing the real-time SERCOS channel. Two probe inputs of Type 2 and two of Type 3 capture fast position marks, and the single normally open relay contact complements the onboard logic for interlocked machine functions.
