The Bosch Rexroth Indramat CDB01.1C-SE-ENS-EN1-NNN-NNN-NN-S-NN-FW is part of the CDB Control Units series, featuring both analog inputs with a ±10 V range and analog outputs rated at 5 V and 1 mA. It includes 4 combined digital I/O channels with a supply of 24 VDC, a SERCOS master communication interface, and a standard control panel.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

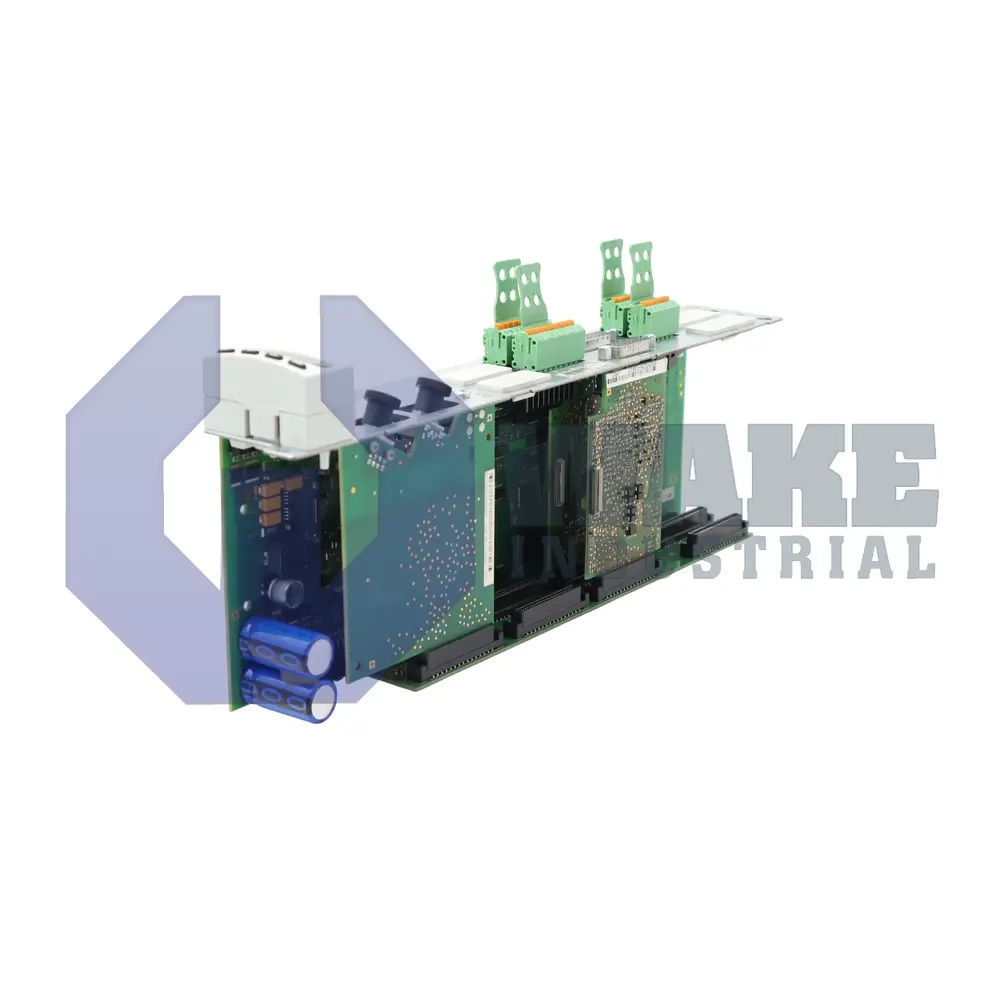

The CDB01.1C-SE-ENS-EN1-NNN-NNN-NN-S-NN-FW is a modular control unit from the CDB Control Units series produced by Bosch Rexroth Indramat. It mounts in an IndraDrive power section and serves as the local automation interface, translating sensor, encoder, and network signals into drive commands for servo or induction motors. This arrangement lets the drive exchange control data and feedback without separate interface cards for common machine functions. By combining analog, digital, and serial connections on one board, the unit reduces cabinet wiring and supports compact multi-axis machine layouts.
The unit provides an analog input range of ±10 V, allowing symmetrical process signals such as torque or velocity setpoints to be read directly. Input impedance is rated at 160 kOhm, so high-impedance sources see very little loading. One buffered analog output supplies 5 V, 1 mA for tasks such as sending speed feedback to a PLC. The digital terminals are arranged as 4 combined I/O, and each channel can be set as an input or output through parameters. When used as outputs, the channels can supply up to 1.1 A max, which is suitable for contactor coils or indicator lamps without external relays. The same terminals accept a 24 VDC logic supply that powers the digital ports, and the control panel uses the standard layout with membrane keys for drive enable, fault reset, and parameter navigation.
Fieldbus communication with the motion controller runs over a SERCOS interface, while point-to-point diagnostics can be handled through the embedded RS-232 serial port. The X4.1 encoder socket supports IndraDyn or Hiperface sin/cos feedback, and X4.2 accepts HSF or RSF incremental encoders. These encoder connections let the unit work with different feedback formats used in compatible motor systems. Digital outputs are rated at 24 V, 0.5 A, and the control voltage is 24 VDC. Cabinet depth contribution is limited to 103 mm, while the total height is 322.6 mm, which helps the unit fit in low-profile enclosures. The X8.1 and X8.2 slots are not populated, and the board comes without a safety option, so STO or SS1 functions must be handled by external safety control.
Frequently Asked Questions about CDB01.1C-SE-ENS-EN1-NNN-NNN-NN-S-NN-FW:
Q: What is the analog input range on the CDB01.1C-SE-ENS-EN1-NNN-NNN-NN-S-NN-FW control unit?
A: The CDB01.1C-SE-ENS-EN1-NNN-NNN-NN-S-NN-FW control unit has an analog input range of ±10 V, allowing compatibility with a variety of sensors and external devices.
Q: Which communication interface is used for master communication on this control unit?
A: This model supports master communication via the SERCOS interface, facilitating high-speed, real-time data exchange.
Q: What is the supply voltage and maximum current for the digital I/O on the CDB01.1C-SE-ENS-EN1-NNN-NNN-NN-S-NN-FW?
A: The digital I/O channels on this unit are rated for 24 VDC and can supply up to 1.1 A total current.
Q: Which type of serial interface does the CDB01.1C-SE-ENS-EN1-NNN-NNN-NN-S-NN-FW feature?
A: The serial interface available on this control unit is RS232, useful for direct connection to compatible devices.
Q: Does the CDB01.1C-SE-ENS-EN1-NNN-NNN-NN-S-NN-FW come with a safety option?
A: This model is provided without a safety option, so no integrated safety functions are included.
