The Bosch Rexroth Indramat CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW is a control unit from the CDB Control Units series. It supports Sercos II fiber optic communication at 16 MBaud and features two EN2 encoder interfaces, each capable of supplying 5V with support for EnDat2.1, 1Vpp, and 5V TTL encoder types. The unit offers analog outputs in the 0 to +5 V range at 8-bit resolution, along with ±10 V, 12-bit analog inputs and outputs.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

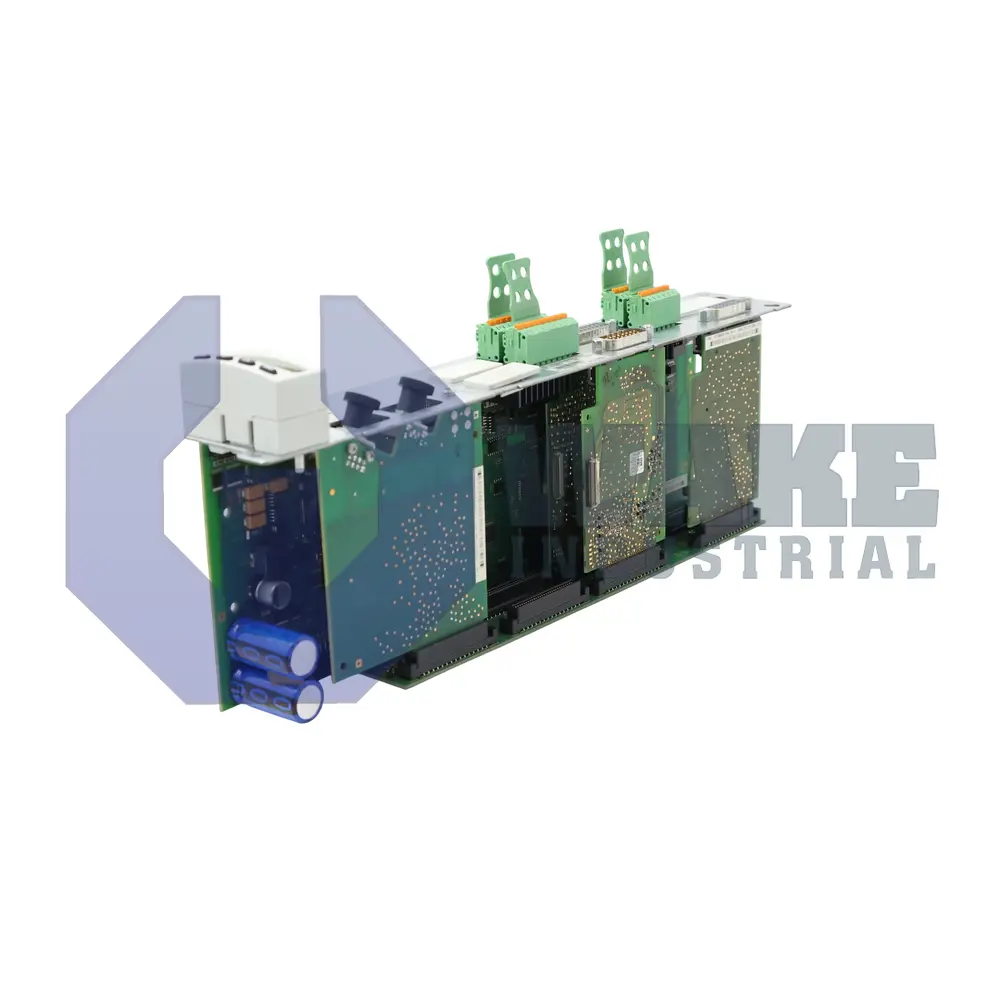

The CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW is a plug-in control section manufactured by Bosch Rexroth Indramat for the CDB Control Units series. Mounted on a compatible power section, it forms the command layer of an IndraDrive system by converting fieldbus messages and sensor feedback into precise drive commands. The board is used in automation cells where coordinated multi-axis positioning, velocity regulation, and analog reference handling are required for machinery such as pick-and-place gantries, packaging lines, and printing equipment.
Communication with the motion controller is handled through the Sercos II interface over a fiber-optic medium that operates at 16 MBaud, allowing deterministic exchange of position, control, and diagnostic data. Two EN2 encoder ports accept EnDat2.1, 1 Vpp, and 5 V TTL feedback formats, and each port filters differential sine signals up to 500 kHz while registering amplitudes between 0.8 and 1.2 Vpp. The section also provides one analog voltage channel with a range of 0 to +5 V at 8-bit resolution, while two additional MA1 channels supply analog references at 12-bit depth. The voltage input path withstands ±10 V and presents a 160 kΩ input resistance, which helps prevent overload on upstream control cards.
The internal electronics are powered from an auxiliary supply of DC 19 to 30 V and draw up to 1.1 A under full I/O load. A dedicated encoder rail outputs 5.0 V with a continuous delivery capability of 350 mA, providing stable power for attached incremental or absolute sensors. Separate analog channels allow the control section to process external speed-demand signals and command torque-mode inverters, while the paired feedback connections pass position data to the drive without additional splitter hardware. Twelve-bit conversion on the MA1 paths supports fine command granularity during closed-loop control.
Frequently Asked Questions about CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW:
Q: What analog output range does this CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW control unit support?
A: The CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW unit provides an analog output range of 0 to +5 V for external device control.
Q: What communication protocol and medium does the CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW use?
A: This model supports the Sercos II communication standard using a fiber optic medium for reliable data transfer.
Q: Which encoder types are compatible with the EN2 interfaces on this control unit?
A: The CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW is equipped with two EN2 encoder interfaces suitable for EnDat2.1, 1Vpp, and 5V TTL encoder types.
Q: What voltage input range and input resistance are specified for the analog inputs on the CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW?
A: This control unit accepts a voltage input range of ±10 V and offers an input resistance of 160 kΩ for its analog inputs.
Q: What is the Sercos communication rate supported by the CDB01.1C-SE-EN2-EN2-NNN-MA1-NN-S-NN-FW?
A: The Sercos interface on this unit operates at a data rate of 16 MBaud for high-speed motion control.
