CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911318144
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
37 Seconds

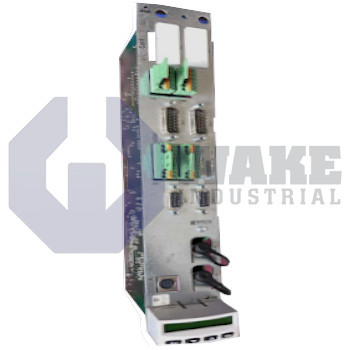

The Bosch Rexroth Indramat CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW is part of the CDB Control Units series and features a SERCOS II control communication interface. It includes 2 differential analog input channels and 2 analog output channels with a ±10 V range and a 12-bit resolution. The unit supports 2 EnDat 2.1 encoder interfaces and operates on a DC supply voltage of 19 to 30 volts.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

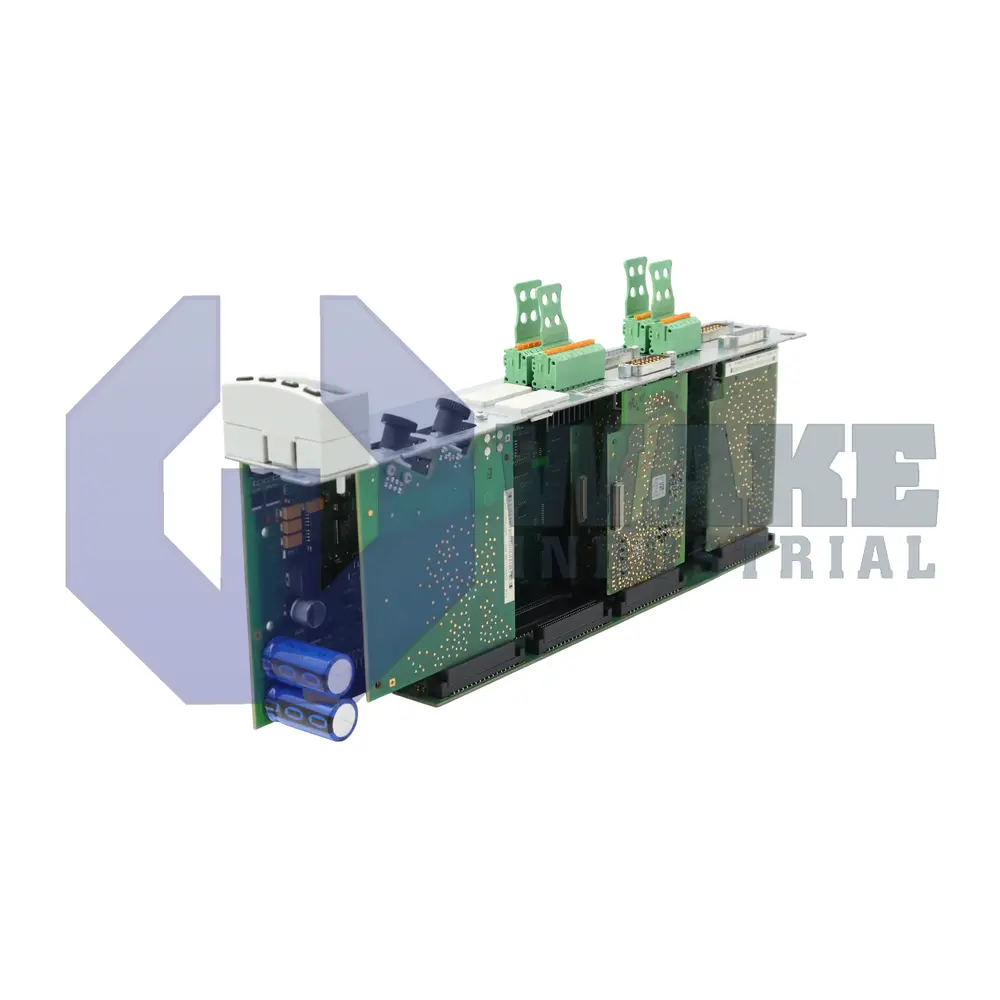

The CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW is a plug-in control section from the CDB Control Units series manufactured by Bosch Rexroth Indramat. Designed for installation inside IndraDrive modular inverters, this board coordinates drive functions, fieldbus communication, and local analog or encoder feedback in multi-axis automation. By translating high-level motion commands into precisely timed drive signals, it serves as the intermediate controller that links programmable logic controllers to servo or spindle amplifiers used on packaging, printing, and material-handling equipment. Its layout supports coordinated motion tasks in which command timing, feedback processing, and network communication must remain aligned across several axes.
The analog interface accepts input swings up to ±10 V, allowing direct connection to standard process transducers or velocity setpoints. Signals are digitized with 12-bit resolution so the control electronics can resolve small command changes with stable response. Two analog input lines are provided as 2 differential pairs, and the board also generates two voltage outputs for reference feedback to external equipment. Motion commands and status data travel over the real-time fiber-optic network SERCOS II, giving deterministic cycle times in synchronized axis groups. For encoder supplies, an onboard regulator delivers 5.0 V to EnDat 2.1, 1 Vpp, or 5 V TTL feedback devices, eliminating the need for external power rails.
The encoder ports can source up to 350 mA, enough for dual high-resolution sensors while maintaining galvanic separation between internal and external grounds. Sense-guided feedback lines may be extended to a maximum of 75 m without degrading position accuracy when the correct cable is used. Auxiliary electronics on the card draw from the I/O bus, which must supply no more than 1.1 A at 19 to 30 V DC to maintain thermal limits. Current-generated analog outputs can drive loads down to 35 ohms, permitting direct actuation of proportional valves and similar devices. This arrangement lets the control section support both feedback handling and external signal interfacing from the same plug-in module.
Frequently Asked Questions about CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW:
Q: What is the analog I/O voltage range supported by the CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW control unit?
A: The CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW offers an analog I/O range of ±10 V, enabling compatibility with a variety of automation signals.
Q: How many analog input channels are available on the CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW?
A: This unit features two differential analog input channels for flexible input signal acquisition.
Q: Which control communication protocol does the CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW utilize?
A: Control communication on this model is handled via SERCOS II, providing integrated real-time data exchange.
Q: What encoder interfaces are available on the CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW control unit?
A: The CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW supports two encoder interfaces: EnDat 2.1, 1 Vpp, and 5 V TTL.
Q: What type of emulation isolation does the CDB01.1C-SE-EN2-EN2-MEM-MA1-NN-S-NN-FW feature?
A: Galvanic isolation is used for emulation isolation in this model, minimizing interference between circuits.
