The Bosch Rexroth Indramat CDB01.1C-SE-EN1-EN1-NNN-MA1-S1-S-NN-FW is a control unit from the CDB Control Units series. It supports two control axes with Sercos II communication, and includes two 12-bit analog inputs and two 12-bit analog outputs with a ±10 V range. The unit features seven safety inputs, three safety outputs rated at 24 V / 0.5 A, and a safety relay rated at 24 V / 1 A.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

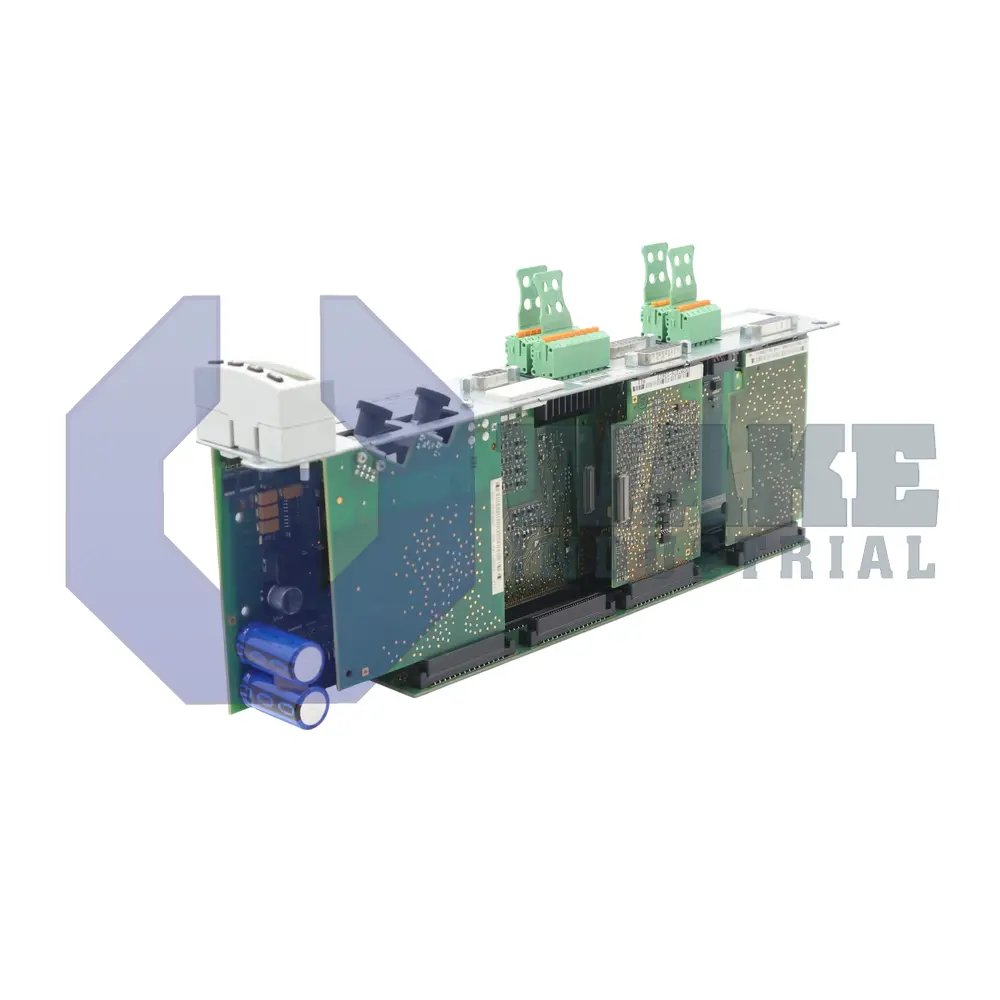

The CDB01.1C-SE-EN1-EN1-NNN-MA1-S1-S-NN-FW control section is manufactured by Bosch Rexroth Indramat for the CDB Control Units series. Serving as the command layer inside an IndraDrive modular system, the unit supervises up to two servo axes, distributes feedback signals, and relays data to higher-level automation controllers. By combining real-time communication, analog expansion, and integrated safety channels in a single plug-in assembly, the product streamlines panel layouts and reduces wiring in industrial automation cells. Its role is centered on coordination and signal handling, so the drive can manage motion feedback, command exchange, and safety-related functions from one control section.
Motion and feedback data are exchanged over the SERCOS II optical bus, allowing deterministic synchronization between drives and CNC or PLC hosts. The board handles 2 control axes, and each axis is supported by two incremental or serial encoder channels with 12-bit A/D conversion for precise position capture. Sensor power is provided at 8 V DC, which removes the need for a separate supply in many encoder arrangements. A high-speed trigger input supports signals up to 100 kHz for fast probe tasks. The MA1 analog module adds two differential inputs and two outputs that operate within a ±10 V range, so external velocity or torque commands can be connected directly without extra signal conditioning hardware.
A resolver interface supplies 18.2 Vpp excitation, which supports hybrid feedback arrangements in applications where optical encoder use is less practical. Functional safety is supported through 7 safety inputs, while semiconductor outputs at 24 V / 0.5 A can be used for actuator muting or status indication. An onboard relay provides a switching capacity of 24 V / 1 A for hard contactor control. This combination allows the control unit to support safe stop, guard door, and emergency stop circuits while remaining compact within the drive stack. The separation of motion control functions and safety signaling also helps keep system connections organized inside modular drive cabinets.
Frequently Asked Questions about CDB01.1C-SE-EN1-EN1-NNN-MA1-S1-S-NN-FW:
Q: What communication protocol does the CDB01.1C-SE-EN1-EN1-NNN-MA1-S1-S-NN-FW control unit use?
A: The CDB01.1C-SE-EN1-EN1-NNN-MA1-S1-S-NN-FW supports Sercos II communication for network integration.
Q: How many control axes does the CDB01.1C-SE-EN1-EN1-NNN-MA1-S1-S-NN-FW support?
A: This model allows the control of up to 2 axes simultaneously.
Q: How many analog inputs and outputs does the MA1 module on this control unit supply and what is their voltage range?
A: It provides two MA1 analog inputs and two analog outputs, both with a ±10 V range.
Q: How many safety inputs and outputs are available on the CDB01.1C-SE-EN1-EN1-NNN-MA1-S1-S-NN-FW?
A: The safety system features 7 safety inputs and 3 safety outputs for fail-safe operation.
Q: How many encoder channels are provided by this control unit and what is their A/D resolution?
A: The unit is equipped with two encoder channels, each capable of 12-bit A/D conversion.
