CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911311177
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW control unit is manufactured by Bosch Rexroth Indramat. The unit utilizes SERCOS Interface as its form of master communication, and it is equipped with various interface options including Encoder HSF/RSF and Encoder Indradyn/Hiperface/1 Vpp/TLL.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

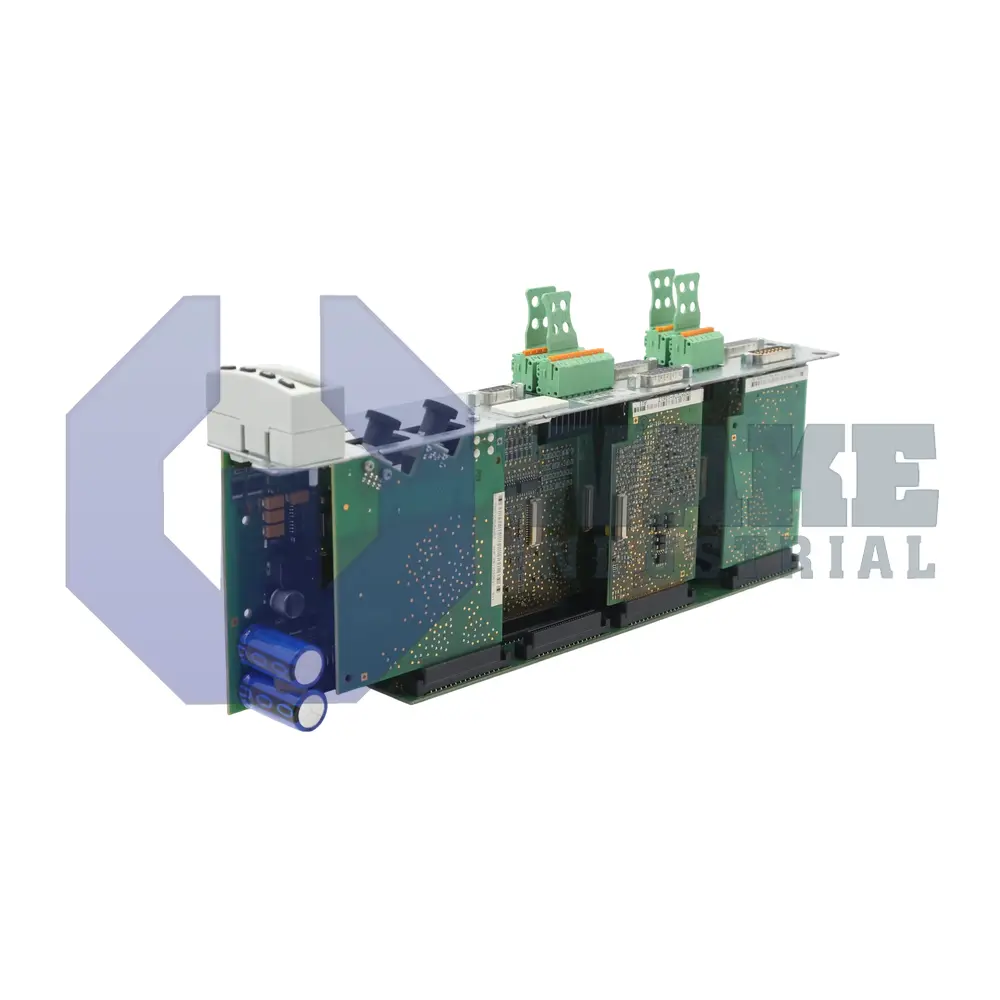

The CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW is a Bosch CDB series basic universal control section. It is configurable and only compatible with a standard control panel. The unit is deployed for applications that involve motor control. It has five slots for optional modules and all are occupied. Slot 5 is the slot for a safety module and includes a pre-installed module that supports safety technology I/O. Slot 4 features a pre-installed encoder EnDat 2.1 module. Slot 3 features a pre-installed encoder IndraDyn module. Slot 2 and slot 1 feature a pre-installed encoder HSF / RSF module. The CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW is supplied with a SERCOS master communication interface. The firmware for the device is ordered as a separate subposition. The power consumption of the control section consists of basic equipment power consumption and optional equipment power consumption.
The power section supplies 24 Volts DC to the CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW. The power is supplied via 24 Volts and 0 Volt terminal connectors. Basis equipment of the CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW draws 9 Watts power. Each of the installed encoder modules draw 6 Watts power. A control panel, if connected to the CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW, draws 1 Watts power and the SERCOS module draws 2 Watts power. Therefore the total power consumption of the CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW is approximately 36 Watts. The CDB01.1C-SE-EN1-EN1-ENS-EN2-S1-S-NN-FW relies on the flow of natural air for cooling. Any device that could prevent smooth air flow should be removed. Proper inter-device spacing should be ensured to prevent overheating. The control section is designed for 0 to 40 degrees Celsius ambient temperature. The device must be installed by trained personnel. Proper installation minimizes the probability of installation and wiring errors. Only approved accessories should be used with the control section. This product can be shipped globally with a one year warranty period from Wake Industrial.
