CCD01.1-KE09-02-FW

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911285523
  • Stock: Call for Quote
  • Call for Expedited Shipping and Product Condition Options
CCD01.1-KE09-02-FW Controller manufactured by Rexroth, Indramat, Bosch. This controller comes with 4 terminals that can house CLC-D02.3M-FW and DEA28.1M and operates with a power consumption of 1 W.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

CCD01.1-KE09-02-FW

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • MPN: R911285523
  • Stock: Call for Quote
  • Call for Expedited Shipping and Product Condition Options
CCD01.1-KE09-02-FW Controller manufactured by Rexroth, Indramat, Bosch. This controller comes with 4 terminals that can house CLC-D02.3M-FW and DEA28.1M and operates with a power consumption of 1 W.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a CCD01.1-KE09-02-FW to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

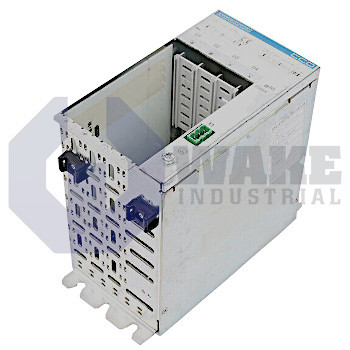

The CCD01.1-KE09-02-FW box terminal from Bosch Rexroth is used to house option cards. The box terminal has a compact size and robust design. The device has a version code of 1 and a design code of 1. The CCD series product supports cold technology cooling mechanism that allows it to be mounted into a small closed housing or control cabinet. It utilizes a SERCOS III interface for cross-communication. This interface adheres to IEE 802.3 standards. The key components of the box terminal comprise two RJ 45 style connectors, two yellow LEDs for data transmission status, and two green LEDs for network status.

This box terminal also includes four slots for inserting the option cards and an LED for power status. The two connectors have eight pins each. Only four pins feature functionality on each connector. There are two differential input connections and two differential output connections on each connector. The connection between the SERCOS III interface and the product is established through a cable compliant with CAT 5 standards. The CCD01.1-KE09-02-FW box terminal can be delivered to your address across the globe through well-known shipping agents like UPS and DHL.

The differential inputs and differential outputs of the product are used to transmit and receive 10/100 Base-T signals. The signals are received at pins 3 and 7 of each connector while they are transmitted through pins 1 and 2. The H10 and H12 LEDs light up in yellow during data transmission while the H13 and H11 LEDs are illuminated in green when a network link connection is available. The ability to support four different option cards simultaneously allows four tasks to be executed at a time. The box terminal is available from Wake Industrial with warranty support for a year.

CCD01.1-KE09-02-FW Documents

  • ccd01.1-ke09-02-fw
  • CCD011KE0902FW
  • CCDO1.1-KEO9-O2-FW

CCD01.1-KE09-02-FW Technical Specifications

Power Consumption: 1 W
Terminal U4: CLC-D02.3M-FW
Terminal U5: DEA28.1M
Terminals: X4
