Product Description:

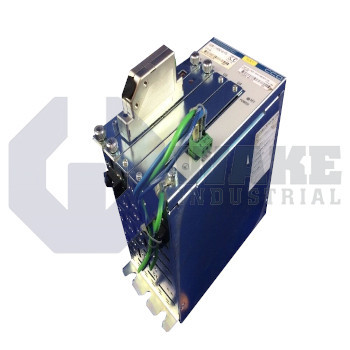

The CCD01.1-KE02-01-FW is a modular motion controller produced by Bosch Rexroth Indramat within the CCD Motion Controllers series. Installed in a Rexroth automation rack, it coordinates servo drives, monitors feedback loops, and issues deterministic I/O commands for machine tools, packaging lines, and material-handling axes. By combining high-speed serial links with discrete field wiring, the unit acts as the central command element that bridges logic sequences created in software with real-time motion executed on connected drives.

The controller draws control power from a backplane rail rated at 24 V, and the same voltage is provided on the field terminals to energize sensors through an isolated I/O supply. Parameter retention during power loss is handled by a replaceable CR2477N lithium cell that maintains a memory backup supply of 3 V. Fault codes and status words are presented on a 7-segment LED display, allowing quick troubleshooting without external tools. For machine interlocking and signal capture, the board offers 32 digital inputs; galvanic isolation is integrated so that field transients do not propagate onto the logic bus. Reverse-polarity shielding on every field terminal prevents damage if supply leads are wired incorrectly.

Output resources consist of 24 transistorized channels, each rated for a continuous sink or source of 80 mA and collectively safeguarded by a short-circuit threshold of 350 mA. Four plug-in slots accept optional communication or memory cards, while the integrated serial Port A supports asynchronous exchanges up to 38400 baud in the 8N1 format and can be switched between RS-232, RS-422, or RS-485 modes to match external devices. A hardware watchdog must be refreshed within 100 ms; if the interval is missed, all outputs are de-energized to bring motion to a controlled stop.
