Product Description:

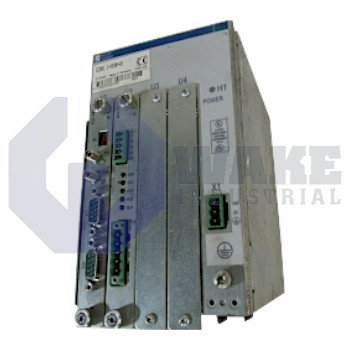

The CCD01.1-KE00-01 is a motion controller module in the CCD Motion Controllers series from Bosch Rexroth Indramat. Installed in cabinet racks, the device performs trajectory calculations and real-time interpolation so connected drives receive deterministic position commands. By separating high-speed axis control from plant-level PLC tasks, it helps improve cycle times and leaves the host controller available for broader machine logic. This arrangement suits packaging, printing, and material-handling lines that require synchronized axis motion.

Electrically, the unit communicates with the host automation CPU through the proprietary CLC-D link, which removes the need for an external gateway. It accepts unregulated DC and tolerates supply levels up to 32 V. Current draw changes with bus voltage and is 1.2 A at the low end of the operating range, 1.0 A at nominal supply, and 0.8 A at the upper end. These values show the expected load on the control power source at different input conditions. Internal monitoring watches the supply rails and can trigger a controlled stop if voltage moves outside the permitted range, helping protect stored program data and connected axes from uncontrolled motion.

Mechanical integration uses a plug-in rack format, so the module slides into the backplane without dedicated cables. DC power enters through connector X4, and the controller remains operational down to 18 V while using 24 V as its preferred supply. The rack provides 4 slots, which leaves space for additional motion control, fieldbus, or I/O cards in the same assembly. The compact slot count helps keep the backplane small, and front access allows adjacent hardware to remain in place when modules are inserted or removed. This layout reduces wiring complexity inside the cabinet and supports dense control configurations.
