BTV30.2PA-64R-10C-D-FW

Name: BTV30.2PA-64R-10C-D-FW
Brand: Bosch Rexroth Indramat
Price: 160 USD
Availability: InStock
Rating: 4.6 (25 reviews)

Rated 4.6 (25 total ratings)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: Not Found

Call for Availability

Current response time:

3 Minutes 13 Seconds

The BTV30.2PA-64R-10C-D-FW is a machine control terminal with a rated power of 30 kW and a control voltage of 24 V DC. Manufactured by Bosch Rexroth Indramat as part of the BTV30 Machine Control Terminals series, it features IP20 enclosure rating and SERCOS interface type. It includes Safe Torque Off (STO) and resolver/encoder feedback.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

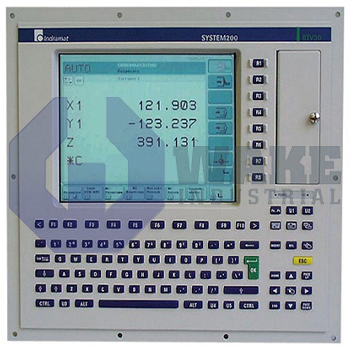

The BTV30.2PA-64R-10C-D-FW is a machine control terminal that features a 10.4-inch TFT color LCD, intended to provide high-resolution visibility for operators to support accurate control and monitoring operations. Manufactured by Bosch Rexroth Indramat, this terminal runs on a nominal connection voltage range of AC 115 to 230 V, providing versatility for different power infrastructures.

The nominal frequency of the BTV30.2PA-64R-10C-D-FW is rated at 50 to 60 Hz to provide reliable operation in typical global configurations. This terminal’s peak startup current is 30 A at 115 V and 60 A at 230 V under cold start at 25°C, so that the safe system boot is ensured even for load fluctuation conditions. The maximum power consumption of this control terminal is rated at 185 W, which represents its efficient power consumption without any loss of performance. With front panel sizes of 407 x 370 x 220 mm (W x H x D), this control terminal has a compact size, ideal for machine-level mounting. The front panel’s protection is IP65-rated to provide dust and water spray resistance, thus making it ideal for industrial areas with exposure to water or fine dust. The primary housing of the BTV30.2PA-64R-10C-D-FW terminal is rated IP20 according to DIN 40 050 and IEC 529, which is appropriate for protected cabinet enclosures.

This BTV30.2PA-64R-10C-D-FW terminal’s keyboard is built with an American (US) BOF layout to facilitate standard machine control setups. To provide improved operator interaction, this control terminal includes 8 machine function keys, located on the right-hand side for easy use in production operations. For storage and memory purposes, this terminal is supplied with 64 MB of RAM to support communication processes and real-time control software. This terminal has a 3.5-inch disk drive with 1.44 MB storage and a minimum hard disk drive of 3 GB for storing operational logs and control programs with efficiency.

BTV30.2PA-64R-10C-D-FW Technical Specifications

Nominal connecting voltage:	AC 115 to 230 V
Front plate protection class:	IP 65
Machine function keys:	8 Machine function keys, equipped on the right
Disk drive:	3.5", 1.44 MB mounted, mind. 3 GB HDD
Max. power consumption:	185 W
Keyboard type:	American (US) for BOF
Memory capacity (RAM):	64 MB
Housing protection class:	IP20; DIN 40 050, IEC 529
Dimensions with front panel:	407 x 370 x 220 mm (W x H x D)
Nominal frequency:	50 to 60 Hz
Display unit:	10.4" TFT color display
Max. startup current:	30/60 A at 115/230 VAC – cold start at 25° C
No. of slots:	10x ISA

Frequently Asked Questions about BTV30.2PA-64R-10C-D-FW

Q: How does the 10.4" TFT color display benefit machine operators?

A: It provides clear and sharp visuals, improving process monitoring and fault detection. Operators can easily view operational data and system alerts in real time.

Q: Why is the IP65 front plate protection important in the BTV30.2PA-64R-10C-D-FW?

A: It protects the front interface from dust and low-pressure water jets. This allows the terminal to be used safely in exposed or humid industrial environments.

Q: What is the advantage of having 10 ISA slots in this model?

A: The 10 ISA slots enable hardware customization by adding interface or I/O cards. This allows users to scale functionality based on application requirements.

Q: How does the 64 MB RAM affect system responsiveness in BTV30.2PA-64R-10C-D-FW?

A: It ensures smooth execution of machine control programs and user inputs. This memory supports stable multitasking for basic industrial applications.

Q: Why is the startup current specification crucial for industrial use?

A: High startup current capacity (30/60 A) allows reliable cold starts under varying loads. It ensures that the system powers up without tripping power protection devices.

Internal Product Review

‘‘The BTV30.2PA-64R-10C-D-FW is a reliable machine control terminal for automation tasks. It features a 10.4" TFT display, 64 MB RAM, and 10 ISA slots for expansion. This unit is commonly used in CNC machining centers, automated packaging systems, and robotic assembly lines.’’
