The Bosch Rexroth Indramat CFG-BTV15.2B-NN-NN is part of the BTV15 Visualization Terminals series and features an 8.2 inch display with a resolution of 640 x 480 pixels. It has a 5x86 processor at 266 MHz, 64 MB minimum work memory, and a 3 GB hard disk. The terminal supports 10 Base-T Ethernet, offers IP65 front protection, operates at 24 VDC supply voltage, and measures 318 mm in width, 230 mm in height, and 130 mm in depth.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

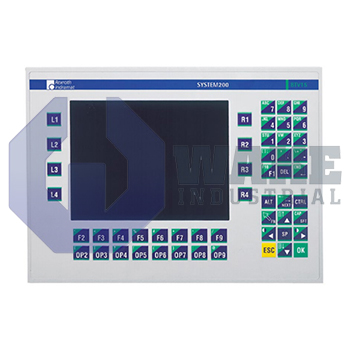

The CFG-BTV15.2B-NN-NN is an operator interface terminal manufactured by Bosch Rexroth Indramat within the BTV15 Visualization Terminals series. The unit combines a display, membrane keys, and embedded computing to present machine status and accept operator commands in an automation cell. When this terminal is mounted on the control cabinet, a PLC or drive system gains a dedicated visualization point that allows process data and alarms to be displayed locally without the need for a separate industrial PC.
Inside the enclosure, a 5x86 processor running at 266 MHz executes the runtime software, and the minimum 64 MB of work memory stores active projects, recipes, and variable tables during operation. Nonvolatile storage is provided by a 3 GB hard disk, which is large enough for operating system files, historical logs, and application data. Graphics are generated at a native 640 × 480 px resolution and shown on an 8.2 in backlit display, giving clear visibility for parameter pages and trend curves. The housing is 318 mm wide, 230 mm high, and 130 mm deep, so it can be flush mounted through a front panel up to 4 mm thick. Rear protection is rated at IP20, and heat dissipation reaches 24 W during typical operation and can rise to 40 W under maximum load.
The electronics are supplied from a 24 VDC control circuit, and overall power consumption does not exceed 50 VA, which matches common cabinet power budgets. A sealed membrane front with an IP65 rating resists dust and low-pressure water jets, so the terminal can be installed on machine fronts that are cleaned regularly. Communication with higher-level controls is handled through 10Base-T Ethernet and serial channels, allowing recipe downloads and diagnostic access without opening the cabinet. These features allow the terminal to integrate into machine control systems while supporting local operation and status display.
Frequently Asked Questions about CFG-BTV15.2B-NN-NN:
Q: What is the display size of the CFG-BTV15.2B-NN-NN terminal?
A: The CFG-BTV15.2B-NN-NN visualization terminal is equipped with an 8.2-inch display for process monitoring and control.
Q: How much storage capacity does the hard disk in the CFG-BTV15.2B-NN-NN provide?
A: This terminal features a 3 GB hard disk for data storage and operating system management.
Q: What Ethernet capability does the CFG-BTV15.2B-NN-NN offer?
A: The CFG-BTV15.2B-NN-NN supports 10 Base-T Ethernet connectivity for network communication.
Q: What level of front protection does the CFG-BTV15.2B-NN-NN terminal have?
A: This model offers IP 65 front protection, guarding against dust and water spray on its front panel.
Q: What type and speed of processor is included in the CFG-BTV15.2B-NN-NN?
A: The processor in this terminal is a 5x86 running at 266 MHz, providing the necessary computing power for industrial control applications.
