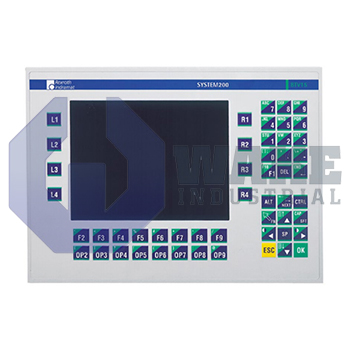

The Bosch Rexroth Indramat BTV15.2CA-64B-32D-N-FW is a visualization terminal in the BTV15 Visualization Terminals series. It features an 8.2 inch DSTN color display with a resolution of 640 x 480 pixels and 2 MB of graphic memory. The terminal operates at a nominal voltage of 24 VDC, offers 64 MB of work memory, and comes with IP65 front protection and IP20 housing protection.
Internal Product Review
The BTV15.2CA-64B-32D-N-FW is a visualization terminal that stands out as a capable HMI platform with a DSTN color display and 640 x 480 px resolution. A 5x86 266 MHz processor paired with 64 MB work memory supports responsive screen handling and dependable machine interaction. IP65 front protection adds solid shop-floor suitability and makes this terminal a strong choice for operator interface applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The BTV15.2CA-64B-32D-N-FW is a human-machine interface from Bosch Rexroth Indramat that belongs to the BTV15 Visualization Terminals series. Within an automation cell, it serves as the operator’s viewing and input point, linking programmable logic controllers with process equipment through its built-in communication ports. The panel integrates display electronics, a keyboard section, and low-voltage power circuitry so that status data, alarms, and command inputs are handled in a single enclosed unit. This layout allows machine information and user interaction to be managed from one front-mounted interface.
An 8.2 in DSTN color screen renders process graphics at 640 × 480 px, giving sufficient pixel density for machine diagnostics and parameter adjustment. The visualization software runs on a 5x86 266 MHz processor that is paired with 64 MB of work memory, allowing local execution of control dialogs and recipe handling. Graphic elements are buffered in a dedicated 2 MB frame store to keep refresh rates steady even when data traffic rises on the 10Base-T Ethernet port. Eight machine function keys sit below the display so frequently used commands can be reached without navigating onscreen menus. Typical heat dissipation is 24 W during normal runtime, rising only marginally until the 40 W maximum is reached under peak load. The local keypad supports direct access to routine operating functions during normal machine use.
Control electronics are supplied from a 24 VDC source, and the terminal draws up to 50 VA while providing a 24 V auxiliary output that can support 100 mA for sensors or backlights. Storage of system software and event logs is handled by a 3 GB hard disk, reducing reliance on a network server. The aluminum front panel carries an ingress rating of IP65, while the rear housing meets IP20 so it must be mounted inside a cabinet. The enclosure separates the protected operator-facing surface from the cabinet-side electronics, which helps suit fixed panel installation in industrial equipment.
