Product Description:

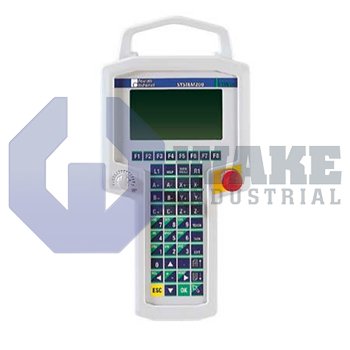

The BTC06.2A-F-EP3-FW/S002 is a handheld manual control unit produced by Bosch Rexroth Indramat for the BTC06 Manual Control Units series. It serves as a portable interface that lets users jog axes, adjust feed rates, and trigger safety functions directly at the machine. The device integrates an emergency-stop pushbutton, an enable trigger, and a graphic display so that motion commands and status information remain available without opening the main cabinet. This layout keeps local control close to the work area during setup and manual positioning.

The enable trigger uses a three-stage, dual-circuit button that allows the user to prepare, run, or immediately disable motion through sequential pressure stages. Visual feedback is provided on an LED-backlit display with a resolution of 240 x 128 pixels, ensuring clear graphics under typical factory lighting. Data exchange with the CNC or PLC is handled through RS-232C and RS-422A/RS-485 links, so the unit can be wired for either point-to-point or multi-drop communication. The sealed enclosure carries a protection rating of IP65, guarding the electronics against dust and low-pressure water jets. Internal electronics run from a 24 V DC supply that can vary between 20 V and 30 V without malfunction. Including the molded front handle, the overall dimensions are 315 x 180 x 57 mm, which keeps the unit portable while leaving room for the display and keypad.

A weight of 1.3 kg keeps the unit easy to carry while still giving the housing enough mass to feel stable in the hand. Reliable performance is maintained within an ambient range of 0 to +55 °C, which matches typical factory conditions. The casing is formed from polycarbonate, a material chosen for impact resistance and electrical insulation. A polyester-foil keyboard with 48 keys supports soft-key labeling on the screen, and an override potentiometer lets the user fine-tune feed or spindle speed without returning to the main control panel.
