Product Description:

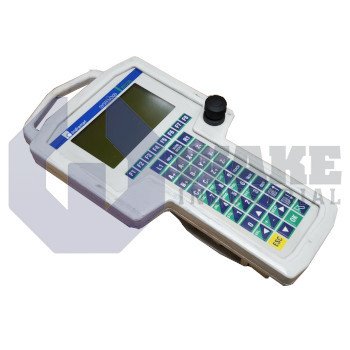

The BTC06.1A-N-EN3-FW handheld pendant is produced by Bosch Rexroth Indramat for the BTC06 Manual Control Units series. As a portable manual control unit, it gives operators direct access to jogging, program stepping, setup, and diagnostic functions at the machine instead of requiring a fixed control panel. Its polycarbonate housing and sealed keys make it suitable for machine tools, packaging cells, and robotic stations where fast, tactile interaction with drives and CNC axes is needed.

Electrical power is supplied through a stabilized 24 V (20 to 30 V) DC line, and status data are exchanged over RS-232C and RS-422A/RS-485 links for controller communication. Information is shown on a 240 x 128 pixel LCD display, while a polyester-foil keyboard with 48 keys supports numeric entry, axis selection, and soft-key functions. The polycarbonate body resists coolant splash, and the enclosure has an IP65 rating through molded connector seals and a continuous rear gasket. Its overall dimensions are 315 x 180 x 57 mm (363 x 180 x 57 mm with handle), which provides enough surface area for gloved operation. Functional safety includes a hard-wired emergency-stop and a three-stage dual-circuit enable button that distinguishes ready, run, and panic positions.

The display provides black-and-white graphics with LED backlighting, which helps maintain legibility under typical shop lighting while limiting current draw. With a mass of about 1.3 kg, the pendant can hang from a retractable cable without placing excessive stress on the strain relief. Operation is permitted from 0 to +55 °C, which matches common enclosure and machine-area temperatures. It belongs to Line 06 and design code 1, which keeps connector and layout compatibility within the series. A handwheel and an override potentiometer are not included, which helps keep the unit thinner and leaves analog inputs on the connected drive available for other feedback functions.
