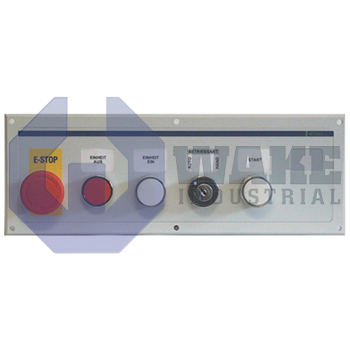

The Bosch Rexroth Indramat BTA05.2-AM is part of the BTA05 Machine Control Boards series and has dimensions of 318 x 112 x 67.5 mm with a basic color of RAL 7035 light grey. The control board features a front panel made from lacquered aluminum, an IP65 protection rating, and supports a keyboard layout with Auto, Machine, and Emergency-Stop functions. It includes TELEMECANIQUE ZB2 switch elements with various pushbuttons, a keyswitch, and a chemically resistant polyester foil surface.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The BTA05.2-AM operator panel is supplied by Bosch Rexroth Indramat and belongs to the BTA05 Machine Control Boards series. It is designed as a front-mounted human-machine interface for machine tools and other automated stations. It provides local emergency stop and mode selection so the controller can react immediately to line conditions.
The housing measures 318 × 112 × 67.5 mm and is finished in RAL 7035 Light Gray for visual consistency with standard enclosures. A protection rating of IP65 allows the board to resist dust ingress and direct water jets when it is sealed into a cabinet door. The front panel is fabricated from lacquered aluminum, supplying rigidity for the switch hardware, while the switch elements themselves are taken from the TELEMECANIQUE ZB2 series for consistency with other plant controls. Behind the metal face, six card slots are provided; five are already populated with interface circuitry, leaving one reserved for user expansion. The basic color layer is overlaid by a chemically resistant polyester foil that stops oils and coolants from attacking legends or switch apertures.
The keyboard matrix follows the Auto, Machine, Emergency Stop sequence so users can toggle between automatic and manual modes and trigger an immediate stop on the same panel. A chemically resistant polyester foil forms the tactile surface and shields the contact domes. Actuation heads are sized at 22.5 mm, matching common control-station cutouts. Internal backplanes accept a total of 6 slots, with the standard complement wiring S1 through S5: S1 is an emergency-stop twist switch with three normally closed contacts, S2 is a red pushbutton with one normally open and one normally closed contact, S3 and S5 are white illuminated pushbuttons that each have one normally open contact, and S4 is a key switch with one normally open and one normally closed contact, while the S6 position is left empty for optional functions.
Frequently Asked Questions about BTA05.2-AM:
Q: What series does the BTA05.2-AM machine control board belong to?
A: The BTA05.2-AM belongs to the BTA05 Machine Control Boards series.
Q: What is the protection rating of the BTA05.2-AM control panel?
A: This model features a protection rating of IP65 for resistance against dust and water ingress.
Q: What type and size of switch elements are used in the BTA05.2-AM?
A: The BTA05.2-AM uses TELEMECANIQUE ZB2 series switch elements with a size of 22.5 mm.
Q: What materials are used for the front surface of the BTA05.2-AM's panel?
A: The front panel surface is lacquered aluminum and topped with a chemically resistant polyester foil for durability.
Q: What is the keyboard layout on the BTA05.2-AM control board?
A: This control board features a keyboard layout that includes Auto, Machine, and Emergency-Stop keys, with dedicated switch configurations for each function.
