ADF132B-B05TA3-BS07-A2N1

  • Rated 4.8 (6 total ratings)
  • MPN: R911274857
  • Call for Expedited Shipping and Product Condition Options

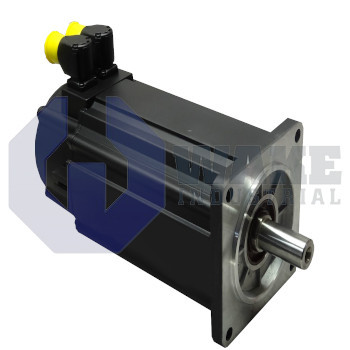

The ADF132B-B05TA3-BS07-A2N1 Main Spindle motor is a part of the ADF series manufactured by Bosch Rexroth. This motor operates with its Output Connector on Side A, Standard bearing, a Digital servo with integrated multiturn absolute encoder motor feedback type, and is Not Equipped with a holding break.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

ADF132B-B05TA3-BS07-A2N1

  • Rated 4.8 (6 total ratings)
  • MPN: R911274857
  • Call for Expedited Shipping and Product Condition Options
The ADF132B-B05TA3-BS07-A2N1 Main Spindle motor is a part of the ADF series manufactured by Bosch Rexroth. This motor operates with its Output Connector on Side A, Standard bearing, a Digital servo with integrated multiturn absolute encoder motor feedback type, and is Not Equipped with a holding break.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a ADF132B-B05TA3-BS07-A2N1 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The ADF132B-B05TA3-BS07-A2N1 is a spindle motor manufactured by Bosch Rexroth Indramat. It has a nominal power rating of 20 kW. When used with drive controllers, it features a wide range of speed and field weakening (1:6). The rotor position of the ADF132B-B05TA3-BS07-A2N1 is measured by the motor feedback, and the corresponding signal is sent to the drive. The functional resolution of this equipment is 1:2,000,000 revolutions. By design, ADF motor series are flange mounting.

The motor size of this equipment is 132 and length is B. Also, it has no holding brake.  According to DIN ISO 2373, the ADF132B-B05TA3-BS07-A2N1 is balanced dynamically and belongs to class R. The nominal speed rating of this equipment is 2000 rpm,and it has a RMS vibrational speed of 1.12 mm/s. The ADF132B-B05TA3-BS07-A2N1 cools with the aid of a liquid and for this reason, it can be operated at any altitude. The admissible coolant temperature is between 10 to 40 degrees, and the heat dissipation of this model is rated 2.2 kW. The mounting orientation of this ADF motor to the machine must be executed in accordance with DIN 42950. This equipment utilizes a digital servo feedback mechanism with an integrated multiturn absolute encoder. It features a plain output shaft with no sealing ring. Also, the ADF132B-B05TA3-BS07-A2N1 uses a standard bearing.

During the storage and transportation of this motor drive, the handling personnel must be aware of the guidelines provided by the manufacturer. Also, impact and dust colonies must be avoided to preserve the output shaft and the ADF132B-B05TA3-BS07-A2N1 unit as a whole. The permissible range for storage and transportation temperatures is between -25 oC to +85oC. This unit can be shipped globally with a one-year warranty period from Wake Industrial.

ADF132B-B05TA3-BS07-A2N1 Documents

  • ADF132BB05TA3BS07A2N1
  • adf132b-b05ta3-bs07-a2n1
  • ADF132B-BO5TA3-BSO7-A2N1

ADF132B-B05TA3-BS07-A2N1 Technical Specifications

Bearing: Standard
Holding Brake: Not Equipped
Motor Feedback: Digital servo with integrated multiturn absolute encoder
Output Connector: Side A
