Product Description:

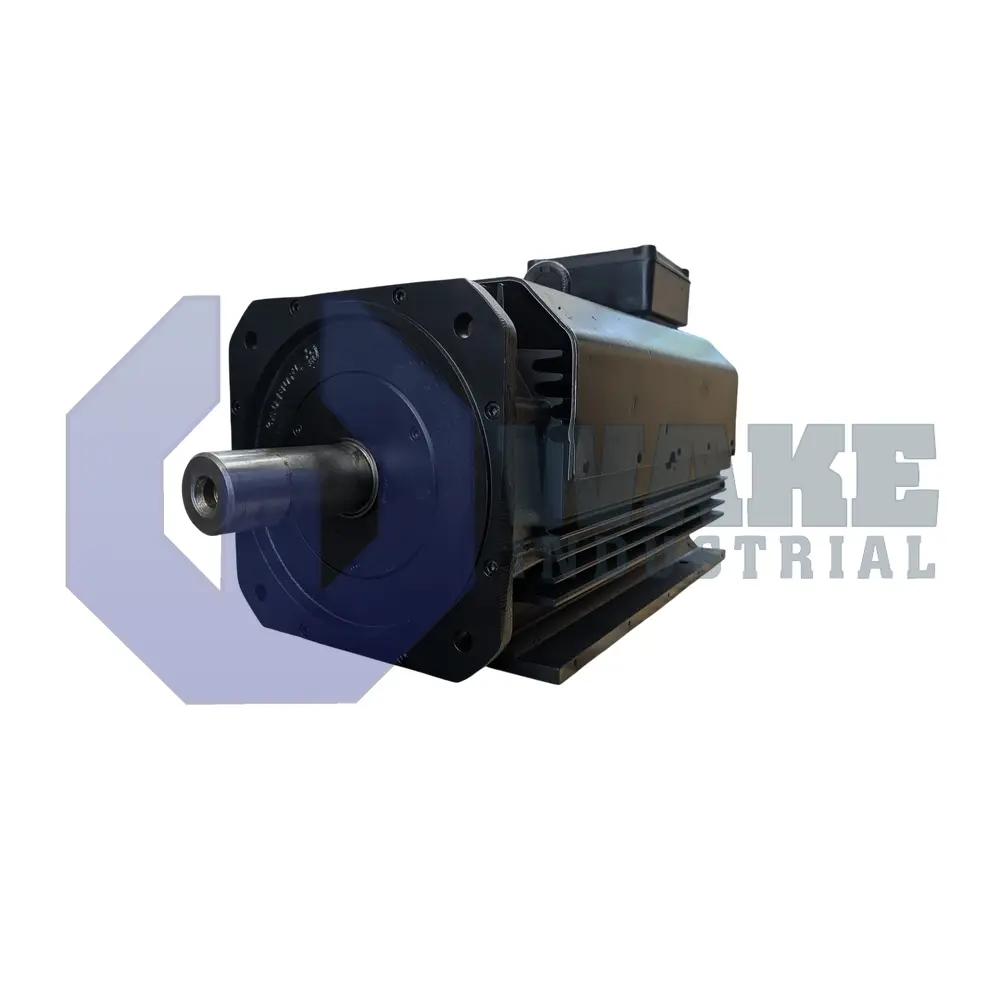

The 2AD180C-B35OB2-BS03-B2V1 is an AC induction motor produced by Bosch Rexroth Indramat in the 2AD 3-Phase Induction Motors series. In automated production lines, it converts three-phase electrical energy into rotational motion for tools, pumps, or material-handling stages that require constant torque and direct speed control. Its induction-motor design makes it suitable for duties where reliable continuous operation is more important than rapid servo-style positioning.

The motor uses heavy-duty bearings to carry elevated radial and axial loads that are common in belt or pinion drives. Cooling is provided by an integrated axial blower, which moves air along the stator so continuous-load operation is possible without external fans. Incoming power terminates inside a terminal box located on the top of the housing and oriented toward side B, which helps keep cables clear of the driven equipment. Frame designation 180 indicates the IEC mounting height, supporting dimensional compatibility with gearboxes sized for that standard. The motor is supplied without a holding brake, so stopping torque must be provided by another electrical or mechanical device.

Rotor position is tracked through high-resolution motor feedback, allowing the connected inverter to regulate speed and slip accurately under changing load. The motor uses flange and foot mounting, so either mounting surface can be selected to suit the machine layout. Stack length code C places the unit in the middle power range of the 180-frame family, balancing output capacity against overall size. Vibration grade R helps limit operating imbalance and supports the bearing system when the keyed shaft is coupled to external transmission elements. The BS winding adjusts stator resistance and leakage reactance so the motor can be matched correctly with compatible Indramat drives.
